Description

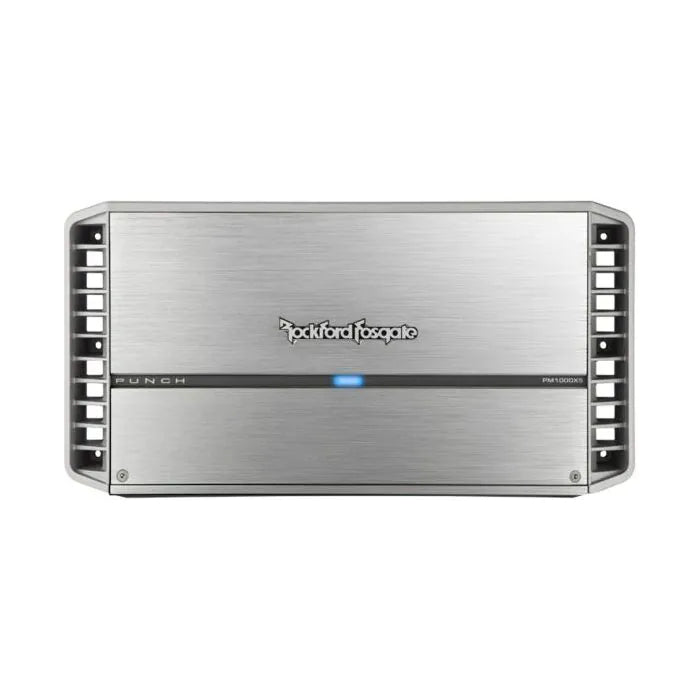

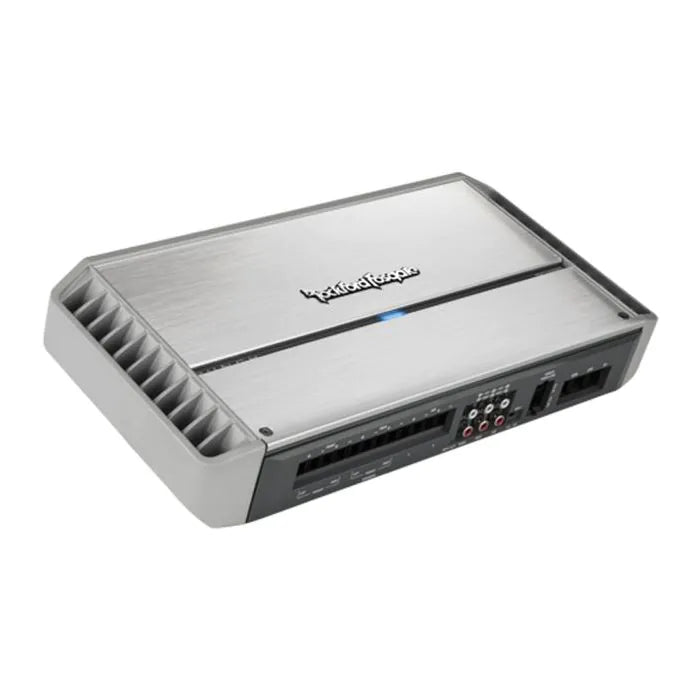

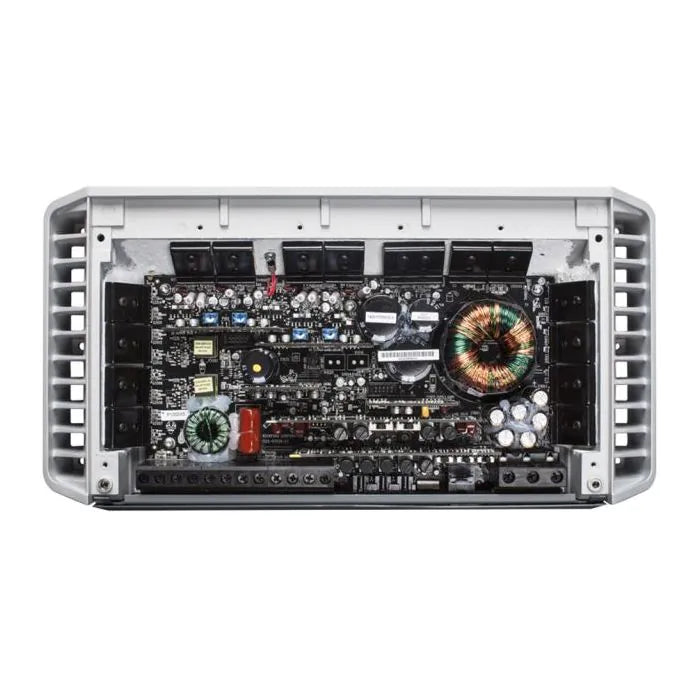

xThe PM1000X5 is a 1000 Watt 5-channel amplifier with high dynamic power using Class-a/b technology on the front/rear channels, Class-bd for the subwoofer channel, and a conformal coated pc board designed for motorsport and marine applications.
The PM1000X5 1,000 Watt full-range 5-channel is the one-and-only amplifier you will need to run your entire system. Run dash speakers off the front channels, run back speakers off the rear channels and run subwoofer(s) off the 5th channel! Known world-wide for brute power, this amplifier offers a higher level of efficiency along with a tri-stage protection that covers thermal, over-current and short circuits.
AT A GLANCE
- High level input capable with Auto Turn-On circuit
- 12dB/octave Butterworth crossover
- Features C.L.E.A.N. Set-up
- On-board Punch EQ with +18dB boost @ 45Hz
- Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
- Muted turn on
- Stealth top mounted control panel
- Short circuit protection
- Cast aluminum heatsink
- Over current protection
- Infrasonic filter
- 2/4 channel input switch
- Marine grade two part epoxy coating on circuit boards
- Marine grade stainless steel hardware
- 1-Year Warranty
- CEA-2006 Compliant: [CEA-2006 Guidelines] CEA-2006 Power Rating
- 75Wx4 + 150Wx1 @ 4Ω
- ≤1.0% THD+N
- Number of Channels: 5
- Rated Power
- (RMS Continuous Power):
- 75 Watts x 4 + 150 Watts x 1 @ 4-Ohm
- 125 Watts x 4 + 300 Watts x 1 @ 2-Ohm
- 500 Watts @ 1-Ohm
- Total Power
- (Sum of Rated Power):1000 Watts
- Dynamic Power
- (PVC/PowerCube®):
- 115 Watts x 4 +
- 299 Watts x 1 @ 4-Ohms 0° Res
- 190 Watts x 4 +
- 540 Watts x 1 @ 2-Ohms 0° Res
- 863 Watts x 1 @ 1-Ohm 0° Res
- Bridgeable: (front/rear channels)
- Frequency Response: Front/Rear: 20Hz - 20kHz +/-3dB
- Sub: 20Hz - 500Hz +/-3dB
- Efficiency (average): Front/Rear: 66% @ 4-Ohm
- Sub Channel: 80% @ 4-Ohm
- Total Harmonic Distortion (THD+Noise): <1.0%
- Crossover Controls: Front: 50Hz - 250Hz High-Pass @ 12dB/Octave
- Rear: 50Hz - 250Hz High-Pass @ 12dB/Octave
- Sub: 50Hz - 250Hz Low-Pass
- Sub: 28Hz infrasonic filter @ 12dB/Octave
- Tone Controls: Sub:
- 0dB to +18dB @ 45Hz
- Input Sensitivity: 150 mV - 12 V
- Signal Input: Input Switch: Hi/Low level input
- Input Switch: 2/4 channel input
- Hi/Low Level: 3 RCA Pair
- Sub: front/sub input switch
- Signal Output: -
- Power Input Connector: Block
- Power Wire Gauge: 4 AWG
- Speaker Output Connector: Block
- Speaker Wire Gauge: 12 AWG
- Heat Sink Type: Cast
- Cooling: Convection
- Remote Controls: Optional Punch Level Control (PLC2) Ready
- Visual Indicators: Power/Protect/Thermal LED
- Input Clip LED3
- Output Clip LED1,2,3
- LED Color Legend:
- 1BLUE: <0.5% THD
- 2VIOLET: 1% THD
- 3RED: 10%+ THD
- Circuit Topology Class: Front/Rear: Class-A/B
- Sub: Class-BD
- Operating Voltage: 9 - 16 VDC
- Recommended Fuse
- (not included): 150 A
- Max. Current Draw (13.8V Sinewave): 150 A
- Average Current Draw (13.8V Music): 75 A
- Suggested Alternator: 100 A
- Shipping Weight: 15.3 Lbs. (6.93 Kg.)
- Dimensions (H x W x D): 2.38 x 7.76 x 15.03 (in)
- 6.05 x 19.71 x 38.18 (cm)
