Description
xClass D Amplification - Experience the epitome of efficiency and power with Class D amplification, delivering unparalleled and precise sound reproduction.
3000 Watts RMS - Immerse yourself in a realm of unmatchable audio power with 3000 Watts RMS, delivering commanding and precise sound performance.
Precision Audio Control - The adjustable built-in crossover allows meticulous calibration of audio frequencies, optimizing speaker performance.
Customized Bass Enhancement - Elevate your low frequencies with the adjustable bass boost feature, delivering impactful and resonant bass notes.
Advanced Protection Measures - Equipped with protection circuitry, the amplifier safeguards against overheating and short circuits, ensuring durability.
Compact and Stylish Design - The amplifier's sleek design offers versatile installation options without compromising performance or aesthetics.
Engineered Excellence - Meticulously engineered for optimal audio precision, power efficiency, and steadfast operation.
POWER RATINGS
- RMS Power @ 4 Ohms @ 0.5% THD+N: 1350W
- RMS Power @ 2 Ohms @ 0.5% THD+N: 2100W
- RMS Power @ 1 Ohm @ 0.5% THD+N: 3000W
- Linked with identical Amplifier
- RMS Power @ 2 Ohms @ 0.5% THD+N: 6000W
POWER TERMINAL MANAGEMENT
- Positive Terminals: 3 x 0 AWG.
- Negative Terminals: 3 x 0 AWG.
- Remote Turn-ON Signal: 10 AWG.
- Speaker Output Terminals: 4 AWG.
SPECIFICATIONS
- Frequency Response: 10Hz - 300Hz
- Low Pass Crossover: 40Hz - 300Hz
- Supply Voltage: 9 - 16V
- Amplifier Efficiency: >88%
- Damping Factor: >200dB
- Signal to Noise Ratio: >90dB
- T.H.D. & Noise: 0.5%
- Input Impedance: 24K Ohms
- Phase Shift: 0 - 180
- Bass Boost: 0-18dB Variable
- Subsonic Filter: 10 - 40Hz
- Variable Input Level Control: 0.2V - 6.0V
- Fuses: 350A recommended (not included)
- Dimensions (L x W x H): 18.89" x 11.89" x 3.15" (480x302x80mm)
- All MOSFET Power Supply & Output Stage
- Heavy Gauge / High Current Custom Power and Speaker Terminals
- 12/24dB / Octave Low-Pass Filter

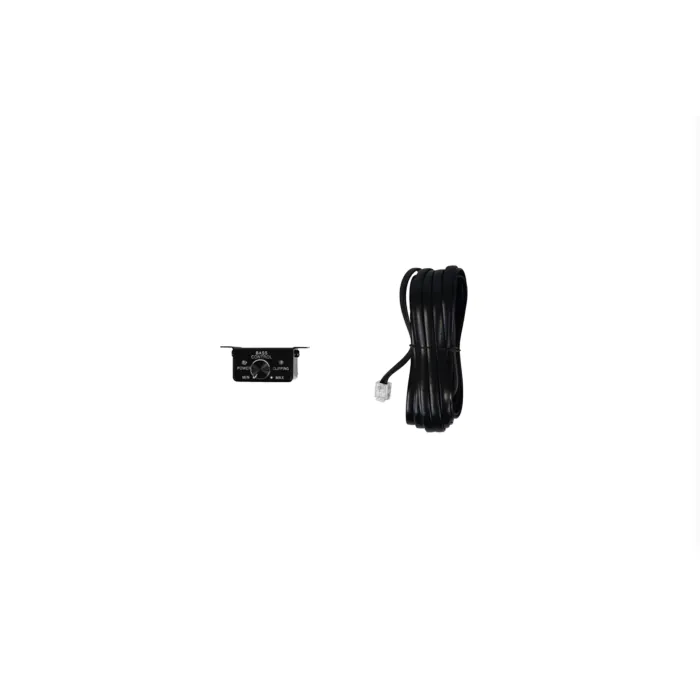

- Remote Gain Controller Included
- Low-Level and High-Level Balanced Input
- Infrasonic Filter
- Concealed Controls Under Locking Top Panel Orion Patented ESP®
- Digitally Programmed Input Voltage for Fast, Accurate System Setup
- Input Sensitivity Lock-Out Mode Lock the Tweekers Out!
- Turn-On Delay
- Fault and Protection Monitoring
- 4-Way Protection: Thermal, DC offset, Short Protection, under & over voltage
