Description

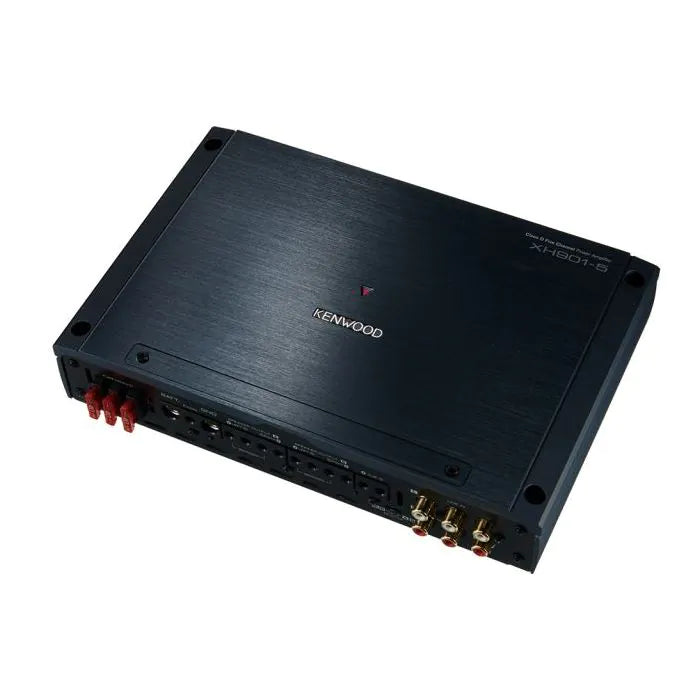

xHi-Res Audio Certified, Compact D-Class 5ch Amplifier, One-side Terminals for easy installation, Speaker Level Input with Signal Sensing Turn-on, Output Coil with Magnetic Shield. Faithfully reproducing the finely carved details from a Hi-Res Audio source, down to every last grain of sound. Portraying a rich sound that delivers a subtle ambience overflowing with presence and with no hint of muddiness, we have realized a mellow treble, vocals that convey every inflection of the original, and a full and incisive bass
- 5 Channel (A / B / Subwoofer)
- Class D power amplifier
- 60W x 4 + 400W x 1 RMS power output
- CEA-2006 compliant
- Hi-Res compliant
- Variable High-Pass Filter
- Variable Low-Pass Filter
- Speaker level input with signal sensing turn-on
- Cooling fan
- Wired remote included for Sub level control
Amplifier Features
- Class D Amplifier
- Load Capability 2Ω Stable
- Rated Power output 60W x 4 + 400W x 1 (4Ω)
- Rated Power Output 75W x 4 + 600W x 1 (2Ω)
- CEA-2006 Compliant
- Low-pass Filter
- High-pass Fliter
- Bass Boost Circuit
- Dual Sigma Drive
- Switched Mode Power supply
- Cooling Fan
- Signal Sensing Turn-on
- Protection function
- Line in 6 channel RCA (Gold Plated)
- Input Selector SUB/AB
- Speaker level input via line-in (RCA) A-ch & B-ch
- Single Side Terminals
- Die-Cast Aluminium Heat Sink
Amplifier-Specifications
- Rated power output (4Ω, 14,4V) 60W x 4 (20Hz ~ 20000Hz, 1%THD)
- Rated subwoofer power output (4Ω, 14,4V) 400 W (20Hz - 200Hz, 1% THD)
- Rated power output (2Ω, 14,4V) 75W x 4 (1000Hz, 1%THD)
- Rated subwoofer power output (2Ω, 14,4V) 600W (100Hz, 1% THD)
- Rated power output (CEA-2006)
- 60Watts RMS x 4 at 4 ohms and 1% THD
- Rated subwoofer power output (CEA-2006) 400W
- Low-pass Filter 50~200Hz (-12dB/oct)
- Low-pass filter (sub channel) 50Hz - 200Hz (12dB/oct)
- High-pass Fliter 50~200Hz & 2,5~10kHz (-12dB/oct)
- Bass Boost Circuit
- 40Hz (0~18dB/oct) Sub-ch
- Bass Boost Frequency 40Hz
- RCA Input Sensitivity 0.2 ~ 5V
- Speaker Level Input Sensitivity 4 ~ 12V
- Input Impedance 10kΩ
- Signal to Noise Ratio 100dB
- Signal to noise ratio (CEA-2006)
- 76dBa (Reference: 1 Watt into 4 Ohms)
- Frequency response (+0dB, -3dB) 20Hz ~ 50000Hz
- Frequency response (+0dB, -1dB) 20Hz ~ 40000Hz
- Operating voltage 14.4V (11V ～ 16V allowable)
- Maximum current consumption 80A
- Dimensions (WxHxD) 260 x 51 x 169(mm),
- Weight 2.4kg
