Description

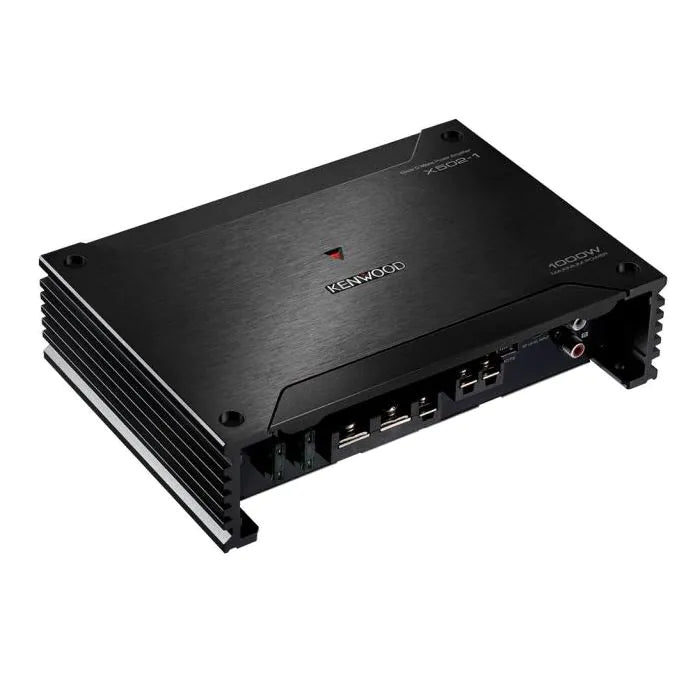

xX-Series, Class D Mono-Channel Power Amplifier
Ultra-high grade range amplifi ers and speakers that deliver high density realistic sound and a spatial sound impression. The new X-Series amplifiers are precisely designed for High-Resolution Audio to create a truly authentic listening experience with every detail and nuance.
Key Features
- Mono channel digital power amplifier
- D-class Amplifier
- Compact chassis
- Built-in low pass filter
- Speaker Level Input
- Signal sensing Turn-on
- Extruded aluminum heat sink design
- 2 ohms load capability
- Screw-type terminals
Amplifier Features
- Class D Amplifier
- Full Range Digital Amplifier
- Load Capability 2Ω Stable
- Rated power output (4Ω) 300W x 1 (4Ω)
- Rated power output 500W x 1 (2Ω)
- CEA-2006 Compliant
- Low-pass Filter
- Switched Mode Power supply, with Power MOS-FET
- Single Side Terminals
- Die-Cast Aluminium Heat Sink
Amplifier-Specifications
- Rated power output (4Ω, 14,4V) 300W x 1 (20Hz ~ 200Hz, 1%THD)Rated power output (2Ω, 14,4V) 500W x 1 (100Hz, 1%THD)
- Rated power output (CEA-2006) 300Watts RMS x 1 at 4 ohms an 1% THD
- Low-pass Filter 50~200Hz (-24dB/oct)
- Bass Boost Circuit 40Hz, 18dB (B-Channel)
- RCA Input Sensitivity 0.2 ~ 5V
- Input Impedance 10kΩ
- Signal to Noise Ratio 100dB
- Signal to noise ratio (CEA-2006)
- 85dBa (Reference: 1 Watt into 4 Ohms)
- Frequency response (+0dB, -1dB) 20Hz ~ 200Hz
- Operating voltage 14.4V (11V ～ 16V allowable)
- Maximum current consumption 25A
- Installation Size (WxHxD) 213 x 53 x 149 (mm)
- Weight 1.5kg
Key Features
- Mono channel digital power amplifier
- D-class Amplifier
- Compact chassis
- Built-in low pass filter
- Speaker Level Input
- Signal sensing Turn-on
- Extruded aluminum heat sink design
- 2 ohms load capability
- Screw-type terminals
Amplifier Features
- Class D Amplifier
- Full Range Digital Amplifier
- Load Capability 2Ω Stable
- Rated power output (4Ω) 300W x 1 (4Ω)
- Rated power output 500W x 1 (2Ω)
- CEA-2006 Compliant
- Low-pass Filter
- Switched Mode Power supply, with Power MOS-FET
- Single Side Terminals
- Die-Cast Aluminium Heat Sink
Amplifier-Specifications
- Rated power output (4Ω, 14,4V) 300W x 1 (20Hz ~ 200Hz, 1%THD)
- Rated power output (2Ω, 14,4V) 500W x 1 (100Hz, 1%THD)
- Rated power output (CEA-2006) 300Watts RMS x 1 at 4 ohms and 1% THD
- Low-pass Filter 50~200Hz (-24dB/oct)
- Bass Boost Circuit 40Hz, 18dB (B-Channel)
- RCA Input Sensitivity 0.2 ~ 5V
- Input Impedance 10kΩ
- Signal to Noise Ratio 100dB
- Signal to noise ratio (CEA-2006)
- 85dBa (Reference: 1 Watt into 4 Ohms)
- Frequency response (+0dB, -1dB) 20Hz ~ 200Hz
- Operating voltage 14.4V (11V ～ 16V allowable)
- Maximum current consumption 25A
- Installation Size (WxHxD) 213 x 53 x 149 (mm)
- Weight 1.5kg
