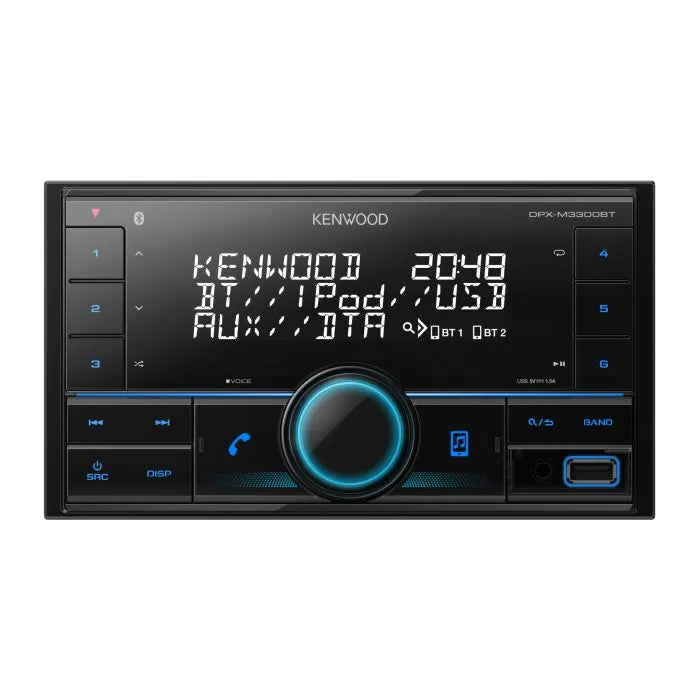

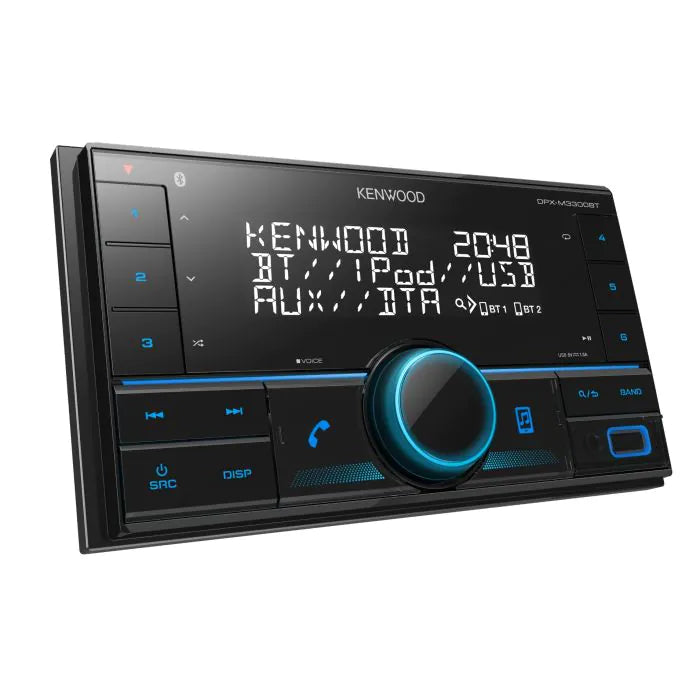

Kenwood DPX-M3300BT - Digital Media Stereo Bluetooth USB Alexa iPhone Ready

• The Kenwood DPX-M3300BT is a powerful 2-din in-car dash AM/FM stereo with a USB and built-in Bluetooth. Features front USB & aux in, 2 preout 2.5V and control through Kenwood app. The Kenwood DPX-M3300BT lets you keep two phones paired and switch between the two to receive incoming calls.

Key Features

• Bluetooth handsfree & audio streaming built-in
• MP3/WMA/AAC/WAV/FLAC playback
• DSP, DTA & 13-band EQ built-in
• KENWOOD Remote app ready
• Music Mix app ready
• Amazon Alexa ready
• 3 Text Line (8/13/8) Wide LCD Display
• Variable Colour Illumination
• English/Russian/Spanish/Frenh&German GUI language
• 2 RCA (front+ rear/sub) Preouts (2,5V)

• General Features
• DIN Size 2 DIN
• Key Illumination Variable LED
• Rotary Encoder & Control Knob
• Accent key Handsfree & Voice Assistant
• Dual Accent Key Handsfree & Voice Assistant
• Back-up Memory Menu Settings
• Attenuator with Smooth Volume Return
• Touch Sensor Tone
• Digital Clock (24H)
• All-off Select (20/40/60 minutes)
• Built-in Connector
• Mitsumi, 16 pin
• Bluetooth unit built-in
• Firmware upgreadable
• Mechless receiver
• Display Features
• Display Layout 3 line text + custom icons
• Vertical Aligment Liquid Crystal Display
• Display Illumination Variable by RGB LED
• Dimmer Control Manual / Set by Timer
• Brightness control 0 - 31 steps
• Demo Mode
• Menu text in selectable language
• English(default) / Spanish / French / German / Russian
• TAG Language Display English / Spanish / French / German / Russian / Greek
• Cosmetics features
• Dress plate Black Injection
• Preset key finish Black Injection
• Escutcheon finish Black Injection
• Volume & operation knob or wheel Transparant Lighting
• Triangle Illumination Red LED
  Key illumination Variable by RGB LED
• Illuminated front USB port Variable by RGB LED
• Brightness Control (Key) 0 - 31 step
• Dimmer Control (Key) Manual / Set by Timer
• Variable color illumination
• Color Zone Concept 3 zone colour control
• Chrome-finished accents faceplate

Tuner Features

• Station Select
• Manual / Preset
• FM Reception
• AM (MW/LW) Reception
• Tuner Presets (FM/AM) 24 Presets (18FM / 6AM)
• Preset memory w/o back-up power
• Mixed preset memory (FM & AM) 6 presets
• Up/Down Seek/Scan
• Automatic Memory Entry (AME)
• FM Stereo / Mono Selector
• Radio Data System
• Radio Text Plus
• Traffic Information
• Local search
• AF Regional Selectable: AF/AF Reg/OFF
• Auto TP search
• Enhanced Other Networks Function (EON)
• Program Type Function (PTY)
• CE_Playable Audio file
• AAC (*.m4a) files are playable USB
• AAC (*.aac) files are playable USB
• MP3 files are playable USB
• WMA (.wma) files are playable USB
• WAV (.wav) files are playable USB
• FLAC fiies are playable USB
• USB Features
• USB terminal, Front side with dust cover
• USB Type 2.0 High speed
• Drive Change
• MP3, WMA, AAC, WAV, FLAC playback
• Repeat/Scan/Random search
• Repeat / Random Play
• Direct search
• Resume play
• Time code display
• 1A Charge Capability for Smartphone.
• 1,5A Smartphone Quick Charge

iPod Features

• Made for iPod & iPhone *
• USB Direct Control (Audio, 1 wire, Lightning-connector) with optional cable KCA-iP103
• Music playback
• Alphabet search
• Skip search
• Related search
• Direct Search
• iPod EQ Mode
• Control by hand
• App & iPod control mode
• Spotify App Link
• Reverse browsing
• Battery charge + power control
• * Always update to latest Apple firmware

Audio Features

• Maximum Output Power 50W x 4
• MOSFET Power IC
• Auxiliary Type
• Mini-jack, front panel
• Pre-out 2 RCA
• Pre-out Output Level  2.5V
• Preout Rear / Subwoofer Switchable
• Subwoofer Reference Level Adj.
• 2-Way X'over network
• 3-Way x'over (bi-amp connection)
• Tone Control / Easy EQ 13 band, 8 presets
• Balance/Fader/Loudness Control
• Bass Boost Circuit Off/+1/+2/+3/+4/+5
• Att.(-20dB) with smooth Volume Return
• Equalizer built-in
• Graphic Equalizer + Preset 13-Bands Graphic Equalizer with 8 Presets.
• Digital Sound Processor (DSP) Built-in
• Digital Time Aligment (DTA)
• Low- & High-pass Filter
• Speaker Size Control, Off/10cm/13cm/16cm/6x9inch
• Kenwood Sound Reconstruction
• Sound Reconstruction
• Space Enhancer
• Realizer
• Stage EQ
• Drive EQ

Bluetooth General Features

• Hands Free Profile with High Sound Quality HFP V1.7.1
• Max num. of regist. phones for HFP 5 phones
• 2 phones fulltime connection
• Audio Streaming (A2DP)
• High Quality Audio Streaming SBC/AAC
• Max num. of regist. units for A2DP 5 units
• Serial Port Profile (SPP)
• Phonebook Access Profile (PBAP)
• Audio/Video Remote Control Profile (AVRCP), V1.6.1
• Easy pairing function
• iPhone & Android automatic pairing via USB
• Voice Dialing / Siri Eyes Free
• Spotify App Link
• KENWOOD Remote App Ready
• KENWOOD Music Mix Support
• Amazon Alexa ready
• Catchphone / Call Waiting
• Private mode
• Alphabet Search (Phonebook)
• Noise Canceller
• Echo Canceller
• Phone device status display
• Audio device status display
• Signal strength display
• Remaining battery display
• Bluetooth Paring Indicator
• High-quality noise canceling microphone. Rear Wired
• Bluetooth firmware upgradeable
• * depends on phone model/make & Kenwood unit

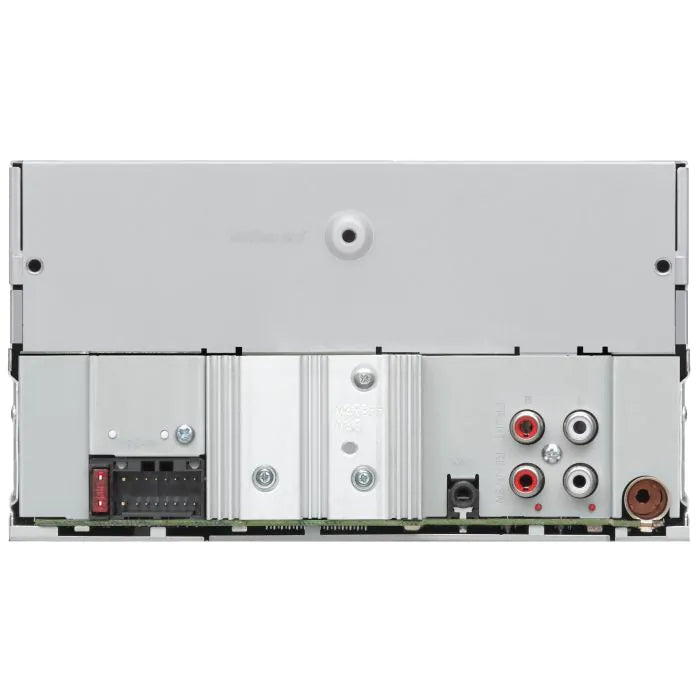

Connectivity

• Front USB & AUX Input
• OEM Wired Remote Control ready
• DC-Cord Mitsumi to ISO
• Power Control (P.CON) wire
• Amplifier pre-out RCA: Front/Rear/Subwoofer
• FM Antenna Input JASO connector
• External microphone input 3,5mm mini-jack

Tuner Specifications

• FM range: 87.5Mhz - 108MHz (50Khz step)
• FM Usable Sensitivity 0.71μV/75ohm (S/N 30dBf)
• FM Quieting Sensitivity 2μV/75ohm (S/N 46dBf)
• FM Frequency Response 30Hz ~ 15kHz (± 3dB)
• FM Signal to noise ratio (Mono) 64dB
• FM Stereo Separation (1kHz) 40dB
• MW range: 531kHz - 1611kHz (9kHz step)
• MW Usable Sensitivity 28.2μV
• LW range: 153kHz - 279kHz (9kHz step)
• LW Usable Sensitivity 50μV
• Codec Specs
• MP3 Format MPEG 1/2 Audio Layer 3-Files
• WMA Format in accordance with Windows Media Audio
• AAC Format AAC-LC “.aac”(CD&USB) and ".m4a"(USB) files
• WAV Format RIFF waveform Audio Format (only for LinearPCM)
• FLAC Format FLAC files (up to 96kHz/24bit)

USB Specifications

• USB Version compatibility USB 2.0 High Speed
• File System FAT 32/16/12
• Maximum Supply current 1500mA
• D/A Converter 24bit
• MP3 Decode Compliant with MPEG-1/2 Audio Layer-3
• WMA Decode Compliant with Windows Media Audio
• AAC Decode "m4a" & "aac" file encoded by AAC-LC format
• WAV Decode. Linear - PCM Files
• flac Decode FLAC files up to 96kHz/24bit

Audio Specifications

• Maximum Power 50W x 4
• Output Power (DIN45324,+B=14.4v) 22W x 4
• Preout Level 2500mV / 10kOhm,
• Preout Impedance ≤ 600Ohm
• Speaker Impedance 4Ohm ~ 8Ohm
• AUX Frequency Response 20Hz ~ 20kHz (±1dB)
• AUX Maximum Input Voltage 1000mV
• AUX Input Impedance 30kOhm

DSP Specifications

• Frequency band – Front 62.5Hz ~ 16kHz
• Equalizer Gain –9db ~ +9db
• Q Control 0.25/ 0.50/ 1.00/ 2.00
• High Pass Filter frequency Through/50 ~ 220 (Hz)
• High Pass Filter Slope -12/-18/-24 dB/Oct
• Low Pass Filter frequency 50 ~ 120(Hz)/Through
• Low Pass Filter Slope  -12/-18/-24 dB/Oct
• Time Alignment 0 — 610cm(2 cm step)
• Car type control
• ► OFF
• ► COMPACT
• ► Full SIZE CAR
• ► WAGON
• ► MINIVAN
• ► SUV
• ► MINIVAN LONG
• Equalizer Type Graphic
• Frequency band 13 bands
• Bluetooth specifications
• Technology Bluetooth V4.2
• Frequency 2.402 - 2.48 GHz
• Output power +4dBm(max), 0dBm (AVE) power class 2
• Maximum range Line of sight approx. 10 meter
• Handsfree profile (HFP)
• Serial port profile (SPP)
• Advanced audio distribution profile (A2DP)
• Audio Codec SBC/AAC
• Audio/Video remote control profile (AVRCP) Yes
• Phonebook access profile (PBAP)

Accessories

• Release keys 2 pieces
• Escutcheon
• Installation Sleeve
• DC cord (Mitsumi to ISO) 15 cm
• Handsfree Microphone with 3 m cable
• General Specifications
• Operating voltage 14.4V (10.5 ~ 16V Allowable)
• Maximum Current Consumption 10A
• Dark Current Consumption Below 1mA
• Dimensions (WxHxD)  182 x 111 x 158mm
• Weight 1700 gr.
• Operation Temperature Range -10°C ~ 60°C
• Instruction Manuals   Multi-language quick Guide
