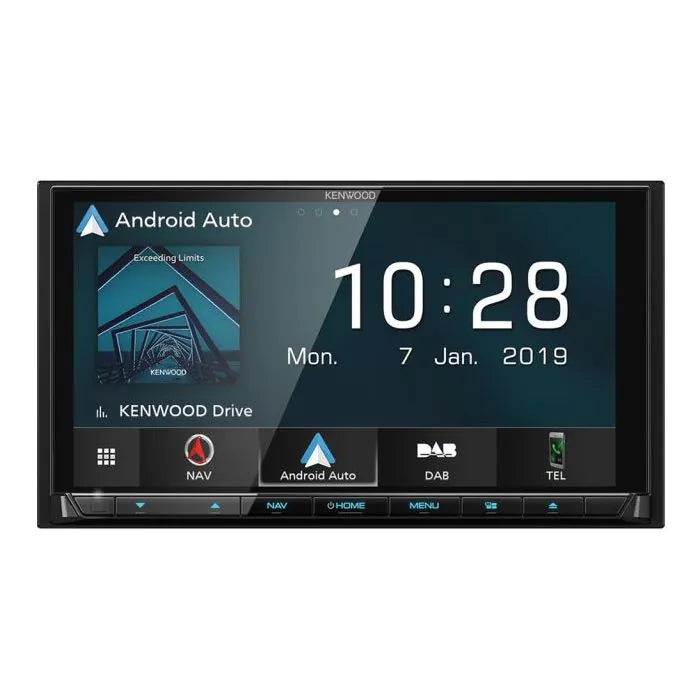

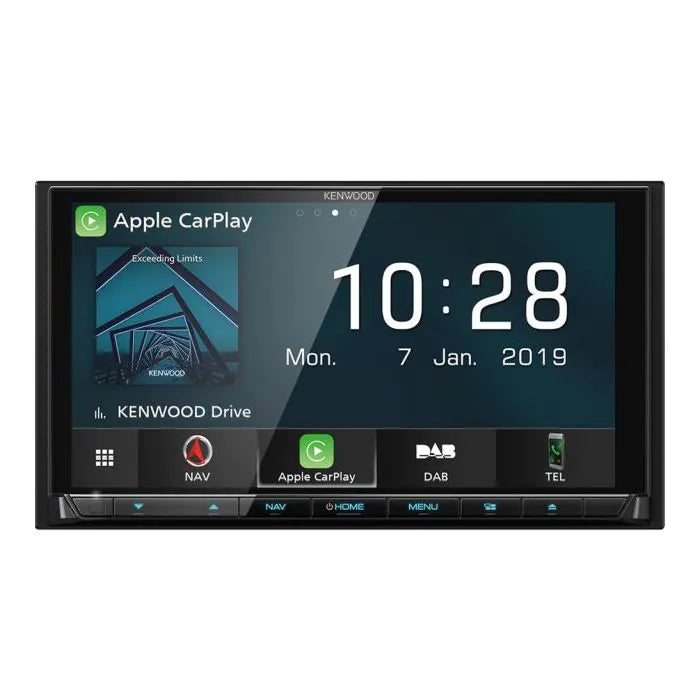

Kenwood DNX9190DABS - 6.8” HD GPS CarPlay Android Bluetooth DAB Stereo

Multimedia GUI Features

• OSDC Type Graphic
• Variable Colour illumination, 32766
• Menu text 22 languages:

► English(UK)(Default)

► English(US)

► Spanish

► French

► German

► Italian

► Dutch

► Russian

► Portuguese

► Chinese (Simplified)

► Chinese (Traditional)

► Thai

► Turkish

► Arabic

► Persian

► Hebrew

► Greek

► Malaysian

► Indonesian

► Polish

► Czech

► Hungarian

• Software updates (SoC) via USB
• Graphics Type Graphics
• Spectrum Analyzer
• Demonstration Mode
• Top Menu Customize
• Opening Screen Type standard
• Customize short-cut keys on home screen yes
• Background Customize 6 preset (4x Static, 1x Colour customize, 1x Sync album art) + 2x User set
• Display customize (capture)
• Animation
• Slide Touch Operation
• Multi touch function
• Screen Capture
• R-CAM interrupt
• R-CAM Caution On Screen Display
• R-CAM Parking Guide Lines , customizable
• Front Camera Interruption
• DashCam Control

Monitor Features

• Screen Type 6.8" Wide XVGA
• High Resolution VGA Display
• LCD type 6.8" WXGA (Wide High-Definition)
• LCD backlight LED
• Display Mode
• 3 Mode (Full(default)/Auto/Normal)
• Display full modedefault
• Display auto mode Full - Normal / Regular
• Screen Adjustments  Noon/Night Mem/Brightness/Tint/Colour/Contrast/Backlight.
• Screen adjust: Noon / Night Memory
• Dimmer function
• Manual/Sync/Navi Sync
• Dimmer Level Auto/On/Off
• Visual Source Mode  Mirorring/CarPlay/Android Auto.
• Touch Panel
• Capacitive
• Display Type  Glare
• Display film18 Film (Anti-fingerprint, anti-reflection, anti-glare)
• Mechanism Angle Adjustment -1 (Reverse tilt) to 5 steps angle dajust
• Mechanism Postion Memory
• LCD viewing angle control
• “0" (Default) / "-1" / "-2" / "-3"
• NTSC/PAL judge (Auto)
• Display Off Mode

Audio features

• Max. Output Power (MOSFET Power IC) 4 x 50W
• Pre-out 3RCA: Front/Rear/Subwoofer
• RCA Gold Plated
• Pre-out Output Level 5V
• Volume Offset
• 2 Zone Control
• Balance/Fader Control
• Att.(-20dB) with smooth Volume Return
• Beep On/Off

Multimedia DSP Features

• DSP Chip AK7738
• Position Control
• Position Preset 4 Presets
• Graphic Equalizer 13 bands
• G-EQ KBS, 8 x Preset + 4 x User set
• G-EQ manual setting
• G-EQ adjustable level , -9 / ... /+9 dB
• Time Alignment  0cm ~ 610cm
• High Pass Filter (HPF)  (Front/Rear/Center)
• HPF Cut Off Frequency 14
• HPF Cut Slope Level 4 steps
• Low Pass Filter (LPF) (Non-Fading)
• LPF Cut Off Frequency 14
• LPF Cut Slope Level 4 steps
• 3-Way X'Over
• Source DSP Memory
• Speaker Size Control
• Car type control

► Off

► Compact

► Sedan

► Wagon

► Minivan

► SUV

► Passenger Van

• Channel Level Control
• Space Enhancer
• Supreme
• Realizer
• Loudness
• Stage EQ
• Tweeter volume
• Bass Boost
• Hi-Resolution Audio

Video Features

• Audio Video Output  Yes, Video: RCA, Audio: mini-jack
• Audio/Video Input
• Video & Audio mini-jack
• HDMI input
• Video-In for Rear-view Camera
• 1 dedicated video input (RCA)
• Detection Mode Rear View Camera Reverse sensor wire
• (Rear) camera display view control
• Parking Guide Line
• DVD Menu Direct Touch Operation
• MPEG Decoder, (audio) 2ch downmix

Tuner Features

• Frequency step selectable
• Station Select List
• Tuner Type Lithio
• FM Reception
• AM (MW/LW) Reception
• Tuner Presets (FM/AM) 20 Presets (15FM / 5AM)
• Tuning mode Auto1/Auto2/Manual
• Up/Down Seek/Scan
• Automatic Memory Entry (AME)
• FM Stereo / Mono Selector
• Radio Data System
• Radio Text Plus
• Traffic Information
• Local search
• Enhanced Other Networks Function (EON)
• Program Type Function (PTY)

CE DAB tuner features

• DAB+ tuner built-in
• Digital Radio Certification Mark
• Intelligent seek
• Tuning mode / Seek mode Auto1/Auto2/Manual
• Service preset 15 ch * 1 bank presets,
• Service list by alphabet order
• Preset list
• Alphabet Search
• Traffic Information
• DAB-DAB/DAB-FM auto switch
• Seamless DAB-FM blending
• DLS (Dynamic Label)
• PTY (Programme Type) search
• PTY (Programme Type) watch
• DMB Audio (Digital multimedia broadcasting)
• Soft linking
• Antenna power supply on/off switch
• CE_Playable Audio file
• AAC (*.m4a) files are playable USB/SD/Disc
• AAC (*.aac) files are playable USB/SD/Disc
• MP3 files are playable USB/SD/Disc
• WMA (.wma) files are playable USB/SD/Disc
• WAV (.wav) files are playable USB/SD/Disc
• FLAC files are playable USB/SD/Disc
• CE_Playable Video file
• MPEG1/2 files are playable USB/SD/Disc
• MPEG4 files are playable USB/SD/Disc
• WMV files are playable USB/SD/Disc
• H.264 files are playable USB/SD/Disc
• mkv files are playable  USB/SD/Disc
• JPEG files are playable USB/SD/Disc
• BMP files are playable USB/SD/Disc
• PNG files are playable USB/SD/Disc

DVD-Features

• Disc Capacity 1 Disc(s)
• DVD Region Code 2 (Europe)
• DVD-Video
• DVD±R/RW Compatible
• CD-DA
• CD-R/RW Compatible
• CD-DA Repeat/Scan/Random play
• Jacket Picture with Tag
• Supported audio files Linear PCM/Dolby Audio/MP3/WMA/AAC/WAV/FLAC/Vorbis
• Supported video files MPEG1/MPEG2/MPEG4/WMV/H.264/MKV
• Zoom Control (DVD/VCD)
• MPEG Audio 2Ch Downmix
• Down mix, 2ch for Dolby Audio & MPEG Audio
• 2nd Disc Prevention Mechanism
• Digital/Analog Converter 24/32 bit
• Time Code Display
• Skip/Search
• Random Play Folder
• Repeat Play Folder/File/All
• Time Code Display
• Resume Play / Last Position Memory
• Disc Menu Direct Touch

USB Features

• Rear USB Terminal, x2
• USB Type 2.0 High speed
• USB extension cable supplied 2x 1 meter
• Spotify App link Iphone
• Works with Android Auto
• Supported audio file MP3/WMA/AAC/WAV/FLAC/Vorbis
• Supported video files MPEG1/MPEG2/MPEG4/WMV/H.264/MKV
• Tag Information Display
• Album Art Display
• Repeat/Scan/Random search
• Repeat / Random Play
• Repeat Play Folder/File/All
• Random play Folder
• Category search
• Resume play
• Time code display
• 1,5A Charge Capability for Smartphone (BC 1.2).

iPod Features

• Made for iPod & iPhone *
• USB Direct Control with optional cable KCA-iP102
• USB Direct Control (Audio, 1 wire, Lightning-connector) with optional cable KCA-iP103
• Album art support
• Music library search
• Alphabet search
• Skip search
• Related search
• My playlist
• Control by hand
• App & iPod control mode
• Spotify App Link
• Works with Apple CarPlay
• Reverse browsing
• Bluetooth Auto Paring for iPhone
• Battery charge + power control
• Android Phone Control
• Spotify Link for Android
• Works with Android Auto

SD-card Features

• SD card type: SD / SDHC / SDXC
• Max capacity  2000 Gb
• Music playback
• Supported audio files MP3/WMA/AAC/WAV/FLAC/Vorbis
• Supported video files MPEg1/MPEG2/MPEG4/WMV/H.264/MKV
• Repeat play Folder/File/All
• Random play
• Alfabetical search
• Random & Repeat Play
• List access
• Resume play
• Jacket Picture with Tag

Bluetooth General Features

• Max num. of regist. phones for HFP & A2DP 5 phones
• Hands Free Profile with High Sound Quality HFP V1.7
• Max num. of regist. phones for HFP 5 phones
• 2 Phones Switchable Hands Free
• 2 phones fulltime connection
• Advanced Audio Distribution Profile (A2DP), (SBC/AAC)
• Max num. of regist. units for A2DP5 units
• Serial Port Profile (SPP)
• Simple Secure Pairing (SSP)
• Phonebook Access Profile (PBAP), Accessible phonebook entries & alphabet search
• Audio/Video Remote Control Profile (AVRCP), V1.6
• Multi Profile Support
• Easy pairing function
• iPhone & Android automatic pairing via USB
• Spotify App Link Iphone & Android
• KENWOOD Music Mix Support
• Catchphone / Call Waiting
• Private mode
• Interrupt call request
• Alphabet Search (Phonebook)
• Noise Canceller
• Echo Canceller
• Phone device status display
• Audio device status display
• Signal strength display
• Remaining battery display
• Bluetooth Paring Indicaton
• Bluetooth phones to register 5
• High-quality noise canceling microphone  Included (rear wired)
• Bluetooth firmware upgradeable
• * depends on phone model/make & Kenwood unit

Network & Wifi features

• Frequency Range Dual Band (2.4GHz / 5GHz)
• IEEE standard 802.11a/b/g/n/ac
• Wireless Local Area Network (WLAN) channels:   1 - 11Ch
• Wifi connection for Apple CarPlay
• Wifi connection for Android Mirroring
• Transfer rates (Max)

► 11a: 54Mbps

► 11b: 11Mbps

► 11g: 54Mbps

► 11n: 300Mbps

► 11ac: 867Mbps

• Preinstalled Apps_Widgets
• Clock
• Spectrum Analyzer
• Compass
• Climate
• Vehicle Information
• Navigation Turn by Turn
• Weather (by INRIX)
• Nav + Audi
• Photo Frame

Navigation Features

• Guidance by Garmin
• Touch-screen controllable
• Graphical Resolution WVGA
• Inner Memory Size 16 GB
• Built-in Map Data OEM CN Europe NTU 2018 ALL North
• Built-in Map Data OEM CN Europe NTU 2018 ALL South
• Map Coverage Great Britain and Republic of Ireland

• Great Britain: Full coverage

• Scotland: Full coverage

• Wales: Full coverage

• Isle of Man: Full coverage

• Northern Ireland: Full coverage

• Ireland: Full coverage

• Channel Islands: Full coverage

• Gibraltar: Full coverage

Denmark, Finland, Iceland, Norway, and Sweden

• Denmark: Full coverage

• Finland: Full coverage

• Iceland: Full coverage

• Norway: Full coverage

• Sweden: Full coverage

France and Benelux

• Andorra: Full coverage

• Belgium: Full coverage

• France: Full coverage

• French Guiana: Full coverage

• Guadeloupe: Full coverage

• Martinique: Full coverage

• Netherlands: Full coverage

• Luxembourg: Full coverage

• Réunion: Full coverage

• Saint Barthélemy: Full Coverage

Map Coverage Italy, Austria, Switzerland, and Liechtenstein

• Italy: Full coverage

• Austria: Full coverage

• Switzerland: Full coverage

• Liechtenstein: Full coverage

Malta

• Malta: Full coverage

Spain and Portugal

• Spain: Full coverage

• Portugal: Full coverage

• Gibraltar: Full coverage

• Azores Islands: Full coverage

• Canary Islands: Full coverage

• Baleric Islands: Full coverage

• Madeira: Full coverage

Germany

• Germany: Full coverage

Czech Republic

• Czech Republic: Full coverage

Greece and Cyprus

• Greece: Full coverage

• Cyprus: Full coverage of Republic of Cyprus; Major urban areas with intertown roads in disputed areas

Map Coverage (Russia) Eastern Europe

• Estonia: Full coverage

• Latvia: Full coverage

• Lithuania: Full coverage

• Poland: Full coverage

• Czech Republic: Full coverage

• Slovakia: Full coverage

• Hungary: Full coverage

• Slovenia: Full coverage

• Croatia: Full coverage

• Bulgaria: Full coverage

• Romania: Full coverage

• Turkey: Full coverage

• Moldova: Major urban areas with intertown roads

• Bosnia & Herzegovina: Full coverage

• Serbia: Full coverage

• Kosovo: Full coverage

• Montenegro: Full coverage

• Albania: Full coverage

• Republic of Macedonia (FYROM): Full coverage

• Belarus: Major urban areas with intertown roads

• Ukraine: Full coverage

• Map Update Via download on SD card
• Free Map Update
• 3 Years (Starts after 20km first time driving)
• Default Position Depend on locale setting
• 3-Dimensional Map Display
• 2-Dimensional Map Display
• Auto Zoom Function

Voice Language American English-Samantha, British English-James, British English-Kate, British English-Serena (Default), British English-Daniel.

Keyboard Language American English, Arabic, British English, Bulgarian, Croatian, Czech, Danish, Dutch, Estonian, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Latvian, Lithuanian, Norwegian, Polish, Portuguese, Romanian, Russian, Serbian(Cyrillic & latin), Simplified Chinese, Slovakian, Slovenian, Spanish, Swedish, Thai, Traditional Chinese, Turkish, Ukrainian, Vietnamese.

• Keyboard Layout QWERTY or ABCDE
• Destination Search

► Home

► Adress

► Restaurants

► Petrol Stations

► Shopping

► personlise

► Categories

• Restaurants

• Shopping

• Everyday Life

• Petrol Stations

• Banks & Cashpoints

• Parking

• Roadside Service

• Art & Entertainment

• Attractions

• Recreation

• Medical Care

• Public Transport

• Lodging

► Favourites

► History

• Automatic Re-Route
• Way Points (Favorites)
• Traffic Message Channel Built-in
• Easy-to-use Graphical Interface
• ecoRoute™
• Turn-by-turn' directions
• Lane assist
• Junction view
• Half junction view
• PhotoReal junction view
• 3D Terrain
• Globe view (world mapping)
• Customizable main menu
• Localized road signs and auto text
• Trip log output to PC via USB
• Traffic Trend / My Trend
• Traffic Trends
• My Trends
• Speedcamera allert upload via USB (third party poi)
• INRIX traffic, (2 years free trial)
• INRIX Parking, (2 years Free Trial)
• INRIX Gas Price, (2 years Free Trial)
• INRIX Weather, (2 years Free Trial)
• INRIX RoadWeather, (2 years Free Trial)
• INRIX Traffic Free Trial 2 years
• Speed Limit Indicator
• Map Buttons and Map Tools
• Door to Door Navigation (point addressing)
• Points of intrest (POI), more than 6 million points
• Custom POI's
• Smart POI Search
• POI Call Button
• Insta Search
• Insta Route
• Birds Eye lane guidance
• Vehicle Position Sensing by GPS
• Turn-by-Turn Instructions
• Day/Night Colour mode
• Route Preference Function
• GPS Info page
• Customizable vehicle profile information
• Phone call by POI search (Bluetooth Function)
• Phone number search
• Dash-Cam Playback Link

Connectivity

• SB interface 2 x USB 2.0 (pigtail)
• OEM Wired Remote Control ready, with optional Plug & Play cable + interface
• OEM Display Control ready, Optional interface (KIM) needed
• Programmable OEM Steeringwheel Remote Function
• Display input/output control
• DC-Cord Mitsumi to ISO
• Parking sensor (handbrake) wire
• Power Control (P.CON) wire
• 2-way (Tel/Navi) mute wire
• Dimmer control wire
• Speedpuls input wire
• AV-Input 1x mini-jack (selectable: AV-in / Camera-in)
• AV Output Video: RCA / Audio: mini-jack
• Available AV-Out source DVD/AV-in/USB
• Reverse sensor wire
• Rear View Camera Input
• Dedicated RCA Video-in
• Front View Camera Input selectable: Front / Dash-Camera-in
• Front/Rear Camera Control Line
• Dashcam Link
• Amplifier pre-out 3 x RCA: Front/Rear/Subwoofer
• 3rd Party TV Control (Mini-Jack)
• HDMI input Type A
• GPS Aerial Input HRS GT5-1S connector
• FM Antenna Input JASO connector
• DAB Aerial input SMB connector
• External microphone input 3,5mm mini-jack

Monitor Specifications

• Screen size (Diagonal) 6.75 Inches Wide
• Screen Size (WxH) 152.1 x 79.5mm
• Display system AAS (Azimuthal Anchoring Switch) LCD panel
• Drive system  TFT Active Matrix System
• Number of Pixels 2764800pixels (1280(H) x 720(V) x RGB)
• Effective pixels 99.99%
• Pixel arrangement RGB Striped
• Back lighting  LED (Light Emitting Diode)

Video Specifications

• Color System of External Video Input NTSC/PAL
• External video input level (mini-jack) 2 Vpp / 25 Ohm
• External audio max. input level (mini-jack) 2 Vpp / 25 kOhm
• Video input level (RCA) 1 Vpp, 75 Ohms
• Video Output Level (RCA) 1 Vpp / 75 Ohm
• Audio Output Level (mini-jack) 0.9 Vpp / 10 kOhm
• HDMI - VGA input resolution 640x480p @59.94Hz/60Hz
• HDMI - 480p input resolution 720x480p @59.94Hz/60Hz
• HDMI - 720p input resolution 1280x720p @59.94Hz/60Hz
• HDMI - input Audio type 16/20/24-bit Linear PCM
• Audio Specifications
• Maximum Power 50W x 4
• Output Power (DIN45324,+B=14.4v) 22W x 4
• Output frequency band 20Hz ~ 88kHz
• Preout Level 5000mV / 10kOhm,
• Preout Impedance ≤ 300Ohm
• Speaker Impedance 4Ohm ~ 8Ohm

DSP Specifications

• Equalizer Type Graphic
• Frequency band 13 bands
• Frequency band 62.5/100/160/250/400/630/1k/1.6k/2.5k/4k/6.3k/10k/16k
• Equalizer Gain –9db ~ +9db
• Q Control 0.25/ 0.50/ 1.00/ 2.00
• High Pass Filter frequency Through/30 ~ 250 (Hz)
• High Pass Filter Slope -6/-12/-18/-24 dB/Oct
• Low Pass Filter frequency 30 ~ 250(Hz)/Through
• Low Pass Filter Slope -6/-12/-18/-24 dB/Oct
• Time Alignment 0 — 610cm(1 cm step)
• Car type

► Off

► Compact

► Sedan

► Wagon

► Minivan

► SUV

► Passenger Van

• Speaker type – Center

► NONE

► 40mm X 70mm

► 5cm

► 10cm

► 13cm

► 16cm OVER

• Speaker type - Front

► O.E.M.

► 10cm

► 13cm

► 16cm

► 17cm

► 18cm

► 4" x 6"

► 5" x 7"

► 6" x 8"

► 6" x 9"

► 7" x 10"

• Speaker type - Rear

► NONE

► O.E.M

► 10cm

► 13cm

► 16cm

► 17cm

► 18cm

► 4" x 6"

► 5" x 7"

► 6" x 8"

► 6" x 9"

► 7" x 10"

• Speaker type - Sub woofer

► NONE

► 16cm

► 20cm

► 25cm

► 30cm

► 30cm over

• 2-Way X'over / Front/Rear (HPF) / Frequency Through, 30/40/ ~ / 220/250Hz
• 2-Way X'over / Front/Rear (HPF) / Slope -6/-12/-18/-24 (dB/oct)
• 2-Way X'over / Subwoofer (LPF) / Frequency 30/40/ ~ / 220/250Hz, Through
• 2-Way X'over / Subwoofer (LPF) / Slope -6/-12/-18/-24 (dB/oct)
• 3-Way X'Over / High Pass Filter Frequency Through, 30/40/ ~ / 220/250Hz
• 3-Way X'Over / High Pass Filter Slope Through, 30/40/ ~ / 220/250H, Trough
• 3-Way X'Over / Band Pass Filter Frequency -12/-18/-24 (dB/Oct
• 3-Way X'Over / Band Pass Filter Slope -12/-18/-24 (dB/Oct)
• 3-Way X'Over / Low Pass Filter Frequency 30/40/ ~ / 220/250Hz, Through
• 3-Way X'Over / Low Pass Filter Slope -12/-18/-24 (dB/Oct
• Subwoofer Level -50dB ~ 10dB
• Position: 3-Way (Tw/Mid/Sub) Delay 0cm ~ 610cm (1cm step)
• Postion Gain   -8dB ~ 0dB

Tuner Specifications

• FM range: 87.5Mhz - 108MHz (50Khz step)
• FM Usable Sensitivity 9.3μV/75ohm (S/N 30dBf)
• FM Quieting Sensitivity 15.2μV/75ohm (S/N 46dBf)
• FM Frequency Response 30Hz ~ 15kHz (± 3dB)
• FM Signal to noise ratio (Mono) 65dB
• FM Selectivity(DIN)  over 80dB (±400kHz)
• FM Stereo Separation (1kHz) 45dB
• MW range: 531kHz - 1611kHz (9kHz step)
• MW Usable Sensitivity 25μV
• LW range: 153kHz - 279kHz (9kHz step)
• LW Usable Sensitivity 45μV

DAB Tuner specifications

• Band III - Frequency range 174.928 MHz - 239.2MHz
• Mode I, II, III, IV
• Sensitivity - 100dBm
• Signal to noise ratio 90dB
• Audio format MPEG1 Audio Layer II / MPEG4 HE-AAV V2
• DAB Aerial Connector Type SMB
• Output Voltage 14.4V (11V to 16V allowable)
• Maximum Current < 100 mA

USB Specifications

• USB Version compatibility USB 2.0 High Speed
• File System FAT 16/32 / exFAT / NTFS
• Maximum Supply current 1500mA
• D/A Converter 24/32 bit
• Video Decoder MPEG1/MPEG2/MPEG4/WMV/H.264/MKV
• Audio Decoder MP3/WMA/AAC/WAV/FLAC/Vorbis
• Frequency Response  22Hz - 88kHz
• S/N Ratio 98.5 dB (1kHz)
• Dynamic Range 89dB

SD-card specs

• Compatible SD cards SD / SDHC / SDXC
• File system FAT 16/32, exFAT, NTFS
• Maximum capacity 2000 GB
• Data transfer rate Maximum 25 Mbps
• Video decoder MPEG1/MPEG2/MPEG4/WMV/H.264/MKV
• Audio decoder MP3/WMA/AAC/WAV/FLAC/Vorbis

Bluetooth specifications

• Technology Bluetooth V5.0
• Frequency 2.4202 - 2.48 GHz
• Output power +4dBm(max), power class 2
• Maximum range Line of sight approx. 10 meter
• Handsfree profile (HFP), V1.7
• Serial port profile (SPP)
• Advanced audio distribution profile (A2DP)

Network & WiFi Specifications

• Audio Codec SBC/AAC
• Audio/Video remote control profile (AVRCP), V1.6
• Phonebook access profile (PBAP)
• Multi Profile Support
• Wifi IEEE standard 802.11a/b/g/n/ac
• Wifi Frequency Range 2.4 - 5 GHz
• Wifi Transfer Raters (MAX)

► 802.11a(54Mbps)

► 802.11b(11Mbps)

► 802.11g(54Mbps)

► 802.11n(300Mbps)

► 802.11ac(867Mbps)

Navigation specifications

• Receiver type High sensitivity GNNS receiver
• Acquisition time cold < 26 sec
• Update rate 1/sec continuous
• Position accuracy < 2 meters/typical
• Velocity accuracy 0.05 meter/sec RMS
• Positioning method GPS / GLONASS
• Antenna External GPS/GLONASS antenna

Accessories

• Release keys2 pieces
• Escutcheon
• Installation Sleeve
• DC cord 25 cm
• usb extension cable  2 pieces, 1 meter
• GPS antenna with 3 m cable
• GPS Antenna Ground Plane Mount (Adhesive Metal Pad)
• Handsfree Microphone with 3 m cable
• Multi-Language Instruction Manual Included Quick-Guide
• Manuals Downloadable

General Specifications

• Operating voltage 12V (10.5 ~ 16V Allowable)
• Maximum Current Consumption 15A
• Dimensions (WxHxD) 182 x 112 x 163mm
• Weight, inclu. sleeve & escutcheon 2500 kg
