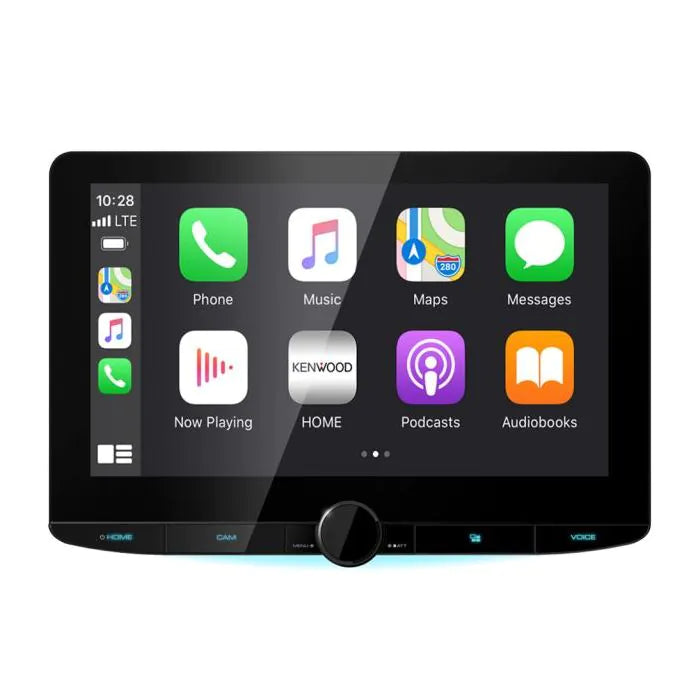

Kenwood DMX9720XDS - 10.1" Screen Wireless CarPlay Android Auto DAB BT Stereo

General Features

• DIN Size 2 DIN
• Security Code Function ( user set), Set by user
• Smooth GUI
• Selectable GUI Background Wallpaper
• Key Illumination Variable color
• Installer Memory
• Back-up Memory
• Attenuator with Smooth Volume Return
• Optional IR remote controller, (KCA-RCDV331)
• Digital Clock (24H)
• Built-in Bluetooth
• DAB Tuner Built-in
• Works with Apple CarPlay
• Works Wireless with Apple CarPlay
• Works with Android Auto
• Works Wireless with Android Auto
• Wireless Mirroring for Android
• Firmware upgreadable
• HDMI input for video playback
• Dashcam Link

Monitor Features

• Screen Type 7,0" Wide VGA
• Display Mode 3 Mode (Full(default)/Auto/Normal)
• Screen Adjustments

► Noon & Night Memory.

► Brightness.

► Tint.

► Colour.

► Contrast.

► Black Level.

► Backlight.

• Dimmer function Manual/Sync
• Dimmer Level Sync / On / Off
• Visual Source Mode Mirorring / CarPlay / Android Auto.
• Touch Panel Capacitive
• Display Type Glare
• Display film Anti-Fingerprint / Anti-Reflection / Anti-Glare)
• Display Panel  Capacitive
• Mechanism type Floating screen
• Tilt mechanism control -10° ~ +45°
• Forward/backward mechanism control 0 ~ 22mm (fixed by screws)
• Up/Down mechanism control 0 ~ 39mm (fixed by screws)
• LCD viewing angle control "0" (Default) / "-1" / "-2" / "-3"
• NTSC/PAL judge (Auto)

Multimedia GUI Features

• Menu text 22 languages:

► English(UK)(Default)

► English(US)

► Spanish

► French

► German

► Italian

► Dutch

► Russian

► Portuguese

► Chinese (Simplified)

► Chinese (Traditional)

► Thai

► Turkish

► Arabic

► Persian

► Hebrew

► Greek

► Malaysian

► Indonesian

► Polish

► Czech

► Hungarian

• Software updates (SoC) via USB
• Graphics Type Graphics
• Spectrum Analyzer
• Demonstration Mode
• Top Menu Customize
• Opening Screen Type standard
• Background Customize Preset x6:

► Static x4.

► Colour Customize x1.

► Sync Album Art x1.

► USER x2.

• Wallpaper colour change
• Picture in picture
• Animation
• Screen Capture
• R-CAM interrupt
• R-CAM Caution On Screen Display
• R-CAM Parking Guide Lines
• Front Camera Interruption
• Front view camera mirror
• DashCam Control
• Rapid charge indicator

Network & Wifi features

• WiFi built-in built-in
• Frequency Range Dual Band (2.4GHz / 5GHz)
• IEEE standard 802.11a/b/g/n/ac
• Wifi connection for Apple CarPlay
• Wifi connection for Android Auto
• Wifi connection for Android Mirroring

Tuner Features

• Station Select Manual / Preset (List)
• Tuner Type Lithio
• FM(RDS) + AM(MW/LW) Tuner
• Tuner Presets (FM/AM) 20 Presets (15FM / 5AM)
• Preset memory w/o back-up power
• Tuning mode
• Up/Down Seek/Scan
• Automatic Memory Entry (AME)
• FM Stereo / Mono Selector
• Radio Data System
• Radio Text Plus
• Traffic Information
• Local search
• AF Regional Selectable: AF/AF Reg/OFF
• Auto TP search
• Enhanced Other Networks Function (EON)
• Program Type Function (PTY)

CE DAB tuner features

• DAB+ tuner built-in
• Digital Radio Certification Mark
• Intelligent seek, (Service, Ensemble & Component)
• Ensemble seek
• Tuning mode / Seek mode Auto1/Auto2/Manual
• Service preset 15 ch * 1 bank presets,
• Service list by alphabet order
• Preset list
• Alphabet Search
• Related service
• Traffic Information
• DAB priority
• DAB-DAB/DAB-FM auto switch
• Seamless DAB-FM blending
• DLS (Dynamic Label)
• PTY (Programme Type) search
• PTY (Programme Type) watch
• Announcement Switching (ASW) Select
• TMC (Traffic Message Channel) support
• DMB Audio (Digital multimedia broadcasting)
• Soft linking
• Antenna power supply on/off switch

Bluetooth General Features

• Module Murata
• Hands Free Profile (HPF) V1.7
• Hands Free Profile with High Sound Quality HFP V1.7
• 2 Phones Switchable Hands Free
• 2 phones fulltime connection
• Audio Streaming (A2DP), (SBC/AAC)
• High Quality Audio Streaming SBC/AAC
• LDAC - High Resolution Audio Streaming
• Max num. of regist. units for A2DP 5 units
• Serial Port Profile (SPP)
• Simple Secure Pairing (SSP)
• Phonebook Access Profile (PBAP)
• Audio/Video Remote Control Profile (AVRCP), V1.6
• Multi Profile Support
• iPhone & Android automatic pairing via USB
• KENWOOD Remote App Ready
• KENWOOD Music Mix Support
• Catchphone / Call Waiting
• Private mode
• Alphabet Search (Phonebook)
• Noise Canceller
• Echo Canceller
• Phone device status display
• Audio device status display
• Signal strength display
• Remaining battery display
• High-quality noise cancelling microphone Included (rear wired)
• CE_Playable Audio file
• AAC (*.m4a) files are playable USB
• AAC (*.aac) files are playable USB
• MP3 files are playable USB
• WMA (.wma) files are playable USB
• WAV (.wav) files are playable USB
• FLAC files are playable USB
• DSD high resolution audio format m USB
• CE_Playable Video file
• MPEG1/2 files are playable USB
• MPEG4 files are playable USB
• WMV files are playable USB
• H.264 files are playable USB
• mkv files are playable USB
• JPEG files are playable USB
• BMP files are playable USB
• PNG files are playable USB

USB Features

• USB terminal, Rear USB 2.0 (Full Speed)
• USB Type 2.0 High speed
• Drive Change
• Works with Android Auto
• Works with Apple CarPlay
• USB 1 wire Mirroring for Android
• Tag Information Display
• Album Art Display
• Repeat/Scan/Random search
• Repeat Play Folder/File/All
• Random play Folder
• Category search
• Link Search
• Resume play
• Time code display

iPod Features

• Made for iPod & iPhone *
• USB Direct Control (Audio, 1 wire, Lightning-connector)   with optional cable KCA-iP103
• Album art support
• Music library search
• Alphabet search
• Skip search
• iPod Accessory Protocol (iAP) iAP2
• iTunes Radio App iAP2
• Works with Apple CarPlay Wireless or Wired via USB
• Reverse browsing
• Voice Control using Siri.
• Bluetooth Auto Paring for iPhone
• Battery charge + power control
• * Always update to latest Apple firmware

Audio features

• Max. Output Power (MOSFET Power IC) 4 x 50W
• Pre-out 3RCA: Front/Rear/Subwoofer
• Pre-out Output Level  5V
• Volume Offset
• 2 Zone Control
• Balance/Fader Control, (via DSP)
• Loudness Control, By DSP
• Bass Boost, (Via DSP)
• Att.(-20dB) with smooth Volume Return
• Digital Sound Processor (DSP)
• Beep On/Off

Multimedia DSP Features

• Car type control Off / Compact / Sedan / Wagon / Minivan / SUV / Passenger Van
• Speaker Size & Location Control
• X'over network 3-Way / 2-way X'over / HPF / LPF
• Listening postion control / Time Alignment
• Equalizer type Graphical
• Equalizer 13-Bands
• Equalizer presets / User set 8 presets / 4 User set
• Zone Control   1 Zone / 2 Zone
• Balance & Fader Control
• Source Volulme Offset source independent
• Sound Effects

► Bass Boost

► Supreme

► Loudness

► Realizer

► Drive Equalizer

► Stage EQ

► Space Enhancer

• Audio Setup Memory

Connectivity

• iPod direct control
• USB interface Rear Side
• OEM Wired Remote Control ready , Optional interface needed
• OEM Display Control ready, Optional interface (KIM) needed
• Programmable OEM Steeringwheel Remote Function
• Display input/output control
• DC-Cord Mitsumi to ISO
• Parking sensor (handbrake) wire
• Power Control (P.CON) wire
• 2-way (Tel/Navi) mute wire
• Dimmer control wire
• Speedpuls input wire
• AV-Input 1x mini-jack (selectable: AV-in / Camera-in)
• AV Output Video: RCA / Audio: mini-jack
• Available AV-Out source AV-in / Off
• Reverse sensor wire
• Rear View Camera Input NTSC or HD-TVI input
• Front View Camera Input selectable: Front (NTSC or HD-TVI) or DashCam (NTSC)
• Front Camera / DashCam selectable
• 3rd View Camera input
• Dashcam Link
• Amplifier pre-out 3 x RCA: Front/Rear/Subwoofer
• 3rd Party TV Control (Mini-Jack)
• HDMI input Type A
• GPS Aerial Input HRS GT5-1S connector
• FM Antenna Input JASO connector
• DAB Aerial input SMB connector
• External microphone input 3,5mm mini-jack

Tuner Specifications

• FM range: 87.5Mhz - 108MHz (50Khz step) Yes
• FM Usable Sensitivity 0.8μV/75ohm (S/N 30dBf)
• FM Quieting Sensitivity 1.6μV/75ohm (S/N 15.2dBf)
• FM Frequency Response 30Hz ~ 15kHz (± 3dB)
• FM Signal to noise ratio (Mono) 65dB
• FM Selectivity(DIN)  over 80dB (±400kHz)
• FM Stereo Separation (1kHz) 45dB
• MW range: 531kHz - 1611kHz (9kHz step)
• MW Usable Sensitivity 45μV
• LW range: 153kHz - 279kHz (9kHz step)
• LW Usable Sensitivity 25μV

• Band III - Frequency range 174.928 MHz - 239.2MHz
• Mode   I, II, III, IV
• Sensitivity - 100dBm
• Signal to noise ratio 90dB
• Audio format  MPEG1 Audio Layer II, MPEG4 HE-AAC v2
• DAB Aerial Connector Type  SMB
• Output Voltage 14.4V (11V to 16V allowable)
• Maximum Current < 100 mA

• Technology Bluetooth V5.0
• Frequency 2.402 - 2.48 GHz
• Output power  +4dBm(max), power class 2
• Maximum range Line of sight approx. 10 meter
• Handsfree profile (HFP), V1.7
• Serial port profile (SPP)
• Advanced audio distribution profile (A2DP)
• Audio Codec SBC/AAC
• Audio/Video remote control profile (AVRCP), V1.6
• Phonebook access profile (PBAP)
• Multi Profile Support

USB Specifications

• USB Version compatibility USB 2.0 High Speed
• File System     FAT 16/32 / exFAT / NTFS
• Maximum Supply current 1500mA
• D/A Converter 24/32 bit
• Video Decoder MPEG1/MPEG2/MPEG4/WMV/H.264/MKV
• Audio Decoder MP3/WMA/AAC/WAV/FLAC/Vorbis
• S/N Ratio 98.5 dB (1kHz)
• Dynamic Range 89dB

Audio Specifications

• Maximum Power 50W x 4
• Output Power (DIN45324,+B=14.4v) 22W x 4
• Output frequency band 20Hz ~ 88kHz
• Preout Level 5000mV / 1kOhm,
• Preout Impedance ≤ 300Ohm
• Speaker Impedance 4Ohm ~ 8Ohm

DSP Specifications

• Frequency band 62.5/100/160/ ~ /6.3k/10k/16k Hz
• Equalizer Gain –9db ~ +9db
• Time Alignment 0 — 610cm(1 cm step)
• Speaker type - Center

► NONE

► 40mm X 70mm

► 5cm

► 10cm

► 13cm

► 16cm OVER

• Speaker type - Front

► O.E.M.

► 10cm

► 13cm

► 16cm

► 17cm

► 18cm

► 4" x 6"

► 5" x 7"

► 6" x 8"

► 6" x 9"

► 7" x 10"

• Speaker type - Rear

► NONE

► O.E.M

► 10cm

► 13cm

► 16cm

► 17cm

► 18cm

► 4" x 6"

► 5" x 7"

► 6" x 8"

► 6" x 9"

► 7" x 10"

• Speaker type - Sub woofer

► NONE

► 16cm

► 20cm

► 25cm

► 30cm

► 30cm over

• 2-Way X'over / Front/Rear (HPF) / Frequency Through, 30/40/50/ ~ /220/250 Hz
• 2-Way X'over / Front/Rear (HPF) / Slope -6/-12/-18/-24 (dB/oct)
• 2-Way X'over / Subwoofer (LPF) / Frequency30/40/50/ ~ /220/250 Hz, Through
• 2-Way X'over / Subwoofer (LPF) / Slope -6/-12/-18/-24 (dB/oct)
• 3-Way X'Over / High Pass Filter Frequency  Through, 30/40/50/ ~ /220/250 Hz
• 3-Way X'Over / High Pass Filter Slope -12/-18/-24 (dB)
• 3-Way X'Over / Low Pass Filter Frequency 30/40/50/ ~ /220/250 Hz, Through
• 3-Way X'Over / Low Pass Filter Slope -12/-18/-24 (dB/Oct
• Subwoofer Level -50dB ~ 10dB
• Car type control

► Off

► Compact

► Sedan

► Wagon

► Minivan

► SUV

► Passenger Van

Video Specifications

• Color System of External Video Input NTSC/PAL
• External video input level (mini-jack) 1 Vpp / 75 Ohm
• External audio max. input level (mini-jack)   2 Vpp / 25 kOhm
• Video input level (RCA) 1 Vpp, 75 Ohms
• Video Output Level (RCA) 1 Vpp / 75 Ohm
• Audio Output Level (mini-jack) 0.9 Vpp / 10 kOhm
• HDMI - VGA input resolution. 640x480p @59.94Hz/60Hz
• HDMI - 480p input resolution 720x480p @59.94Hz/60Hz
• HDMI - 720p input resolution1280x720p @59.94Hz/60Hz
• HDMI - input Audio type 16/20/24-bit Linear PCM

Monitor Specifications

• Screen size (Diagonal) 6.95 Inches Wide
• Screen Size (WxH) 156.6 x 81.6mm
• Display system Transparent TN LCD Panel
• Drive system   TFT Active Matrix System
• Number of Pixels 1152000pixels (800(H) x 480(V) x RGB)
• Effective pixels 99.99%
• Pixel arrangement RGB Striped
• Back lighting  LED (Light Emitting Diode)

General Specifications

• Operating voltage 14.4V (11 ~ 16V Allowable)
• Dimensions (WxHxD) 178 x 100 x 155mm
• Weight 1700 gr.

Accessories

• Bracket: 2 pieces
• cover: 2 pieces
• Escutcheon
• DC cord (Mitsumi to ISO) 20 cm
• GPS antenna with 3.5 m cable
• GPS Antenna Ground Plane Mount (Adhesive Metal Pad)
• Handsfree Microphone with 3 m cable
• Multi-Language Instruction Manual Included Quick-Guide + Instruction manual
• Manuals Downloadable
