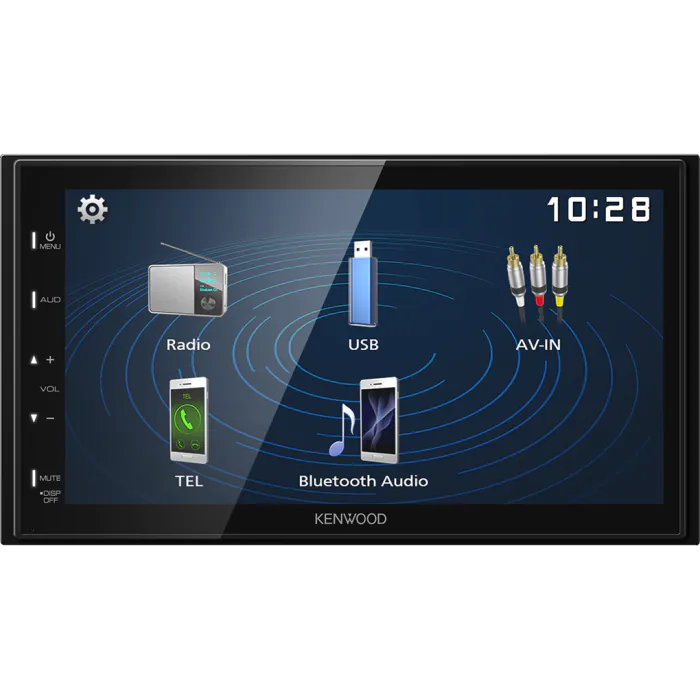

Kenwood DMX129BT - 6.8" Mechless Android Mirroring Bluetooth USB Car Stereo

Key Features

• 6.8 "WVGA capacitive touch panel with sharp, high-contrast images, vivid colors and wide viewing angles.
• Bluetooth(R) Wireless Technology for hands-free calls and music streaming. (Available functions depend on cell phone).
• Supports Android USB Mirroring for seamlessly displaying and controlling your smartphone on the large screen.
• Rear, High Speed USB type-A port. Up to 1.5A Max Charge.
• MP3-WMA-AAC-WAV-FLAC audio file playback.
• MPEG1/2-MPEG4-H.264-MKV video file playback.
• Time Alignment & 13-Band EQ for optimal sound tuning enhancements
• 2 Preouts(front/rear) + sub(mono) to connect external amplifiers and improve your sound system.
• AV-in, Video-out and dedicated rear view camera input with parking guide lines
• Short body (75mm) for easy installation in a wider range of cars.

General Features

• DIN Size 2 DIN
• Smooth GUI
• Key Illumination White
• Touch sensor
• Touch Sensor Tone
• Optional IR remote controller, KNA-RCDV331
• Digital Clock (24H)
• ISO connector
• Built-in Bluetooth
• Android USB Mirroring

Monitor Features

• LCD type 6,8 inch Wide VGA
• LCD backlight LED
• Display Mode 3 Mode (Normal(default) / 16:9 / 4:3)
• Screen adjust: Brightness
• Screen adjust: Tint (Only NTSC)
• Screen adjust: Colour
• Screen adjust: Contrast
• Dimmer Level "High" (Default) / "Mid" / "Low"
• Touch Panel Capacitive
• Display Type Clear
• NTSC/PAL judge (Auto)
• Display Off Mode

Multimedia GUI Features

• OSDC Type Graphic
• Demonstration Mode
• Opening Screen Type standard
• R-CAM interrupt
• R-CAM Caution On Screen Display
• R-CAM Parking Guide Lines , Built-in, customizable
• Menu text in selectable language English(Default), Espagñol, Français, Deutch, Italiano, Nederlands, Suomi, Russian, Português, Polski, Türkçe, Cestina, Magyar.

Tuner Features

• Station Select List
• FM Reception
• AM Reception, (MW Reception)
• Tuning mode
• Auto1 / Manual
• Up/Down Seek/Scan
• Tuner Presets (FM/AM)
• 30 Presets (18FM / 12AM)
• Automatic Memory Entry (AME)
• Radio Data System
• Traffic Information
• Local search
• Auto TP search
• Enhanced Other Networks Function (EON)
• Program Type Function (PTY)

Bluetooth General Features

• Max num. of regist. phones for HFP & A2DP 8 phones
• Hands Free Profile (HPF) V1.6
• Audio Streaming (A2DP), (SBC)
• Phonebook Access Profile (PBAP)
• Number of PBAP entries
• Up to 1000 phonebook entries PBAP call history
• Up to 50 entries of dialed, received and missed calls Voice Control
• Noise Canceller
• Echo Canceller
• High-quality noise canceling microphone included
• Playable Audio File
• AAC (*.m4a) files are playable
• USB AAC (*.aac) files are playable
• USB MP3 files are playable
• USB WMA (.wma) files are playable
• USB WAV (.wav) files are playable
• USB FLAC files are playable
• USB CE_Playable Video file
• MPEG1/2 files are playable USB
• MPEG4 files are playable USB
• H.264 files are playable USB
• mkv files are playable USB

USB Features

• Rear USB Terminal
• USB Type 2.0 High speed
• USB Mirroring for Android
• Install "Mirroring OB for KENWOOD" from Playstore
• Tag Information Display
• Album Art Display
• Repeat/Scan/Random search
• Repeat / Random Play
• Repeat Play Folder / File
• Random play Folder
• Time code display
• 1,5A Smartphone Quick Charge

iPod Features

• Connection via:
• USB / BT
• Plug & Play
• Made for iPhone
• Tag Information Display
• Time Code Display
• List Access
• Album art support
• Random Play
• Repeat Play
• Skip
• iAP over Bluetooth

Audio features

• Max. Output Power (MOSFET Power IC) 4 x 45W
• Pre-out 2 Stereo RCA (Front/Rear) + 1 Mono RCA (Sub)
• Pre-out Output Level 2V
• Low Pass Filter (LPF), Subwoofer Freq. Control
• Subwoofer Reference Level Adj.
• Balance/Fader Control
• Beep On/Off

Multimedia DSP Features

• Position Control
• Position Preset 4 Presets
• Graphic Equalizer 13 bands
• G-EQ auto setting
• G-EQ manual setting
• G-EQ Number of Preset
• Preset x 8 + User set x 3 / All SRC
• Time Alignment 0 ~ 610cm
• High Pass Filter (HPF)
• HPF Cut Off Frequency 14
• HPF Cut Slope Level 4 steps
• Low Pass Filter (LPF) (Non-Fading)
• LPF Cut Off Frequency 14
• LPF Cut Slope Level 4 steps
• Channel Level Control
• Loudness
• Bass Boost
• X'over network

Video Features

• Audio Video Output
• Audio/Video Input
• Video-In for Rear-view Camera 1 dedicated video input (RCA)
• Parking Guide Line

Connectivity

• USB interface 1x Rear
• OEM Wired Remote Control ready
• Programmable OEM Steeringwheel Remote Function
• Parking sensor (handbrake) wire
• 2-way (Tel/Navi) mute wire
• AV-Input (Non Switchable) (RCA)
• AV Output Video only (RCA)
• Reverse sensor wire
• Rear View Camera Input Dedicated RCA Video-in
• FM Antenna Input JASO connector
• External microphone input 3,5mm mini-jack

Tuner Specifications

• FM range: 87.5Mhz - 108MHz (50Khz step)
• FM Usable Sensitivity 1.8μV/75ohm (S/N 16.2dBf)
• FM Quieting Sensitivity 19.2μV/75ohm (S/N 46dBf)
• FM Frequency Response 30Hz ~ 14kHz (± 3dB)
• FM Signal to noise ratio (Mono) 50dB
• FM Stereo Separation (1kHz) 35dB
• MW range: 531kHz - 1611kHz (9kHz step)
• MW Usable Sensitivity 99μV

Bluetooth specifications

• Technology Bluetooth V5.0
• Frequency 2.402 - 2.48 GHz
• Output power +8dBm(AVE), power class 1
• Maximum range Line of sight approx. 10 meter
• Handsfree profile (HFP), V1.6
• Advanced audio distribution profile (A2DP), V1.2
• Audio Codec SBC/AAC
• Audio/Video remote control profile (AVRCP), V1.5
• Phonebook access profile (PBAP), V 1.2

USB Specifications

• USB Version compatibility USB 2.0 High Speed
• File System FAT 16/32 / exFAT / NTFS
• Maximum Supply current 1500mA
• D/A Converter 24bit
• S/N Ratio 99 dB (1kHz)
• Dynamic Range 99dB

 Audio Specifications

• Maximum Power 45W x 4
• Output Power (DIN45324,+B=14.4v) 16W x 4
• Preout Level 2000mV / 10kOhm,
• Preout Impedance ≤ 1400Ohm
• Speaker Impedance 4Ohm ~ 8Ohm
• Graphical Equalizer 13-Band
• G. EQ. Frequency (Hz) 62,5Hz - 16kHz
• G. EQ. Gain (dB) +/- 9dB
• Low Pass Filter Frequency (Hz) 80 / 120 / 160 / Off

Video Specifications

• Color System of External Video Input NTSC/PAL
• External Video Input Level (RCA) 1 Vpp / 75 Ohm
• External Audio Max. Input Level (RCA) 1.5 V / 25 kOhm
• Video Output Level (RCA) 1 Vpp / 75 Ohm

 Monitor Specifications

• Screen size (Diagonal) 6.75 Inches Wide
• Screen Size (WxH) 151.8 x 79.7mm
• Display system Transparent TN LCD Panel
• Drive system TFT Active Matrix System
• Number of Pixels 1152000pixels (800(H) x 480(V) x RGB)
• Effective pixels 99.99%
• Pixel arrangement RGB Striped
• Back lighting LED (Light Emitting Diode)

General Specifications

• Operating voltage 14.4V (10.5 ~ 16V Allowable)
• Maximum Current Consumption 10A
• Dimensions (WxHxD) 182 x 112 x 75mm
• Weight 1300 gr.

Accessories

• Release keys 2 pieces
• Escutcheon
• Installation Sleeve
• Handsfree Microphone with 3 m cable
