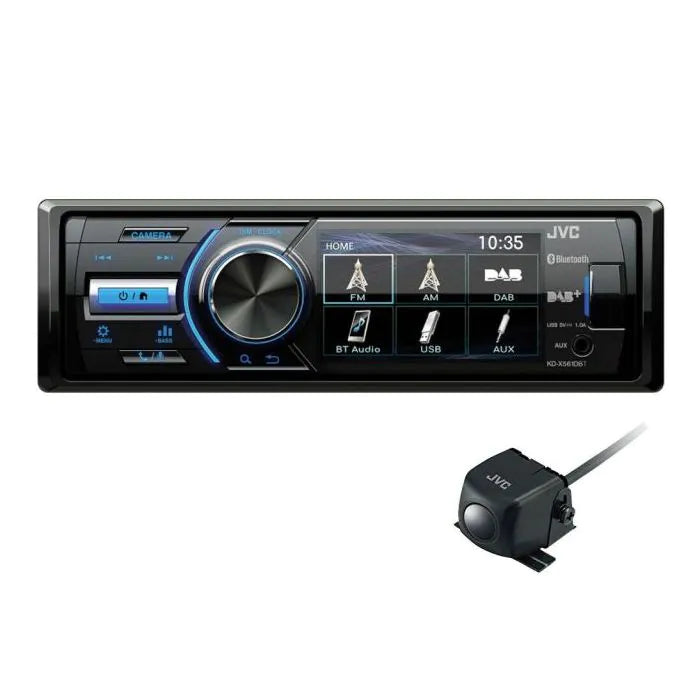

JVC Mechless Bluetooth Radio DAB USB iPod Aerial & Reverse Camera

Package Includes:

• JVC KD-X561DBT Mechless MP3 Car Radio With Bluetooth DAB USB iPod Aux In
• DAB A1 Aerial Antenna
• JVC KV-CM30 Universal CMOS Sensor Reversing Camera

JVC KD-X561DBT Digital Media Receiver with 3-inch Monitor, Built-In DAB Tuner and Built-in Bluetooth® Wireless Technology

DAB+ Tuner
DAB (Digital Audio Broadcasting) delivers crystal clear audio from your favourite FM stations as well as a broad range of digital-only stations ranging from news and talk, to classical and rock. Normally, DAB+ is delayed by a few seconds compared to the FM broadcast.
The unit will delay the FM in order to provide seamless switching between DAB+ and FM.

Enjoy both better quality and richer content with DAB+.

3-inch Color TFT with Dedicated “CAMERA” Key

3-inch Display
JVC's new 3" Touch Panel features high-resolution QVGA display. that can display multiple video file formats and gives you the posibility to display a rear view carmera.

Rear View Camera Input
Linked with the reverse gear, the display automatically switches to the view from the rear camera.

Independent “CAMERA” Key
With an optional rear camera connected, you can check the backward situation any time by just pressing the "CAMERA" key.

* The KV-CM30 rear view camera is an additional option.

Bluetooth
Bluetooth Hands-Free Profile
HPF Wideband Speech is supported, so you can now enjoy hands-free phoning convenience together with higher voice quality and improved noise reduction.

Bluetooth AVRCP for Versatile Song Selection
In addition to repeat and random playback of music files, you can also easily search for songs using the browsing function. Just look for and choose songs you want to hear from the folder name and song name lists.

Audio Features

9-Preset EQ and 13-Band Graphic EQ
With 9-Preset EQ patterns to choose from, it's easy to create the sound you like, based on musical genre or your personal preference. What's more, with 13-band Graphic EQ you can set the levels of Bass, Mid and High individually to finely adjust the sound and further optimize your listening environment.

Time Alignment
By setting the time delay on each speaker, the receiver will automatically adjust the timing of the sound output from each of the speakers so that the sound from each of the speakers will arrive exactly at the same time to the listening position.

DAB AERIAL REQUIRED DAB RADIO TO FUNCTION INCLUDED

Features

• Rear View Camera Input
• Steering Wheel Remote Ready
• Bluetooth(R) Wireless Technology (Built-in)
• Media Playback: MP3 / WMA / m4a, AAC / WAV / FLAC / Ogg / JPEG, PNG, BMP
• DAB+ Tuner built-in
• Dimmer Control
• AUX Input (Front / Mini jack)
• 3 Pre-Output Terminal
• 13-Preset EQ
• Front USB
• Sound DSP with DTA
• Bluetooth Audiostreaming A2DP and AVRCP 1.5
• 3-inch QVGA Monitor
• Made for iPod / iPhone
• Video Playback Formats: MPEG1/2/4, H264 and MKV
• Short Body

Monitor

• Screen Size 3.0" 16:9 QVGA
• Key Illumination Color Blue
• Multilingual Display

Media Playback

• MP3 Compatible with Tag
• WMA Compatible with Tag
• WAV Compatible with Tag ( Up to 96kHz/24bit )
• AAC Compatible with Tag
• FLAC Compatible with Tag ( Up to 96kHz/24bit )
• H.264 Compatible
• MPEG 1/2 Compatible
• MPEG 4 Compatible
• AVI/MKV Compatible
• JPEG File Playback
• PNG File Playback
• BMP File Playback

Bluetooth Control

• Built-In Bluetooth (Version 3.0, Wired-Mic included)
• Hands Free Call (HFP1.5 Wideband Speech)
• Audio Streaming & Control (A2DP, AVRCP)
• Phone Book Access Profile (PBAP)

Android Control

• Android Music Playback (via Bluetooth(R))

iPod/iPhone Control

• iPod/iPhone Music Playback (via USB or Bluetooth(R))

USB

• MP3/WMA Compatible with ID3 Tag/WMA Tag
• WAV Compatible with Tag
• FLAC Compatible with Tag
• AVI/MKV Compatible
• JPEG/MPEG 1/2 Compatible
• MPEG-4 Compatible
• USB Port x 1 (High speed)
• Position Front
• USB Power Supply (1.0A)

Radio Tuner

• Radio Data System
• Preset Stations 30 (FM:15, AM:15)
• DAB+ Built-in
• Frequency Range Band lll: 174.928MHz to 239.200MHz
• FM
  • Frequency Range 87.5 - 108.0MHz
• AM
  • Frequency Range (MW) 531 - 1,611kHz, (LW) 153 - 279kHz

Audio

• Maximum Power Output (Front & Rear) 45W x 4
• Full Bandwidth Power (Front & Rear) 16W x 4
• EQ (13-Band Graphic EQ)
• Preset EQ (9-Preset)
• High-Pass Filter/Low-Pass Filter
• Bass Boost

Inputs and Outputs

• Pre-output Level/Impedance 2.0V / 10k ohms
• Front AUX Input
• Rear view camera Input
• Line Output Terminals 3 Pairs (Front + Rear + Subwoofer)

General

• Short Body
• Wireless Remote Control Ready (RM-RK258 required)
• Steering Remote Control Ready
• ISO Connector
• Dimensions (W x H x D)
• Installation Size 182 x 52 x 117 (mm)
• Unit weight in individual package 1.18kg
• Weight 0.75kg : inlcuding sleeve

CMOS Sensor Reversing Camera - JVC KV-CM30

JVC rear-view camera. High quality, waterproof colour camera for rear-view and reversing applications.

• Waterproof design
• 1/4" color CMOS sensor with effective 380,000 pixels
• Flexible mounting bracket included
• Camera dimensions (WxHxD): 23.4mm x 23.4mm x 23.9mm
• Weight: 21g (Camera only)

General Specifications:

• Operating voltage 14.5V (9 ~ 16V Allowable)
• Current Consumption 0.05A
• Dimensions Main Unit (WxHxD) 23.4 x 23.4 x 23.9mm
• Operation Temperature Range -30°C ~ 70°C
• Storage Temperature Range -40°C ~ 80°C
