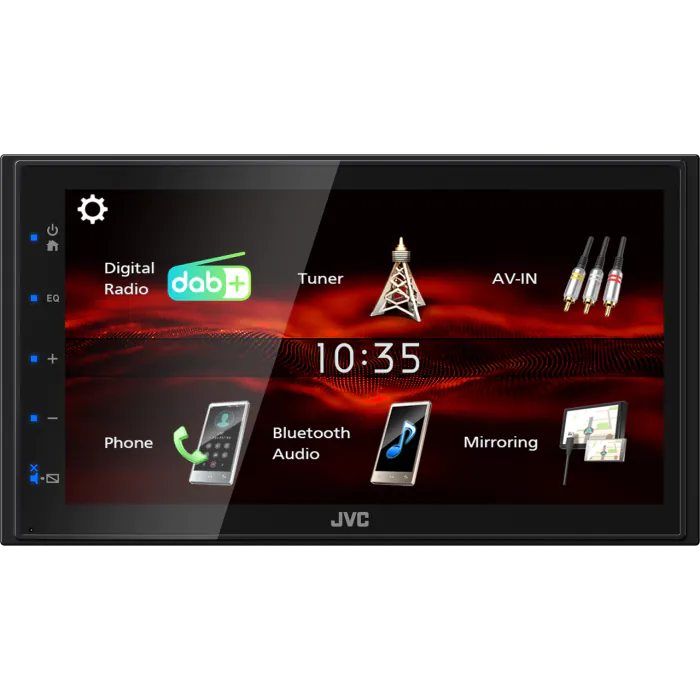

JVC KW-M180DBT - 6.8” Touchscreen Digital Media AV Receiver Built-In DAB Bluetooth Stereo

Monitor

• Screen Size 6.8 inches (diagonal) wide
• Touch Control
• Panel Type Capacitive with Printing
• Display System TN LCD panel
• Drive System TFT active matrix system
• Number of Pixels 1,152,000 (800 x 480 x RGB)
• Effective Pixels 99.99 %
• Pixel Arrangement RGB striped arrangment
• Back Lighting LED
• Key Illumination Colour Blue
• Dimmer "High" (Default) / "Mid" / "Low"
• Multilanguage Display

Radio Tuner

• DAB+ Tuner
• DAB+ Frequency Band III 174928MHz to 239200MHz
• DAB-DAB / DAB-FM Auto Switch
• FM Tuner
• Radio Data System (RDS)
• FM Frequency Range 87.5-108.0MHz
• AM Tuner
• AM Frequency Range 531kHz ~ 1611kHz (9kHz Frequency Step)
• Preset Stations 30 (6ch x 5band)
• Automatic Preset / SSM

Media Playback

• Audio Decoder
• MP3 Compatible with Tag USB
• WMA Compatible with Tag USB
• WAV Compatible with Tag USB
• AAC Compatible with Tag USB
• FLAC Compatible with Tag USB
• Video Decoder
• MPEG-1 / MPEG-2 Compatible USB
• MPEG-4 Compatible USB
• H.264 Compatible USB
• MKV Compatible USB
• AVI/MKV Compatible USB

USB

• USB Port(s) x 1
• Location Rear
• USB Standard 2.0 Full Speed (High Speed)
• File System FAT16 / FAT32 / exFAT / NTFS
• USB Mass Storage Class
• Tag Information Display
• Album Art Display
• List Access
• Random / Repeat Play
• Skip
• Time Code Display
• Last Position Memory / Resume
• Digital / Analog Converter (DAC) 24 bit
• Frequency Response 20 Hz ~ 20kHz
• 1.5A Max. Power Supply Current

Bluetooth®

• Bluetooth Technology V 5.0
• Built-In Bluetooth [1]
• Bluetooth® Version 5.0
• Voice Dialing [2] * Voice recognition compatible mobile phone required
• Supported profiles
• Multi profile
• Hands Free Call (HFP)
• (HFP1.6 Wideband Speech)
• Advanced Audio Distribution Profile (A2DP) V1.2
• Audio/Video Remote Control Profile (AVRCP) V 1.5
• Phone Book Access Profile (PBAP)
• Audio Codec AAC / SBC
• Noise Canceller (Auto)
• Echo Canceller (Auto)
• Wired Microphone included

Android Control

• USB mirroring for Android  (via USB)
• Android Music Playback [3] (via Bluetooth(R))

iPod/iPhone Control

• iPod/iPhone Music Playback (via USB or Bluetooth(R))
• iPod/iPhone Mode (2-Way Control Mode) (USB)
• Random/Repeat Play
• Battery Charge (USB: 1.5A High Current Charging)
• App(s) Mirroring OB for JVC

Audio

• Maximum Power Output (Front & Rear) 45Wx4
• Full Bandwidth Power (at less than 1%THD) 16W x 4
• Speaker Load Impedance 4 ohms (4 - 8 ohms allowable)
• Output Frequency Band 20 - 20,000Hz
• EQUALIZER 13-Band Graphic EQ
• Preset EQ
• Preset x 7 + User set x 3 / All SRC
• High-Pass Filter/Low-Pass Filter
• Digital Sound Processor (DSP)
• Time Alignment
• Loudness Control
• Bass Boost (Hyper Bass System)

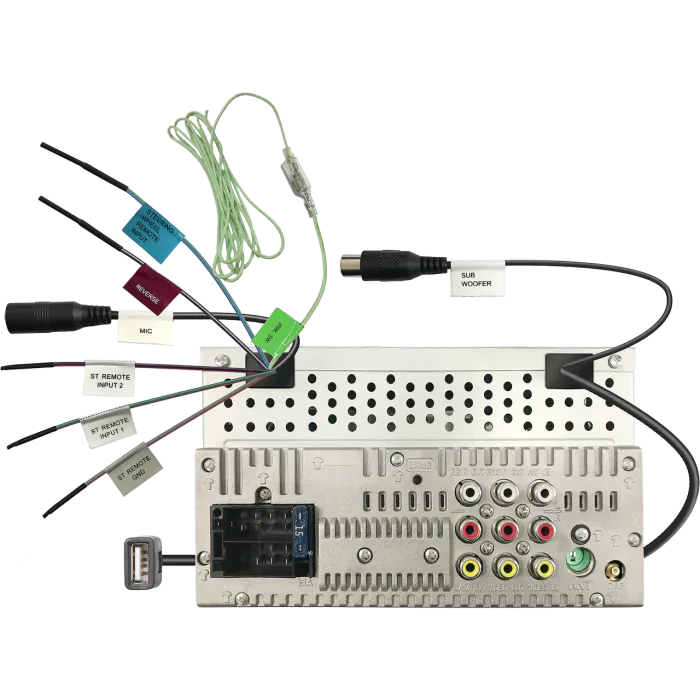

Inputs and Outputs

• Audio Inputs and Outputs
• Pre-Out Terminals
• Front (L+R), Rear (L+R), Subwoofer (mono)
• Pre-Output Level 2V / 10kΩ
• Pre-Out Impedance 1,4 kΩ
• Pre-Out Level/Impedance 2.0V / 10kΩ
• Subwoofer Output with Level/Frequency Control
• Video Inputs and Outputs
• Video Input Level/Impedance 1.0Vp-p/75Ω
• AV Input RCA x 1
• Video Out RCA
• Colour System NTSC/PAL Video Output Level/Impedance 1.0Vp-p / 75 ohms
• Camera inputs Rear view camera Input

General

• DAB Antenna Input
• Wireless Remote Control Ready (RM-RK258 required)
• Wired Steering Remote Control Ready
• Learning Direct OEM Remote
• ISO Connector Cable
• Short Chassis
• Operation Voltage 12 VDC
• Dimensions (W x H x D) 178 x 100 x 75 mm
• Installation Size (W x H x D) 182 x 112 x 75 mm
• Weight 1.3kg ( Including Sleeve and Trim plate)
