Description

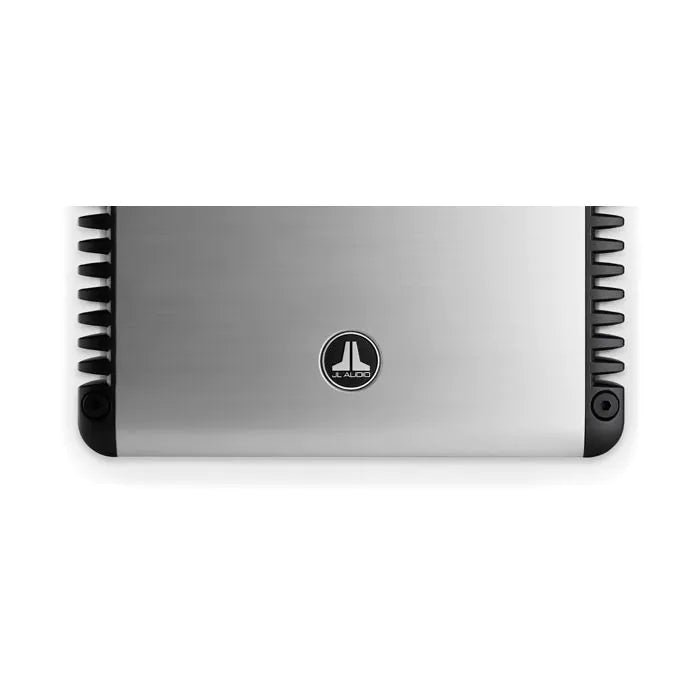

xMonoblock Class D Wide-Range Amplifier, 1200 W x 1 @ 1.5-4 Ω
Our most powerful HD amplifier employs our advanced Single-Cycle Control switching design and R.I.P.S. technology to deliver 1200 W of clean power into any impedance between 1.5 and 4 Ω, giving you the highest degree of flexibility in designing your subwoofer system. Tight power supply regulation keeps distortion down and maximizes your bass quality. From a pure sound quality perspective, we invite you to compare the real-world, in-car performance of this amplifier to any other amplifier on the market, of any type, at any price.
While targeted primarily to subwoofer applications, the HD1200/1 is a wide-range amplifier and can also be used to drive high-performance mid-range speaker systems.
This amplifier features a brushed aluminum finish with black powder-coated cast alloy heat sinks and bottom panel. A black powder-coated, gasketed cover is also provided to protect the controls.
- Rated Continuous (RMS) Power @ 14.4 V
- @ 4 Ω 1200 W RMS x 1
- @ 3 Ω 1200 W RMS x 1
- @ 2 Ω 1200 W RMS x 1
- @ 1.5 Ω 1200 W RMS x 1
- Rated Continuous (RMS) Power @ 12.5 V
- @ 4 Ω 1200 W RMS x 1
- @ 3 Ω 1200 W RMS x 1
- @ 2 Ω 1200 W RMS x 1
- @ 1.5 Ω 1200 W RMS x 1
- General Specifications
- Frequency Response 6 Hz - 8 kHz (+0, -1dB)
- S/N Ratio, referred to highest rated power >110 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
- S/N Ratio, referred to 1 W (Main Channels) >79 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
- Damping Factor @ 4 Ω >500 / 50 Hz
- Damping Factor @ 2 Ω >250 / 50 Hz
- THD+N @ Rated Power (Main Channels) <0.03% @ 4 Ω
- Input Voltage Range @ RCA Inputs
- Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High)
- Min.Copper Power / Ground Wire Gauge 2 AWG wire
- Fuse Rating 100 A (AFS, AGU or MaxiFuse™)
- Rated Power: 1200 W RMS @ 1.5 ohm - 4 ohm (11V-14.5V)
- THD at Rated Power: 111 dBA below rated power
- (A-weighted, 20 Hz - 20 kHz noise bandwidth)
- Frequency Response: 6 Hz - 8 kHz (+0, -1dB)
- Damping Factor: >500 @ 4 ohm / 50 Hz
- >250 @ 2 ohm / 50 Hz
- Input Range: Switchable from 200mV-2V RMS to 800mV-8V RMS
- Dimensions (L x W x H): 10.74 in. x 8.29 in. x 1.93 in.
- 273 mm x 211 mm x 49 mm
- (Width Measurement Includes Plugs)
