Description

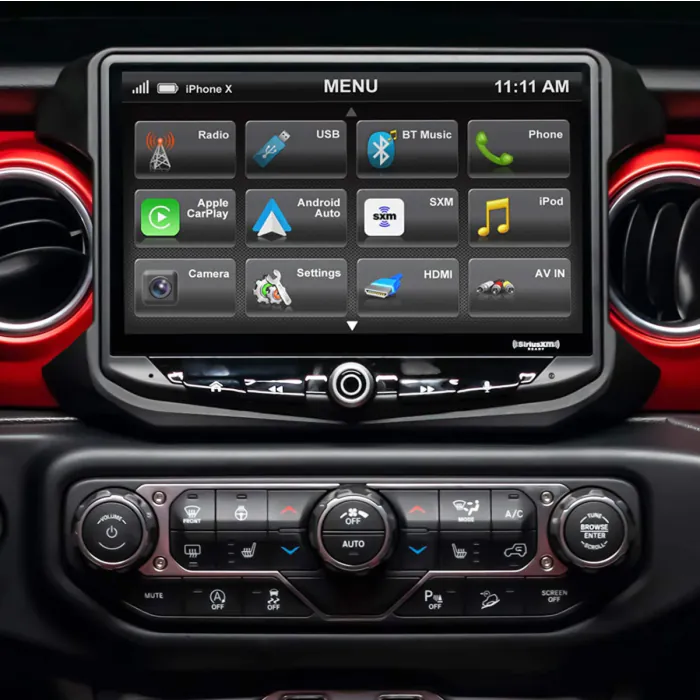

xUpgrade your Jeep Wrangler JL or Gladiator JT radio with a 10-inch, flush-mount touchscreen infotainment system from Stinger Electronics. Retain key OEM features. All in one easy-to-install, plug-and-play package.
What's in the Box
- HEIGH10 10-inch touchscreen display/infotainment system
- Vehicle-matched radio mounting dash kit
- Vehicle specific plug-n-play harnessing
- AM/FM antenna adapter
- USB retention cable
- Stereo connection lead
Features
- High-resolution, 10-inch capacitive touchscreen with 16.7 million colors for a visually immersive experience.
- Modular design of the display and main tuner box for flexible installation in space-limited applications.
- Anti-Glare and Anti-Reflection technology for optimal outdoor visibility.
- Customizable RGB illumination to match factory illumination or create your personalized display.
- Seamless access to smartphone music and navigation capabilities.
- Apple CarPlay and Google Android Auto compatibility for enhanced connectivity.
- DAB+ Digital Radio tuner for a wide range of radio stations.
- AM/FM radio with PTY (Program Type) for easy channel selection.
- Built-in MicroSD card for convenient storage and playback of media files.
- 2 USB rear inputs with 1.5-Amp output for charging devices.
- HDMI input for connecting external devices.
- Hands-freeHands-free Bluetooth 4.2 A2DP with aptX for hands-free calling and high-quality music streaming.
Integration
- The included dash kit and mounting ensure a seamless and factory-like installation, giving your vehicle's HEIGH10 display a professional and integrated look.
- The vehicle-specific harness establishes a direct and secure connection between your vehicle and the HEIGH10, ensuring compatibility and optimal performance.
- The interface offers enhanced control over your Volkswagen infotainment system, allowing you to easily manage camera triggers and conveniently operate the system using your steering wheel controls.
Vehicle Feature Retention
- Enhanced steering wheel control functionality allows you to navigate through menus and adjust settings without taking your hands off the wheel.
- Phone button compatibility ensures you can easily access your phone's features, make calls, and stay connected on the go.

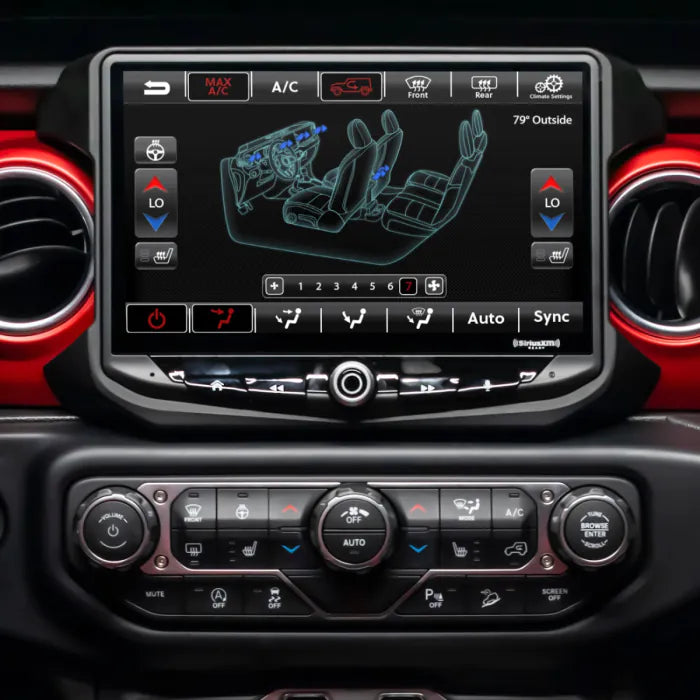

- Climate control visualization provides an intuitive and user-friendly interface for adjusting temperature, fan speed, and other settings from your HEIGH10 display.
- Park assist audio and graphics provide real-time feedback and guidance to help you confidently navigate tight parking spots and avoid obstacles.

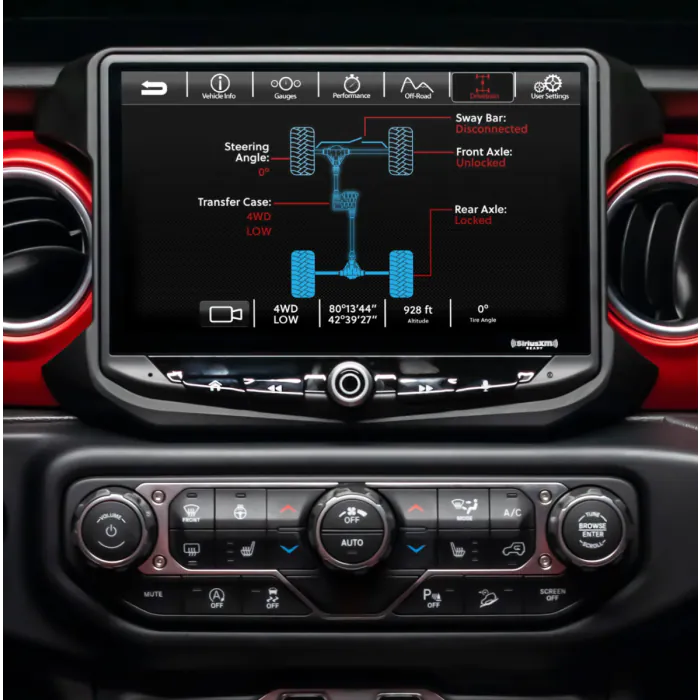

- Vehicle menus on your HEIGH10 display, including Electronic Stability Control system, Tyre Information, Driver Assistance, Light Settings, Mirrors & Wipers, Time & Date Configuration, Multifunction Display, Parking & Manoeuvring, Unit Displays, and Service Information.
- Outputs for speed pulse, reverse gear, park brake, and mute functionalities ensure seamless integration and compatibility with your vehicle's existing systems.
- Supports a factory and/or aftermarket camera feed for a clear and high-definition view of your surroundings, maximizing safety and convenience.
- Clarity of full high-definition imagery with support for all factory cameras, providing you with sharp visuals and enhanced visibility in any driving situation.
Specifications
General
- Recording Resolution 1024 x 600
- Screen Size 10 inches
- Model Number UN1810E-
- UPC 5056171543797
- Manufacturer's Warranty 1 year
- Operating Voltage Negative Ground
- Max Current Consumption 10A fused
Radio Module Dimensions
- Width 178 mm
- Height 100 mm
- Depth 116 mm
Display
- Display W247.2 mm x H180.6 mm x D48.5 mm
- Display 10-inch Diagonal
- Aspect Ratio 16:9
- Resolution 1024 x 600
- Pixels 1,843,200
- Active Area W222.72 mm x H125.28 mm
- Operating Temperature (C) -20° to 70°
Audio
- Load Impedance 4Ω nominal / 2Ω allowable
- Continuous Power Output. 25W x 4ch/4Ω 20Hz to 20KHz, 1%THD at 14.4V
- Audio Output Level (max) 4.0V preout
- EQ (15-band) 25Hz/40Hz/63Hz/100Hz/160Hz/250Hz/400Hz/ 630Hz/1KHz/1.6KHz/2.5KHz/4KHz/6.3KHz/ 10KHz/16KHz
- HPF 25Hz/40Hz/63Hz/80Hz/100Hz/160Hz/250Hz
- Slope 6dB, 12dB, 18dB
- Gain -14dB to 7dB (1dB/step)
- Phase 0 or 180
- Speaker Level ±9dB (1dB/step)
- Time Alignment 0 to 133 step (inch/ms)
- Subwoofer Preout LPF 25Hz/40Hz/63Hz/80Hz/100Hz/160Hz/250Hz
USB
- USB 2.0
- Max Current Supply 1.5A
- USB Class MSC (Mass Storage Class), and MTP (Media Transfer Protocol)
- File System FAT32, NTFS
- BLUETOOTH V4.2 Dual
- Camera(s) Video Input 2.4GHz to 2.48GHz
- Video Formats NTSC OR PAL
HDMI Input
- Supported HDMI Resolutions 640*480p, 720*480p, 1280*720p, 1920*1080i, 1920*1080p
TOSLINK
- Output 48khz Variable
- Background Image (User)
- File Format JPG / PNG
- Resolution 1024 x 600
- File size is not limited
Audio Formats
- MPEG-1 Audio Layer-3 (.mp3)
- FLAC (.flac)
- MPEG-2 Advanced Audio (.aac)
- MPEG-4 Audio (.m4a)
- Windows Audio (.wav)
- OGG Audio (.ogg)
Video Format
- QuickTime (.mov)
- MPEG-4 Video (.mp4)
- Microsoft AVI (.avi)
- MPG Video (.mpg)
- MPEG Video 1/2 (.mpeg)
- VOB DVD (.vob)
- Flash Video (.flv)
- Image
- JPEG (.jpg)
- CompuServe GIF (.gif)
- PNG (.png)
- JPEG (.jpeg)
- Bitmap(.bmp)
Compatability:
- Jeep Wrangler JL 2018-2023
- Jeep Gladaitor JT 2018-2023
