Description
xPowerful DSP with the excellent sound quality you expect from Hertz
Hi-Res audio (96 kHz/24-bit native resolution) for unparalleled audio quality • 6-channel SPEAKER IN (2,5 – 21 Vrms) on a dedicated socket with a built-in USS (Universal Speakers Simulator) • SPDIF coaxial input (up to 24bit/96KHz) • 8-channel / 4Vrms-capable RCA outputs • Signal Output Active Limiter prevents clipping

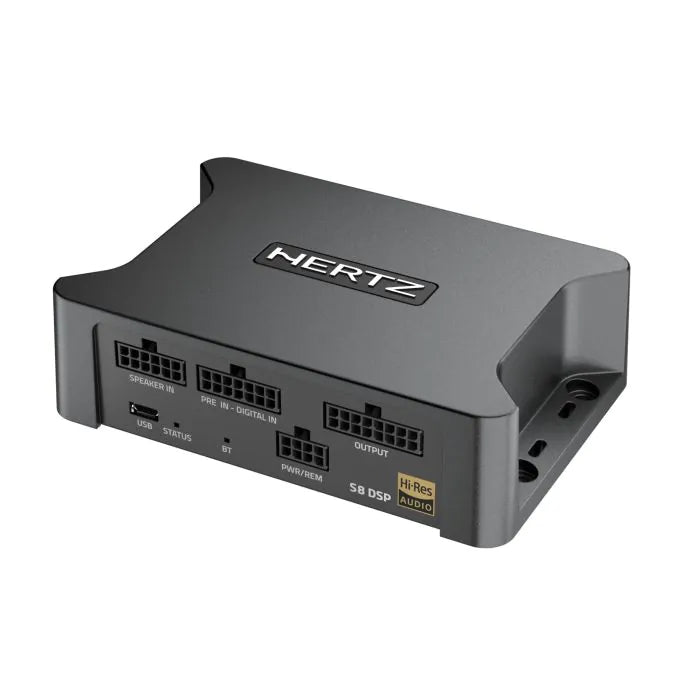

Hertz S8 DSP processor
S8 DSP is a distilled essence of technology at the service of the highest audio quality in a corrosion-free case cast in metal and composite materials. S8 DSP processes the audio signal with 96 kHz / 24-bit resolution and has obtained the Hi-Res certification from the JAS (Japan Audio Society), an acknowledgment that certifies the extreme level of audio performance achieved. The powerful 32-bit DSP manages 6 high/low-level analog input channels, one digital coaxial input, and 8 output channels, offering maximum freedom of configuration to the specialist. The SPDIF coaxial input is ideal for digital connection with a Hi-Res player, a solution that allows for maximum listening quality. For each of the eight output channels we have a level control, the 15-pole parametric equalizer, time delays, and crossover filter available. The 7-band parametric equalizer of the input signal allows obtaining a flat response from OEM sources, which have an exaggerated emphasis on the low frequency.
Hi-Res audio, Bluetooth 5.0, ULTRA COMPACT, APP CONTROL

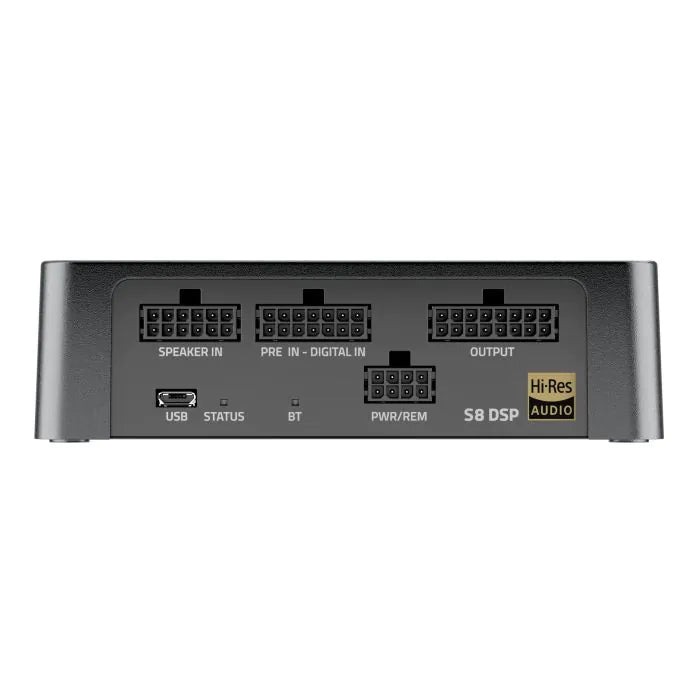

Hi-Res audio (96 kHz/24-bit native resolution) for unparalled audio quality. Upload a setup file via BT through the Bluetooth 5.0* APP when in “Configurator” or “DRC” mode. *Music streaming not supported, Compact size featuring all connections on one side to be installed anywhere. Configurable with a PC, a Mac, an Android device, or an iOS device IOS/Android control APPs (Bluetooth 5.0) DRC control over app from iOS/Android devices
Specification
- Nominal Power supply voltage / fuse: 7 - 20 VDC / 1A
- Pulse operating voltage: 5 - 24 VDC
- Idling current: 0.34 A
- OFF current (ART= OFF): <80 uA
- OFF current (ART= ON): <80 uA
- Remote IN 6 - 20 VDC (10 mA)
- Remote OUT 4 - 20 VDC (150 mA)
- ART - Automatic Remote Turn on/off from BTL speaker outputs (selectable): 1.5 - 7 VDC
- Analog outputs (rca): 8 channels
- Max output level (rms) @ 0.05% THD: 4V 95dBA
- Analog output management The DSP controls each output channel: gain, crossover, EQ, delay, polarity
- Bandwidth: 10Hz – 40KHz (+/-3db)
- Signal to noise ratio (A weighted): 105dBA (Analog Input) 112dBA (Digital Input)
- THD+N (@ 1Vrms out, @ 1Khz): <0.005%
- Crosstalk (channel separation) @ 1KHz: >95dBA
- Analog low level Inputs: 6 ch. (Differential input) (Molex microfit to RCAs)
- Analog high level Inputs: 6 ch. (Differential input) (Molex microfit to tripped ends) + USS (Universal Speakers Simulator)
- Digital inputs: Yes (Coaxial SPDIF; up to 24bit 96KHz) (Molex microfit to RCA)
- Input sensitivity (low level): 0.8V – 6V RMS
- Input sensitivity (high level): 2.5V – 21V RMS
- Analog inputs management: Audio input routing matrix type

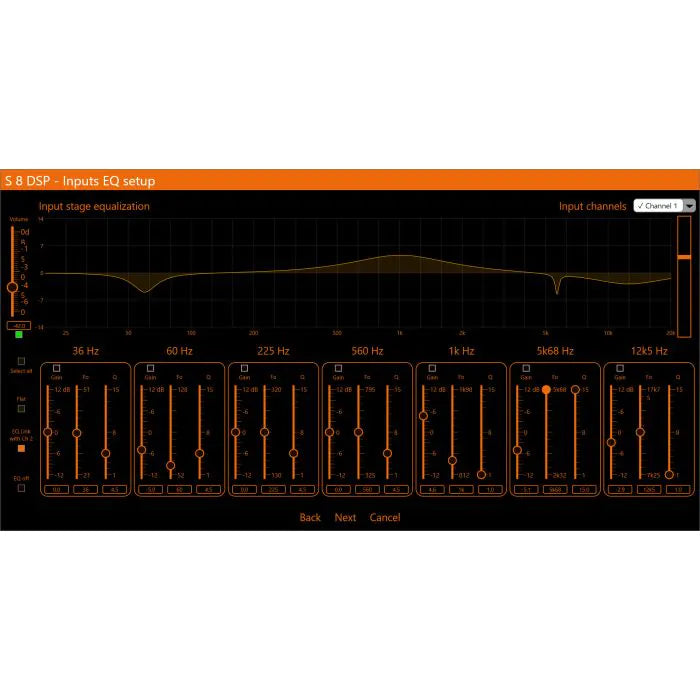

- Analog inputs eq: 7 bands paragraphic for each input channel
- ART: Automatic Remote Turn-On/Off with Speaker-In
- Sample rate: 96KHz
- Bit depth: 24
- Output equaliser: 15 bands per channel w/ adjustable Q and Frequency
- Equalizer resolution: 1/10th dB per step +12dB / -12dB
- Time alignment (distance): 0 - 468.4 cm / 0 - 184.4 inches
- Time alignment (time): 0 - 13.5ms
- Time alignment (step): 0.08 ms; 2.8 cm / 1.1 inch
- Time alignment (fine set): 0.02 ms; 0.7 cm / 0.27 inch
- Crossovers: AP/HP/LP/BP all channels
- Crossover type: Butterworth, Linkwitz-Riley, Bessel (All Channels)
- Crossover slope: From 6dB/oct. until 30dB/oct. (6dB step)
- Crossover steps: 120 steps 20Hz-20KHz
- Mute function: Mute every channel separately or all together.
- Presets: 4 presets
- Presets selection: 2 specific wires to control the 4 presets selection by external switches.
- Input selection by wire: One specific wire to select the desired input between Analog or Digital.
- Audio signal compressor on output stage: Yes (enable/disable)
- DSP chipset Analog Device: ADAU1451
- DSP management by bt app (iOS/ Android)
- 1. CONFIGURATOR mode Mainly it’ll allow the DSP tuning. You can manage every DSP functon through your smartphone/ tablet/PC/MAC.
- 2. DRC mode The BT device becomes a remote control by using the dedicated app with a simple graphical user interface. Manage volume level, SUB level, select different setup files, upload a new setup file.
- Setup file sharing via bt Upload a setup file via BT through the BT APP when in “Configurator” or “DRC” mode.
- DSP management by pc / mac / ios / android Microsoft Windows (32/64 bit): Windows 10 (USB and BT BLE) Windows 11 (USB and BT BLE) Mac Os: 10.13 Hight Sierra or later (USB and BT BLE)
- Max size W x H x D (mm/inch): 130 x 33.8 x 88.3 / 5.11 x 1.44 x 3.47
- Weight (kg/lbs): 0.66 / 1.45
