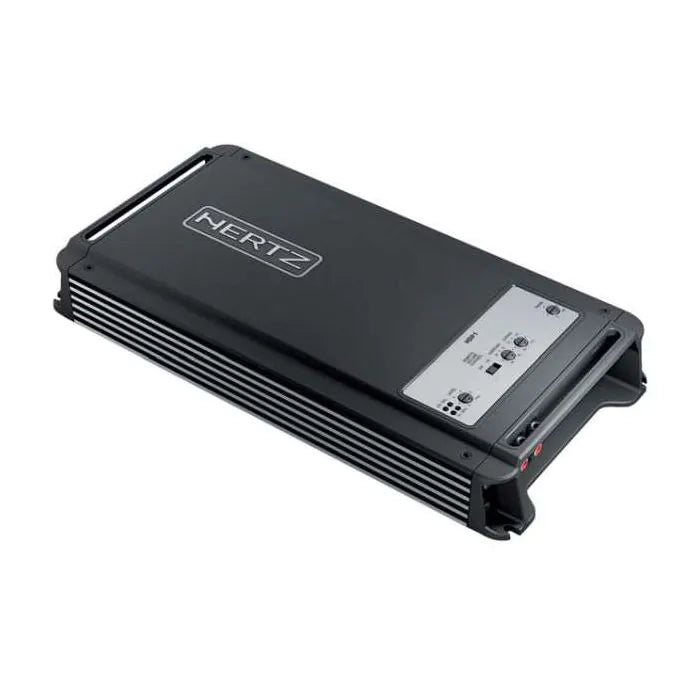

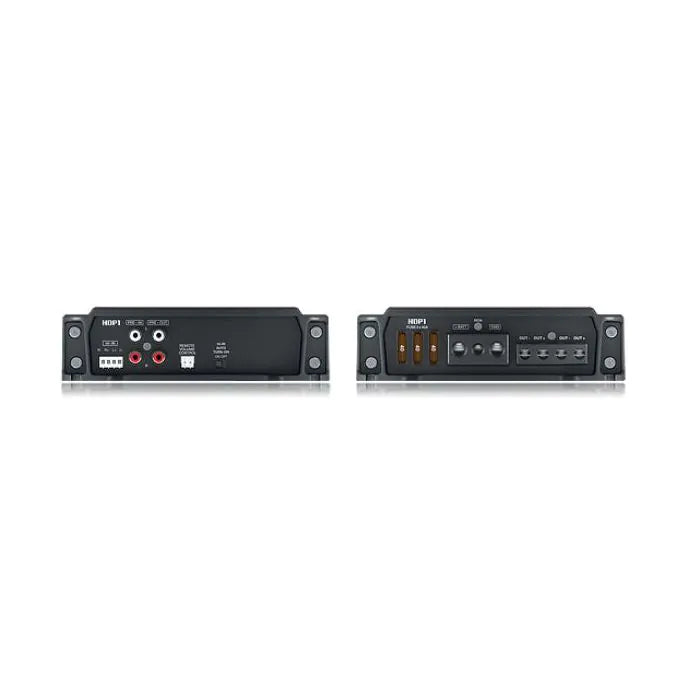

Hertz HDP 1 - Mono D-Class Amplifier 1000W

HDP 1 is a mono D-Class amplifier providing very high power and efficiency, being able to astonish for the excellent musicality. HDP 1 is ideal to drive subwoofers and can work on 2 Ohm and 4 Ohm loads, providing 600W and 1000W power.

• HDP 1 features a subsonic and a Lo-Pass filer, both at 24 dB/Oct.
• Maximum installation versatility: just like the whole HDP line, the mono is equipped with the HDP IN system which, through the Speaker In and RCA inputs, provides the ability
• to interface with any OEM and aftermarket source. Using Speaker In inputs, the ART™ ( Automatic Remote Turn On-Off) function is available; the user can also switch it off. It
• features dotato a status monitor communicating with the user through a LEDs system.
• The double-extrusion heat sink and the Hertz logo, which is back lit and can be rotated, allow especially sophisticated installations.
• OUTPUT POWER (RMS) @ 14.4 VDC, THD 1%:
• 1 Ch 600 W x 1 (4Ω)
• 1 Ch 1000 W x 1 (2Ω)
• Power supply voltage: 11÷15 VDC
• Idling current: 2 A
• Idling current when off: 0.04 mA
• Consumption @ 2Ω, 14.4 VDC
• (Max Musical Power): 60 A
• Amplifier stage
• Distorsion - THD (100 Hz @ 4Ω): 0.08 %
• Bandwidth (-3 dB): 18 ÷ 150 Hz
• S/N Ratio (A weighted @ 1 V): 103 dB
• Damping factor (100 Hz @ 4Ω): 100
• Pre-In sensitivity: 0.3 ÷ 5 V RMS
• Pre-In impedance: 15 kΩ
• Speaker-In sensitivity: 1.4 ÷ 24 V RMS
• Speaker-In impedance: 470 Ω
• Load impedance:
• 1 Ch 4 ÷ 2Ω
• Thermally optimized double extruded heatsink, ergonomic and aluminium die-cast end caps;
• 4 LEDs monitor the status of the amplifier and communicate with the user;
• Special balanced input circuitry to reject electromagnetic disturbances present on the Pre-amplified or Speaker level inputs;
• HDP Input featuring either Speaker In (OEM radio) and RCA In (Aftermarket radio) inputs;
• ART™, Automatic Remote Turn-On/Off function, automatically turns on and off the amplifier when the OEM radio turns on and off (available on Speaker In only);
• Full range Pre-out, also available when using Speaker Level In inputs;
• Continuously variable (0–180°) phase control for proper alignment of the subwoofer output with the front woofers;
• Continuously adjustable (18 to 40Hz) 24dB/Oct. subsonic filter;
• 24 dB/Oct. continuously adjustable (40 to 150Hz) Lo-Pass filter;
• Power supply stage featuring multiple winding transformer, Low-ESR 105°C capacitors, D-Class 2 Ω stable (1000 W RMS) output stage based on solid TO220 Power Mosfets.
