Description

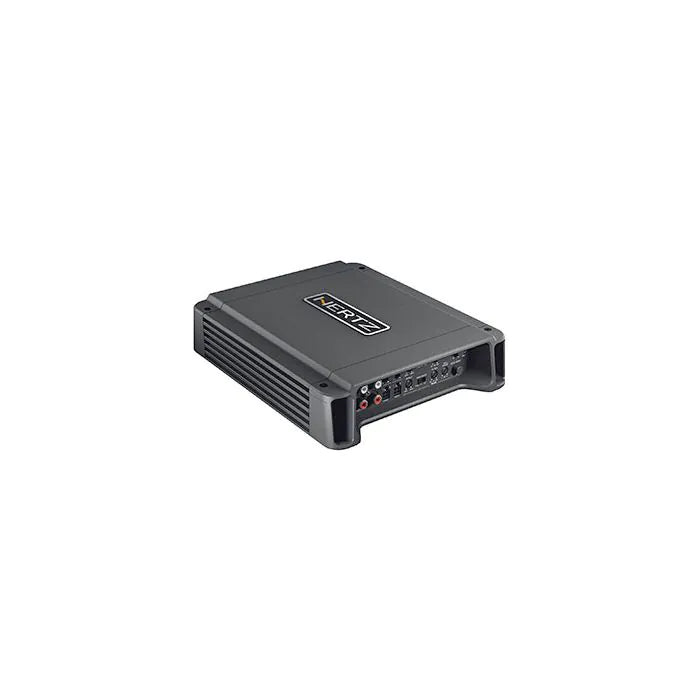

xHertz HCP4 - 1160W 4-Channel D-Class Amplifier HCP 4D is a D Class amplifier, able to offer up to 1160W (RMS); it is the ideal choice for those who want high power levels in complex systems. Extremely versatile, complete in its functions, provided with Speaker-In and RCA-In inputs to work with any head units, it has been designed to work also in mono (selectable mode), for a three-channel system with sub and front, or a powerful two-channels system.
All the Hertz Compact Power amplifiers are assembled with high-quality components and feature a complete and by-passable crossover system. The dissipation system is optimized with the heat being transferred to the heat sink and then dissipated through the sides of the amplifier.
Using the HRC accessory (Hertz Remote Control), HCP 4D offers the ability to remote control the subwoofer volume with extreme preciseness.
- Compact design built from an extruded aluminum heatsink with the top side ensuring effective transfer of the heat generated by the power electronic components.
- Special balanced input circuitry to reject electromagnetic disturbances present on the Pre-amplified or Speaker level inputs.
- Input featuring both Speaker-In (OEM radio) and RCA-In (Aftermarket radio) inputs.
- Selectable ART™, Automatic Remote Turn-On/Off function, automatically turns on and off the amplifier when the OEM radio turns on and off (available on Speaker-In only).
- Power supply stage featuring multiple winding transformer, Low-ESR 105°C capacitors, D-Class 2 Ω stable.
- Pre-out, also available when using Speaker level inputs.
- Mono operation mode (selectable) to realize a sub + front three-channel system, or a powerful two-channel system.
- Bass Boost (50 Hz) selectable to 12 dB, to increase the subwoofer punch.
- Lo-Pass and Hi-Pass 12 dB adjustable (50 Hz to 3200 Hz) filters, providing the ability to realize a front + rear system, a multichannel woofer + tweeter system or a powerful sub + front system.
- Selectable full range power outputs.
Specifications
- 1160W 4-channel D-Class Amplifier
- Output Power (RMS) @ 14.4 VDC, THD 1%:
- 4 Ch: 75 W x 4 (4 Ω)
- 4 Ch: 130 W x 4 (2 Ω)
- 3 Ch: 75 W x 2 (4 Ω) + 260 W x 1 (4 Ω)
- 3 Ch: 130 W x 2 (2 Ω) + 260 W x 1 (4 Ω)
- 2 Ch: 260 W x 2 (4 Ω)
- Output Power (RMS) @ 14.4 VDC, THD 10%:
- 4 Ch: 85 W x 4 (4 Ω)
- 4 Ch: 145 W x 4 (2 Ω)
- 3 Ch: 85 W x 2 (4 Ω) + 290 W x 1 (4 Ω)
- 3 Ch: 145 W x 2 (2 Ω) + 290 W x 1 (4 Ω)
- 2 Ch: 290 W x 2 (4 Ω)
- Power supply voltage: 11÷15 VDC . 2 x 20A
- Idling current when off: 1.6A/0.04 mA
- Consumption @ 2Ω, 14.4 VDC (Max Musical Power): 22 A
- Remote In: 7 ÷ 15 VDC - 1 mA
- ART: Automatic Remote Turn-On/Off with Speaker-In
- Amplifier stage
- Distorsion - THD (100 Hz @ 4Ω): 0.02 %
- Bandwidth (-3 dB): 10 ÷ 60 kHz
- S/N Ratio (A weighted @ 1 V): 10 dB
- Damping factor (100 Hz @ 4Ω): 200
- Pre-In sensitivity: 0.6 ÷ 5 V RMS
- Speaker-In sensitivity: 1.5 ÷ 12 V RMS
- Load impedance (MIN) @ 4 Ch: 2 Ω / @ 3 Ch: 2 Ω + 2 Ω + 4 Ω / @ 2 Ch: 4 Ω
- INPUTS: PRE IN / SPEAKER IN
- Pre out FULL range (FRONT): Yes
- FRONT Ch. filters FULL: Yes
- Hi-Pass: 50 ÷ 3.2k Hz @ 12 dB/Oct.
- Lo-Pass: 50 ÷ 3.2k Hz @ 12 dB/Oct.
- REAR Ch. filters FULL: Yes
- Hi-Pass: 50 ÷ 3.2k Hz @ 12 dB/Oct.
- Lo-Pass: 50 ÷ 3.2k Hz @ 12 dB/Oct.
- FRONT Ch. MONO (on/off): Yes
- REAR Ch. MONO (on/off): Yes
- BOOST 50 Hz (adjust): (0 ÷ 12) dB
