Description

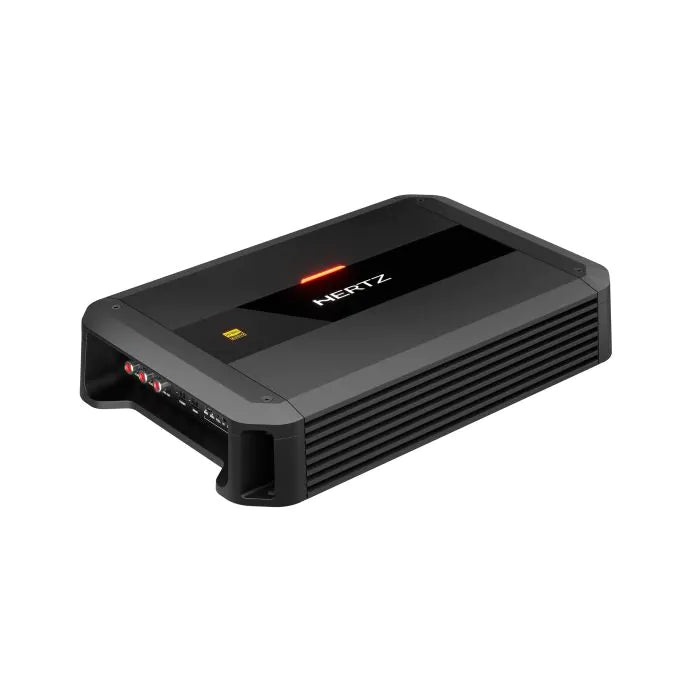

x4 X 60watts into 4 ohms with bridging capability adn on-board filters make this high-quality amplifier the perfect low-cost solution for those looking to have am upgraded system in their cars.
Specification
- Channels: 4 - 3 - 2
- Amp class: AB
- Nominal power supply voltage (fuse): 11 - 15 VDC (2 x 20 A)
- Operating power supply voltage: 6.5 - 16.5 VDC
- Idling current: 0.8 A
- Standby current draw: 5 uA
- Consumption, MIN load impedance (Max Musical Power): 24 A
- Remote IN: 4 - 15 VDC (1.5 mA)
- ART - Automatic Remote Turn on/off from SPK-IN (BTL radio only): 1.5 VDC
- Efficiency: 59%
- Distortion - THD @ 100 Hz, 70% Rated Power: 0.015%
- Damping factor @ 1 kHz, 1W: 105
- Bandwidth @ -3 dB: 10Hz - 45kHz
- S/N ratio (A-weighted @ 1 V Input): 100 dBA
- Minimum load impedance
- @ 4 Ch: 2 Ω
- @ 3 Ch: 2 Ω + 2 Ω + 4 Ω
- @ 2 Ch: 4 Ω
- Adjustable Crossovers yes
- Output Power
Output power (RMS) @ 1% THD:
- 4Ch @ 4Ω 60 W x 4
- 4Ch @ 2Ω 85 W x 4
- 3Ch @ 4Ω 60 W x 2 + 170 W x 1
- 3Ch @ 2Ω / 4Ω 85 W x 2 + 170 W x 1
- 2Ch @ 4Ω 170 W x 2
Output Power (RMS) @ 14.4 VDC, THD 10%:
- 4Ch @ 4Ω 75 W x 4
- 4Ch @ 2Ω 105 W x 4
- 3Ch @ 4Ω 75 W x 2 + 210 W x 1
- 3Ch @ 2Ω / 4Ω 105 W x 2 + 210 W x 1
- 2Ch @ 4Ω 210 W x 2
- Total Power 840 W
INPUTS / FILTERS
- Inputs Pre-In / Speaker-In
- Pre Out Full Range - (Front)
- Pre-In sensitivity 0.32 - 8 VRMS
- Speaker-In sensitivity 1.6 - 40 VRMS
- Front Ch Hi-Pass Full / 50-4000Hz 12dB/Oct.
- Front Ch Lo-Pass Full / 50-4000Hz 12dB/Oct.
- Rear Ch Hi-Pass Full / 50-4000Hz 12dB/Oct.
- Rear Ch Lo-Pass Full / 50-4000Hz 12dB/Oct.
- Bass Boost 50Hz 0 - 9 dB
