Description

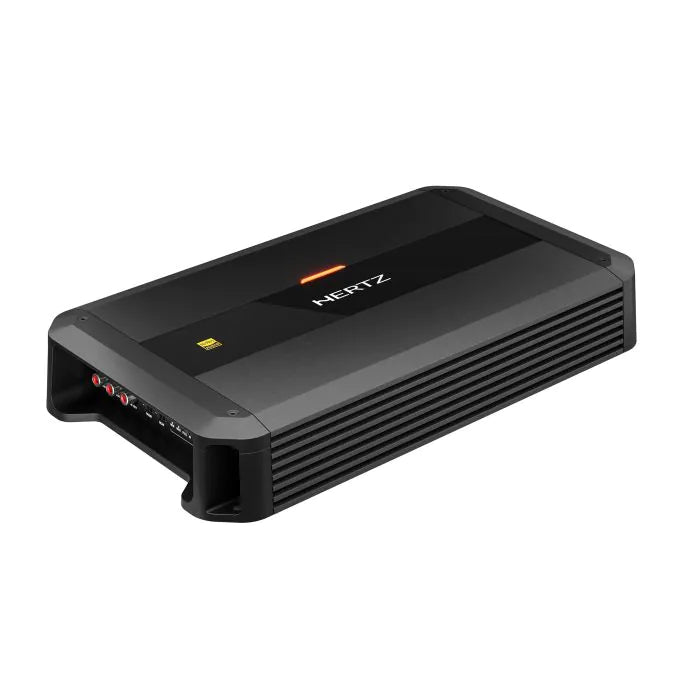

xAudio excellence for the budget-conscious. The DP 4.400 is a Hi-res compatible 4-channel class AB amplifier providing 75 watts RMS per channel into 4 ohms. A full suite of onboard filtering offers design flexibility to your installation specialist.
Specification
- Channels: 4 - 3 - 2
- Amp class: AB
- Nominal power supply voltage (fuse): 11 - 15 VDC (2 x 25 A)
- Operating power supply voltage: 6.5 - 16.5 VDC
- Idling current: 0.85 A
- Standby current draw: 10 uA
- Consumption, MIN load impedance (Max Musical Power): 30 A
- Remote IN: 4 - 15 VDC (1.5 mA)
- ART - Automatic Remote Turn on/off from SPK-IN (BTL radio only): 1.5 VDC
- Efficiency: 60%
- Distortion - THD @ 100 Hz, 70% Rated Power: 0.01%
- Damping factor @ 1 kHz, 1W: 130
- Bandwidth @ -3 dB: 10Hz - 45kHz
- S/N ratio (A-weighted @ 1 V Input): 101 dBA
- Minimum load impedance
- @ 4 Ch: 2 Ω
- @ 3 Ch: 2 Ω + 2 Ω + 4 Ω
- @ 2 Ch: 4 Ω
- Adjustable Crossovers yes
Output power (RMS) @ 1% THD:
- 4Ch @ 4Ω 75 W x 4
- 4Ch @ 2Ω 105 W x 4
- 3Ch @ 4Ω 75 W x 2 + 210 W x 1
- 3Ch @ 2Ω / 4Ω 105 W x 2 + 210 W x 1
- 2Ch @ 4Ω 210 W x 2
Output Power (RMS) @ 14.4 VDC, THD 10%:
- 4Ch @ 4Ω 90 W x 4
- 4Ch @ 2Ω 125 W x 4
- 3Ch @ 4Ω 90 W x 2 + 250 W x 1
- 3Ch @ 2Ω / 4Ω 125 W x 2 + 250 W x 1
- 2Ch @ 4Ω 250 W x 2
- Total Power 1000 W
INPUTS / FILTERS
- Inputs Pre-In / Speaker-In
- Pre Out Full Range (Front)
- Pre-In sensitivity 0.32 ÷ 8 VRMS
- Speaker-In sensitivity 1.6 ÷ 40 VRMS
- Front Ch Hi-Pass Full / 50-4000Hz 12dB/Oct.
- Front Ch Lo-Pass Full / 50-4000Hz 12dB/Oct.
- Rear Ch Hi-Pass Full / 50-4000Hz 12dB/Oct.
- Rear Ch Lo-Pass Full / 50-4000Hz 12dB/Oct.
- Bass Boost 50Hz 0 ÷ 9 dB
