Description

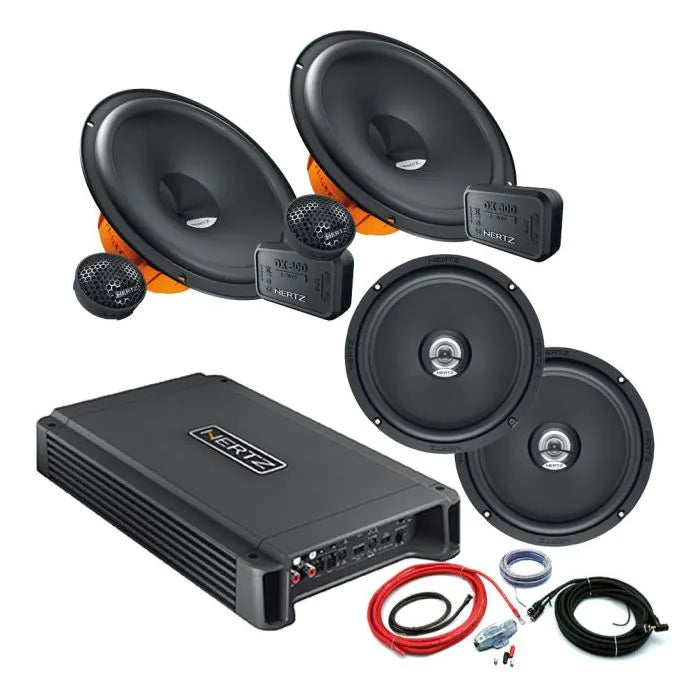

xPackage Contents:
- Hertz HCP4 4-channel amplifier
- Hertz DCX-165.3 - 6.5-inch Coaxial Speaker System
- Hertz DSK-165.3 - 6.5-inch 2-Way Component Speaker System
- 8 Gauge Wiring Kit + RCA
HCP4 Specifications:
- 760W 4-channel Amplifier
- Output Power (RMS) @ 14.4 VDC, THD 1%:
- 4 Ch: 55 W x 4 (4 Ω)
- 4 Ch: 85 W x 4 (2 Ω)
- 3 Ch: 55 W x 2 (4 Ω) + 170 W x 1 (4 Ω)
- 3 Ch: 85 W x 2 (2 Ω) + 170 W x 1 (4 Ω)
- 2 Ch: 170 W x 2 (4 Ω)
- Output Power (RMS) @ 14.4 VDC, THD 10%:
- 4 Ch: 65 W x 4 (4 Ω)
- 4 Ch: 95 W x 4 (2 Ω)
- 3 Ch: 65 W x 2 (4 Ω) + 190 W x 1 (4 Ω)
- 3 Ch: 95 W x 2 (2 Ω) + 190 W x 1 (4 Ω)
- 2 Ch: 190 W x 2 (4 Ω)
- Power supply voltage: 11÷15 VDC . 2 x 20A
- Idling current when off: 1A/0.04 mA
- Consumption @ 2Ω, 14.4 VDC (Max Musical Power): 21 A
- Remote In: 7 ÷ 15 VDC - 1 mA
- ART: Automatic Remote Turn-On/Off with Speaker-In
- Amplifier stage
- Distorsion - THD (100 Hz @ 4Ω): 0.01 %
- Bandwidth (-3 dB): 10 ÷ 45 kHz
- S/N Ratio (A weighted @ 1 V): 103 dB
- Damping factor (100 Hz @ 4Ω): 120
- Pre-In sensitivity: 0.6 ÷ 5 V RMS
- Speaker-In sensitivity: 1.5 ÷ 12 V RMS
- Load impedance (MIN) @ 4 Ch: 2 Ω / @ 3 Ch: 2 Ω + 2 Ω + 4 Ω / @ 2 Ch: 4 Ω
- INPUTS: PRE IN / SPEAKER IN
- Pre out FULL range (FRONT): Yes
- FRONT Ch. filters FULL: Yes
- Hi-Pass: 80 Hz @ 12 dB/Oct.
- Lo-Pass: 50 ÷ 500 Hz @ 12 dB/Oct.
- REAR Ch. filters FULL: Yes
- Hi-Pass: 80 Hz @ 12 dB/Oct.
- Lo-Pass: 50 ÷ 500 Hz @ 12 dB/Oct.
- FRONT Ch. MONO (on/off): Yes
- REAR Ch. MONO (on/off): Yes
- BOOST 50 Hz (select): (0 / 6 / 12) dB
DSK-165.3 Specifications:
- 2-way 16.5cm component speakers
- 6.5" woofer, 25mm (1") Tweeter
- 80W RMS power handling (160W peak)
- Frequency response: 50-23kHz
- Impendence: 4-ohms
- Sensitivity: 93 dB/Spl
- Outer diameter: 166mm
- Mounting hole diameter: 142mm
- Mounting depth: 68mm
- Crossover included: 3.5kHz crossover frequency, 6/12dB Oct
DCX-165.3 Specifications:
- 2-way 16.5cm coaxial speakers
- 60W RMS power handling (120W peak)
- High Density flux ferrite magnet
- Water repellent pressed paper cone woofer
- Neodymium magnet
- Mylar dome tweeter
- Frequency response: 60-21kHz
- Impendence: 4-ohms
- Sensitivity: 93 dB/Spl
- Outer diameter: 166mm
- Mounting hole diameter: 142mm
- Mounting depth: 61mm
