Description

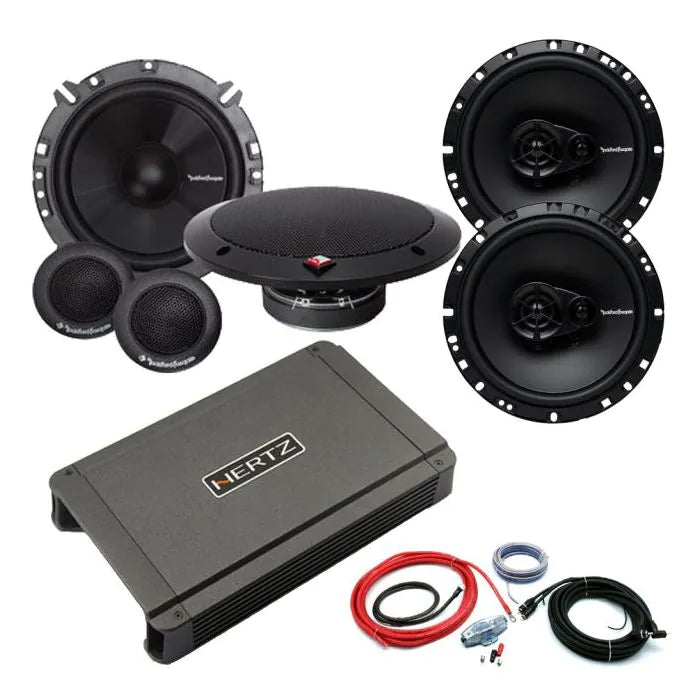

xPackage Contents:
- Hertz HCP4 - 4 Channel 760W Amplifier
- Rockford Fosgate Prime R165-S - 6.5" 2-Way Component Speakers
- Rockford Fosgate Prime R165X3 - 6.5" 3-Way Coaxial Full-Range Speaker
- 8 Gauge Wiring Kit + RCA
HCP4 Specifications:
- 760W 4-channel Amplifier
- Output Power (RMS) @ 14.4 VDC, THD 1%:
- 4 Ch: 55 W x 4 (4 Ω)
- 4 Ch: 85 W x 4 (2 Ω)
- 3 Ch: 55 W x 2 (4 Ω) + 170 W x 1 (4 Ω)
- 3 Ch: 85 W x 2 (2 Ω) + 170 W x 1 (4 Ω)
- 2 Ch: 170 W x 2 (4 Ω)
- Output Power (RMS) @ 14.4 VDC, THD 10%:
- 4 Ch: 65 W x 4 (4 Ω)
- 4 Ch: 95 W x 4 (2 Ω)
- 3 Ch: 65 W x 2 (4 Ω) + 190 W x 1 (4 Ω)
- 3 Ch: 95 W x 2 (2 Ω) + 190 W x 1 (4 Ω)
- 2 Ch: 190 W x 2 (4 Ω)
- Power supply voltage: 11÷15 VDC . 2 x 20A
- Idling current when off: 1A/0.04 mA
- Consumption @ 2Ω, 14.4 VDC (Max Musical Power): 21 A
- Remote In: 7 ÷ 15 VDC - 1 mA
- ART: Automatic Remote Turn-On/Off with Speaker-In
- Amplifier stage
- Distorsion - THD (100 Hz @ 4Ω): 0.01 %
- Bandwidth (-3 dB): 10 ÷ 45 kHz
- S/N Ratio (A weighted @ 1 V): 103 dB
- Damping factor (100 Hz @ 4Ω): 120
- Pre-In sensitivity: 0.6 ÷ 5 V RMS
- Speaker-In sensitivity: 1.5 ÷ 12 V RMS
- Load impedance (MIN) @ 4 Ch: 2 Ω / @ 3 Ch: 2 Ω + 2 Ω + 4 Ω / @ 2 Ch: 4 Ω
- INPUTS: PRE IN / SPEAKER IN
- Pre out FULL range (FRONT): Yes
- FRONT Ch. filters FULL: Yes
- Hi-Pass: 80 Hz @ 12 dB/Oct.
- Lo-Pass: 50 ÷ 500 Hz @ 12 dB/Oct.
- REAR Ch. filters FULL: Yes
- Hi-Pass: 80 Hz @ 12 dB/Oct.
- Lo-Pass: 50 ÷ 500 Hz @ 12 dB/Oct.
- FRONT Ch. MONO (on/off): Yes
- REAR Ch. MONO (on/off): Yes
- BOOST 50 Hz (select): (0 / 6 / 12) dB
R165-S Specifications:
- Component System
- Midrange Diameter (in): 6.5"
- Midrange Depth (in): 1.97" (50.1 mm)
- Tweeter Diameter (in): 0.5" (13 mm)
- Tweeter Depth (in): 1.06" (26.88 mm)
- Frequency Response: 60Hz - 20kHz
- Nominal Impedance: 4-Ohm
- Power Handling (RMS): 40 Watts RMS / 80 Watts MAX
- Crossover: Tweeter High-Pass (HP): 4.5kHz @ 6dB/octave
- Sensitivity (dB @ 1 watt/1 meter): 89
- Grilles Included
- Mounting Hardware included
R165X3 Specifications:
- Configuration: 3-Way Full-Range
- Midrange Diameter (in): 6.5"
- Midrange Depth (in): 2.15" (54.5 mm)
- Tweeter Diameter (in): 0.5" (12 mm)
- Frequency Response: 52Hz - 20kHz
- Nominal Impedance: 4-Ohm
- Power Handling (RMS): 45 Watts RMS / 90 Watts MAX
- Crossover: Tweeter High-Pass (HP): 6dB
- Sensitivity (dB @ 1 watt/1 meter): 91
- Grilles Included: Yes
- Mounting Hardware: Yes
- Shipping Weight: 4.6 Lbs. (2.08 kg.)
