Description

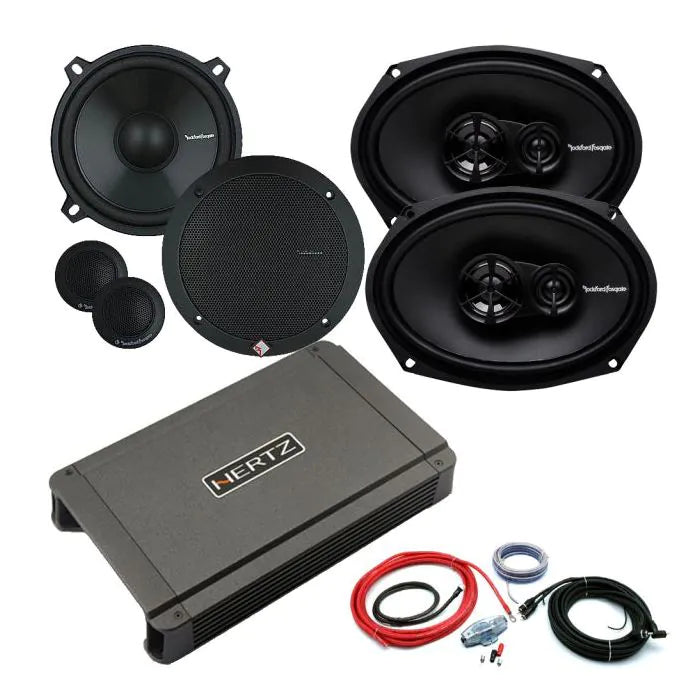

xPackage Content:
- Hertz HCP4 - 4 Channel 760W Amplifier
- Rockford Fosgate Prime R1 Series: R152-S 5.25" 2-Way Component System Speakers
- Rockford Fosgate Prime R169X3 - 6”x9” 3-Way Full-Range Speaker
- 8 Gauge Wiring Kit + RCA
HCP4 Specifications:
- 760W 4-channel Amplifier
- Output Power (RMS) @ 14.4 VDC, THD 1%:
- 4 Ch: 55 W x 4 (4 Ω)
- 4 Ch: 85 W x 4 (2 Ω)
- 3 Ch: 55 W x 2 (4 Ω) + 170 W x 1 (4 Ω)
- 3 Ch: 85 W x 2 (2 Ω) + 170 W x 1 (4 Ω)
- 2 Ch: 170 W x 2 (4 Ω)
- Output Power (RMS) @ 14.4 VDC, THD 10%:
- 4 Ch: 65 W x 4 (4 Ω)
- 4 Ch: 95 W x 4 (2 Ω)
- 3 Ch: 65 W x 2 (4 Ω) + 190 W x 1 (4 Ω)
- 3 Ch: 95 W x 2 (2 Ω) + 190 W x 1 (4 Ω)
- 2 Ch: 190 W x 2 (4 Ω)
- Power supply voltage: 11÷15 VDC . 2 x 20A
- Idling current when off: 1A/0.04 mA
- Consumption @ 2Ω, 14.4 VDC (Max Musical Power): 21 A
- Remote In: 7 ÷ 15 VDC - 1 mA
- ART: Automatic Remote Turn-On/Off with Speaker-In
- Amplifier stage
- Distorsion - THD (100 Hz @ 4Ω): 0.01 %
- Bandwidth (-3 dB): 10 ÷ 45 kHz
- S/N Ratio (A weighted @ 1 V): 103 dB
- Damping factor (100 Hz @ 4Ω): 120
- Pre-In sensitivity: 0.6 ÷ 5 V RMS
- Speaker-In sensitivity: 1.5 ÷ 12 V RMS
- Load impedance (MIN) @ 4 Ch: 2 Ω / @ 3 Ch: 2 Ω + 2 Ω + 4 Ω / @ 2 Ch: 4 Ω
- INPUTS: PRE IN / SPEAKER IN
- Pre out FULL range (FRONT): Yes
- FRONT Ch. filters FULL: Yes
- Hi-Pass: 80 Hz @ 12 dB/Oct.
- Lo-Pass: 50 ÷ 500 Hz @ 12 dB/Oct.
- REAR Ch. filters FULL: Yes
- Hi-Pass: 80 Hz @ 12 dB/Oct.
- Lo-Pass: 50 ÷ 500 Hz @ 12 dB/Oct.
- FRONT Ch. MONO (on/off): Yes
- REAR Ch. MONO (on/off): Yes
- BOOST 50 Hz (select): (0 / 6 / 12) dB
R152-S Specifications:
- 1/2" (13mm) mylar balanced dome tweeter
- Foam surround
- Mica-injected polypropylene cone
- Stamped steel basket
- Configuration: 2-Way Component System
- Midrange Diameter: 5.25"
- Midrange Depth: 1.91" (48.50mm)
- Tweeter Diameter: 0.5"
- Frequency Response: 58Hz - 20kHz
- Nominal Impedance: 4-Ohms
- Power Handling: 40 Watts RMS / 80 Watts MAX
- Crossover: Tweeter High-Pass (HP): 6dB
- Sensitivity (1 watt/1 meter): 85dB
- Grilles Included
- Mounting Hardware
R169X3 Specifications:
- Configuration: 3-Way
- Midrange Diameter (in): 6"x9"
- Midrange Depth (in): 2.85" (72.4 mm)
- Tweeter Diameter (in): 0.50" (12.7 mm)
- Frequency Response: 47Hz - 20kHz
- Nominal Impedance: 4-Ohm
- Power Handling (RMS): 65 Watts RMS / 130 Watts MAX
- Crossover: Tweeter High-Pass (HP): 6dB
- Sensitivity (dB @ 1 watt/1 meter): 90
- Grilles Included
- Mounting Hardware
