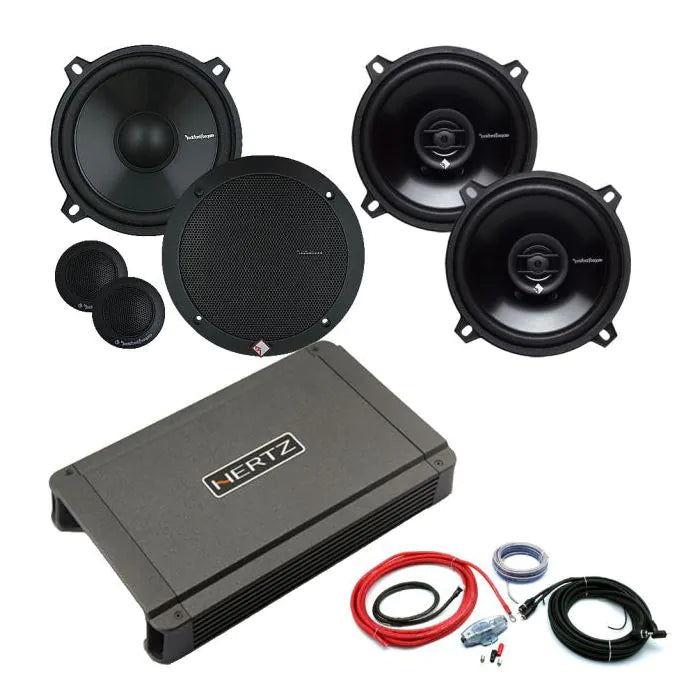

Hertz 4 Channel Amplifier 13cm Components & 13cm Coaxial Speaker Package Deal

Package Contents:

• Hertz HCP4 - 4 Channel 760W Amplifier
• Rockford Fosgate Prime R1 Series: R152-S 5.25" 2-Way Component System Speakers
• Rockford Fosgate Prime R1 Series: R1525X2 5.25" Full-Range Speakers
• 8 Gauge Wiring Kit

HCP4 Specifications:

• 760W 4-channel Amplifier
• Output Power (RMS) @ 14.4 VDC, THD 1%:
• 4 Ch: 55 W x 4 (4 Ω)
• 4 Ch: 85 W x 4 (2 Ω)
• 3 Ch: 55 W x 2 (4 Ω) + 170 W x 1 (4 Ω)
• 3 Ch: 85 W x 2 (2 Ω) + 170 W x 1 (4 Ω)
• 2 Ch: 170 W x 2 (4 Ω)
• Output Power (RMS) @ 14.4 VDC, THD 10%:
• 4 Ch: 65 W x 4 (4 Ω)
• 4 Ch: 95 W x 4 (2 Ω)
• 3 Ch: 65 W x 2 (4 Ω) + 190 W x 1 (4 Ω)
• 3 Ch: 95 W x 2 (2 Ω) + 190 W x 1 (4 Ω)
• 2 Ch: 190 W x 2 (4 Ω)
• Power supply voltage: 11÷15 VDC . 2 x 20A
• Idling current when off: 1A/0.04 mA
• Consumption @ 2Ω, 14.4 VDC (Max Musical Power): 21 A
• Remote In: 7 ÷ 15 VDC - 1 mA
• ART: Automatic Remote Turn-On/Off with Speaker-In
• Amplifier stage
• Distorsion - THD (100 Hz @ 4Ω): 0.01 %
• Bandwidth (-3 dB): 10 ÷ 45 kHz
• S/N Ratio (A weighted @ 1 V): 103 dB
• Damping factor (100 Hz @ 4Ω): 120
• Pre-In sensitivity: 0.6 ÷ 5 V RMS
• Speaker-In sensitivity: 1.5 ÷ 12 V RMS
• Load impedance (MIN) @ 4 Ch: 2 Ω / @ 3 Ch: 2 Ω + 2 Ω + 4 Ω / @ 2 Ch: 4 Ω
• INPUTS: PRE IN / SPEAKER IN
• Pre out FULL range (FRONT): Yes
• FRONT Ch. filters FULL: Yes
• Hi-Pass: 80 Hz @ 12 dB/Oct.
• Lo-Pass: 50 ÷ 500 Hz @ 12 dB/Oct.
• REAR Ch. filters FULL: Yes
• Hi-Pass: 80 Hz @ 12 dB/Oct.
• Lo-Pass: 50 ÷ 500 Hz @ 12 dB/Oct.
• FRONT Ch. MONO (on/off): Yes
• REAR Ch. MONO (on/off): Yes
• BOOST 50 Hz (select): (0 / 6 / 12) dB

R152-S Specifications:

• Component System
• Midrange Diameter (in): 6.5"
• Midrange Depth (in): 1.97" (50.1 mm)
• Tweeter Diameter (in): 0.5" (13 mm)
• Tweeter Depth (in): 1.06" (26.88 mm)
• Frequency Response: 60Hz - 20kHz
• Nominal Impedance: 4-Ohm
• Power Handling (RMS): 40 Watts RMS / 80 Watts MAX
• Crossover: Tweeter High-Pass (HP): 4.5kHz @ 6dB/octave
• Sensitivity (dB @ 1 watt/1 meter): 89
• Grilles Included
• Mounting Hardware included

R1525X2 Specifications:

• Configuration: 2-Way Full-Range
• Midrange Diameter (in): 5.25"
• Midrange Depth (in): 1.93" (49 mm)
• Tweeter Diameter (in): 0.50" (12.7 mm)
• Frequency Response: 62Hz - 20kHz
• Nominal Impedance: 4-Ohm
• Power Handling (RMS): 40 Watts RMS / 80 Watts MAX
• Crossover: Tweeter High-Pass (HP): 6dB
• Sensitivity (dB @ 1 watt/1 meter): 88
• Grilles Included: Yes
• Mounting Hardware: Yes
• Shipping Weight: 3.53 Lbs. (1.60 kg.)
