Description
xFSP-8 is the ultimate digital tool to optimise and shape the audio signal... High-resolution sound quality, compatible inputs/outputs, a user interface designed for and by acoustic experts, are this 8-channel digital sound processor’s assets.
The ideal tool for the most demanding installations
Equipped with six selectable high and low level inputs, the FSP-8 is fully compatible with both factory head units and aftermarket solutions. It also features an optical digital input (24bits/192kHz) to provide high-resolution sound quality. The FSP-8 is equipped with an additional auxiliary input, allowing the user to connect all types of media devices to the audio system (digital music players, smartphones etc.)
Whether it’s for controlling FLAXspeaker drivers, the K2 POWER line or UTOPIA Be speaker drivers, it will be the ideal tool for the most demanding installations.
FSP-8 DSP MANAGER
Finally, the DSP comes along with a user interface, FSP-8 DSP MANAGER, to optimise in just a few clicks setup time and listening sessions.
FSP-8 key points
- Compatible with all head units
- High-resolution digital input (24 bits/192kHz)
- Unique and intuitive user interface Focal DSP Manager
- Remote control (sold separately)

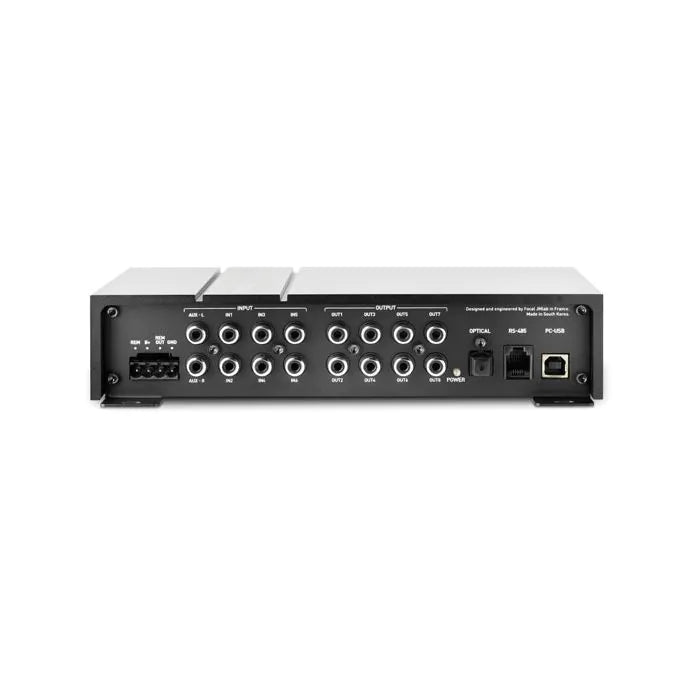

Inputs
- Low-level input sensitivity (Analog and Aux) 1.2V – 4.9V
- High-level input sensitivity (Analog and Aux)4.8V – 20.6V
- Digital input formats supported (optical)up to 24 bits/192kHz
Outputs
- Number of channels 8
- Max. output (with 10kΩ) level3.4V
- Frequency response (digital crossover off/-3dB)5Hz - 21kHz
- Signal/noise ratio -90dBa (analogue input)-99dBa (optical)
- Harmonic distortion - 10kΩ - @1kHz (with 22kHz low-pass filter) 0.02%
- Crosstalk - 4Ω - @1kHz-78dB
- Gain adjustment range 64dB
- Equaliser 10 bands, each fully customisable for each channel
- Adjustable high-pass crossover 16Hz - 20kHz
- Adjustable low-pass crossover 16Hz - 20kHz
- Adjustable bandpass crossover 16Hz - 20kHz
- Latency adjustment range 0-22ms per channel
- Latency adjustment steps 0.1ms
- Phase inverter
General
- Easy Configuration
- Dynamic help
- Power consumption on standby (product on, no signal, 14.4 Vin) 0.7a(0.73 a with remote)
- Power consumption OFF (14.4 Vin, remote OFF)< 50μa
- Remote control sold separately
- Protection Polarity inverter
- Weight 3lbs (1.35kg)
- Dimensions : (LxWxH)89/16"x57/16"x17/8" (21.8cmx13.8cmx4.8cm)
