Description
xDR770X-1CH 64GB

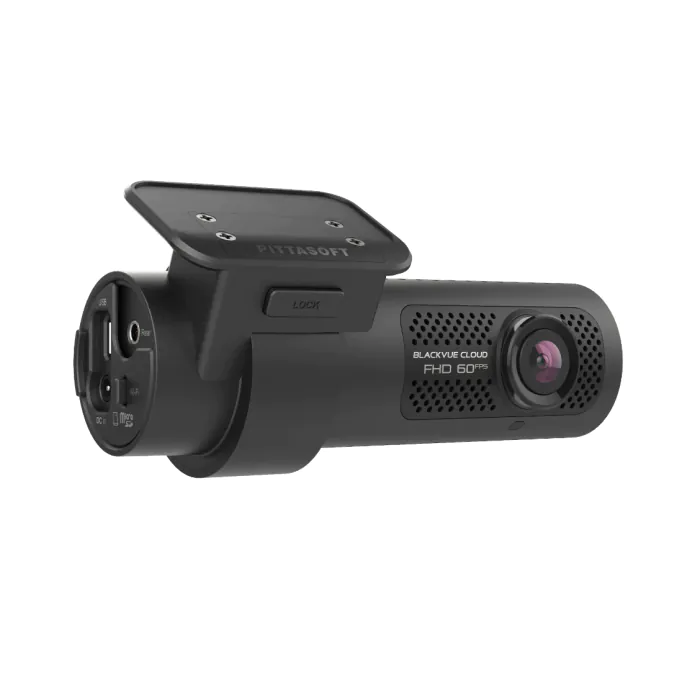

The DR770X-1CH is our benchmark single-channel dash cam, combining Full HD 1080p video at 60fps, with LIVE BlackVue Cloud features and optional always-on 4G LTE connectivity.
optional always-on 4G LTE connectivity.
The DR770X is upgradable to full 4G always-on Cloud Connectivity, with the addition of the CM100LTE external connectivity module and supplied data SIM, meaning that you are always connected to your dash cam via the BlackVue app, and always able to receive notifications and remotely view video clips in the event of an incident.
INTELLIGENTPARKING MODE
BlackVue’s unique Intelligent Parking Mode is ideal if you worry about hit-and-runs, theft or vandalism while your vehicle is parked and left unattended. The DR770X-1CH automatically switches to Parking Mode when the ignition is switched off, and will continue to monitor your vehicle, recording and storing events for review later – or alerting you in real time via the BlackVue App. Video buffering ensures that your camera will also record the seconds leading up to the event, ensuring you have the whole picture
Specifications:
- Model Name
- DR770X-1CH
- Colour / Size / Weight
- Black / Width 118.5 mm x Height 36 mm / 92g
- Memory
- microSD Card (64 GB/128 GB/256 GB)
- Recording Modes
- Normal recording, Event recording (when impact is detected in normal and parking mode), Manual recording and Parking recording (when motion is
- detected)
- * When using Hardwiring Power Cable, ACC+ will trigger parking mode. When using other methods, G-sensor will trigger parking mode.
- Camera
- STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel)
- Viewing Angle
- Diagonal 139°, Horizontal 116°, Vertical 61°
- Resolution / Frame Rate
- Full HD (1920×1080) @60fps
- *Frame rate may vary during Wi-Fi streaming.
- Video Codec
- H.264 (AVC)
- Image Quality
- Highest (Extreme): 25 + 10 Mbps
- Highest / Highest (Sports): 12 + 10 Mbps
- High: 10 + 8 Mbps
- Normal: 8 + 6 Mbps
- Video Compression Mode
- MP4
- Wi-Fi
- Built-in (802.11 b.g.n)
- GPS
- Built-in (Dual Band : GPS, GLONASS)
- Bluetooth
- Built-in (V2.1+EDR/4.2)
- LTE
- External
- Microphone
- Built-in
- Speaker (Voice Guidance)
- Built-in
- LED Indicators
- Front: Recording LED, GPS/BT LED, LTE/Wi-Fi LED, Front Security LED Side : Proximity Sensing Indicate LED
- Button
- Wi-Fi button: * Press once to turn on/off Wi-Fi. Proximity sensor: Touching the proximity sensor turns on/off audio recording or triggers manual recording
- depending on the firmware settings.
- Sensor
- 3-Axis Acceleration Sensor
- Backup Battery
- Built-in super capacitor
- Input Power
- DC 12V-24V (DC Plug(Ø3.5 x Ø1.1) to Wires (Black: GND / Yellow: B+ / Red: ACC)
- Power Consumption
- Normal Mode (GPS On / 1CH On) : 240mA / hour/ 12V
- Parking Mode (GPS Off) : 190mA / hour / 12V
- Parking Mode (WiFi Off / GPS Off) : 185mA / hour
- * Actual power consumption may vary depending on use conditions and environment
- Operation Temperature
- -20 °C ~ +85 °C (-4 °F ~ +185 °F)
- Storage Temperature
- -20 °C ~ +90 °C (-4 °F ~ +194 °F )
- High Temperature Cut-Off
- Approx. +90 °C (194 °F)
- Certifications
- FCC, CE, UKCA, RoHS, Telec, WEEE, ISED
- Software
- BlackVue Viewer
- * Windows XP or higher and Mac Yosemite OS X (10.10) or higher
- Application
- BlackVue Application (Android 4.4.2 or higher, iOS 9.0 or higher)
- Other Features
- *Adaptive Format Free File Management System
