Description

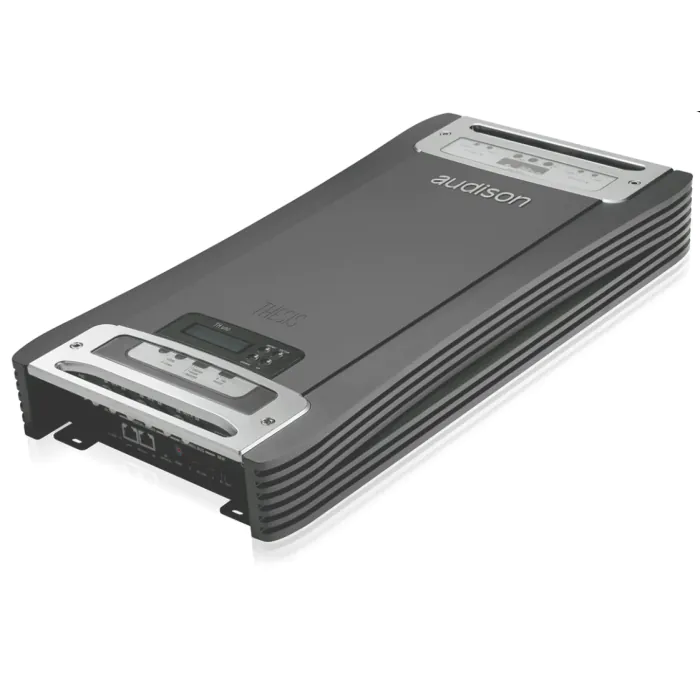

xThesis amplifiers are born with the know-how and experience achieved with the HV venti, improved by the innovation of digital technology. The result is a perfect combination between the highest level of analog technology and the advanced features of the digital technology in one unique product. The precious synergy with Full DA HD technology takes the in-car listening experience to a new level of excellence; the synthesis of a unique know-how employed in mobile audio reproduction. TH quattro is a four-channel amplifier fully adjustable and entirely manageable by the internal microprocessor, for limitless system configurations.
Features
- Complementary differential circuitry with current mirror.
- Cascode A Class driver with inverted complementary triplet power stages.
- Integrated 24-bit / 192 kHz Hi-End DA converters.
- Compatibility with Audison Full DA HD technology and Hi-Res audio files listening certification.
- SPDIF and AD Link optical digital inputs that manage up to 8 digital channels on RJ-45 connector.
- Dual Mono Construction featuring four power supplies in Synchro-PWM configuration.
- Sensitivity control featuring 256 steps resistive switching for a resolution of 120 dB.
- Energy Saving, Hi-Current, Hi-AB Class, A Class presets selectable in real time.
- Digital control via integrated settings panel, DRC and PC Software.
- High quality crossover module supplied.
- Chassis extruded from solid aluminium and built using CNC machines
Amplifier Tech Data
- Channels 4
- Class A-Class
- Low Level Input
- Digital Input
- Power supply voltage / fuse 11 ÷ 15 VDC
- Idling current when off 0.04 mA
- Consumption @ 14.4 VDC, 2Ω, Max Musical Power 105 A
- Remote OUT 12 VDC (20 mA)
- Remote IN 7 ÷ 15 VDC (1 mA)
Amplifier Stage
- Distortion - THD @ 100 Hz, 4Ω, 70% Rated Power
- Distortion - THD @ 1 kHz, 4 Ω; 90% Power: 0.03 %
- Bandwidth A (-3 dB, 2 VRMS, 4 Ω): 5 ÷ 70k Hz
- S/N ratio A (A weighed @1 V): 104 dBA
- Damping factor A (1 kHz, 2 VRMS, 4 Ω): 80
- Input sensitivity Pre-In
- Pre-In sensitivity (two ranges): 0.3 ÷ 4.8 VRMS
- Pre In Impedance 15 kΩ
- Total Power RMS 1040 W
- Output Power (RMS) @14.4 VDC, 1% THD
- 4 Ch @ 4 Ω 160 W x 4
- 4 Ch @ 2 Ω 260 W x 4
- 4 Ch @ 1 Ω 340 W x 4
- 3 Ch @ 4 Ω 150 W x 2 +540 w x 1
- 3 Ch @ 2 Ω 250 w x 2 + 650 w x 1
- 2 Ch @ 4 Ω 500 W x 2
- 2 Ch @ 2 Ω 700 W x 2
- Dual Power Mode - A Class: 4 Ch @ 4 Ω 55 W x 4
CEA Specifications
- Output power @ 4Ω, 1% THD+N, 14.4 V
- Output power @ 4Ω, 1% THD+N, 14.4 V: 150 W x 4 Ch
- SN ratio (ref. 1W output)
- SN ratio (ref. 1W output): 80 dBA
Inputs
- Input Type PRE - S/PDIF (Max 192 kHz / 24 bit) Optical and AD Link
- Filters Outputs PRE Bypass / AD Link
- Filter Pass A 2 x Removable kits: (Hi-pass / Lo-pass / Bandpass 12/24dB) 32 steps 18 ÷ 7.5k Hz with 8 standard & 2 customizable modules
Other
- Fuse 100 A
- Weight 10.3 kg
