Description

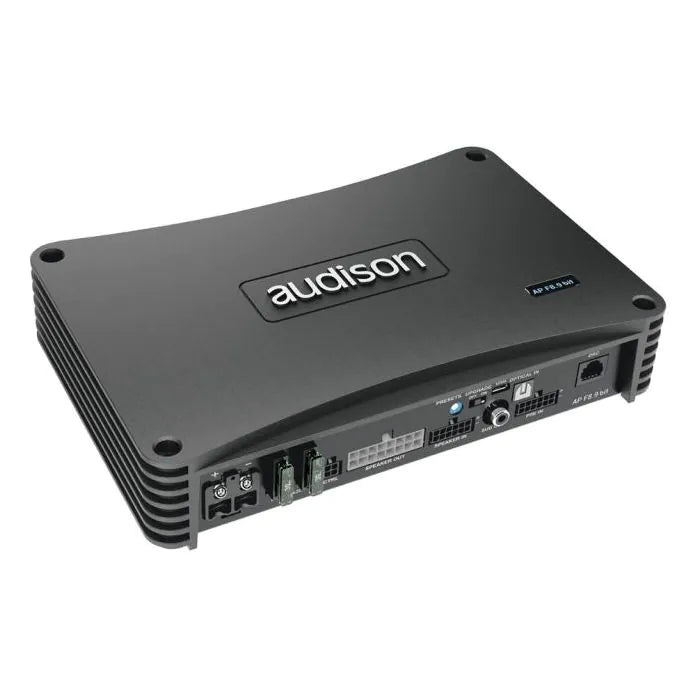

xThe new AP F8.9 bit is the ideal for the most demanding integration projects, where high power is required along with the flexibility of the nine-channel DSP. The word “Forza”, meaning “Power” in Italian, well describes the 8 x 85 W RMS and 4 x 260 in bridge mode (RMS @ 4Ω), with an optimal power to size ratio. The integrated processor is equipped with a dedicated software and 7 pre-configured presets for a Plug & Sound experience. Thanks to the built-in Audison USS technology (Universal Speakers Simulator), AP F8.9 bit can also be correctly connected to head-units with “speaker load detection” function that monitors the presence of a low-impedance load to enable the audio outputs.
Full DA - Full Digital Audio
- Pure digital signal transfer with a resolution up to 24 bit / 48 kHz.
BIT DRIVE
- Auto tuning by Audison bit Tune and communication with bit Drive portal.
DE-EQ - De Equalization
- De-equalization function to “flatten” any equalization applied by default by OEM sources.
USS technology
- USS technology allows Prima amplifiers to work with head-units featuring the “speaker load detection” circuit
- Register your product now to add 1 additional year of warranty coverage
POWER SUPPLY
- Power supply voltage / fuse 11 ÷ 15 VDC / 2 x 30A
- Operating power supply voltage 6.5V ÷17V
- Idling current 1.6 A
- Switched off without DRC 1.7mA
- Switched off with DRC 5 mA
- Consumption @ 14.4 VDC, 2Ω, Max Musical
- Power 55 A
- Remote IN 6 ÷ 15 VDC (1 mA)
- Remote OUT 4 ÷ 15 VDC (150 mA)
- ART - Automatic Remote Turn on/off from
- OUTPUT BTL speakers (Selectable) 2 ÷ 7 VDC
- AST - Automatic Signal Turn on/off (Selectable) Speaker-In
AMPLIFIER STAGE
- Distortion - THD @ 1 kHz, 4Ω, 70% Rated Power 0,06%
- Damping factor @ 1 kHz, 4Ω, 2 VRMS > 110
- Bandwidth @ -1.5 dB 10Hz ÷ 22kHz
- S/N ratio (A weighted @ 1 V Input) Master Input 100 dBA
- S/N ratio (A weighted @ 1 V Input) Optical Input 105 dBA
- Input sensitivity Pre-In 0.6 ÷ 6 VRMS
- Input sensitivity Speaker-In 2.2 ÷ 22 VRMS
- Minimum load
- impedance
- 8Ch: 2Ω
- 4Ch - (Bridge 1/2; 3/4; 5/6; 7/8) : 4Ω
- OUTPUT CONTINUOUS POWER (RMS) @14.4 VDC, 1% THD:
- 8Ch @ 4Ω 85 W x 8
- 8Ch @ 2Ω 130 W x 8
- 4Ch (Bridge 1/2; 3/4; 5/6; 7/8) @ 4Ω 260 W x 4
- 2Ch @ 4Ω 100 W x 2
- 2Ch @ 2Ω 150 W x 2
- 1Ch (Bridge) @ 4Ω 300 W x 1
- OUTPUT IMPULSIVE POWER @14.4 VDC, 1% THD,:
- 8Ch @ 4Ω 100 W x 8
- 8Ch @ 2Ω 150 W x 8
- 4Ch (Bridge) @ 4Ω 300 W x 4

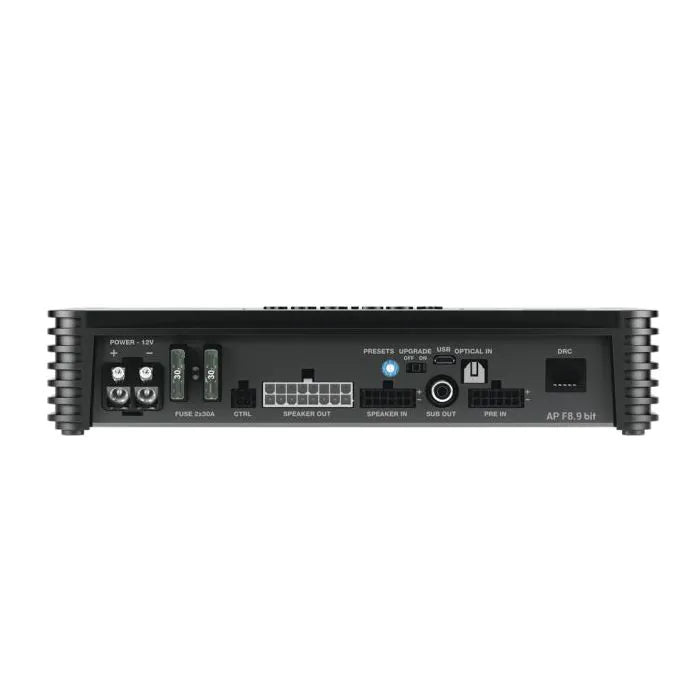

INPUTS / OUTPUTS
- Pre-In Inputs Ch1 ÷ Ch6 customizable
- Speaker-In Inputs Ch1 ÷ Ch6 customizable
- Digital IN 1 x Optical S/PDIF; Max 192 kHz / 24 bit
- Sub Out (RCA Pre Out) 4 VRMS
DIGITAL SIGNAL PROCESSOR
- Filter type Full / Hi pass / Low Pass / Band Pass
- Filter mode and slope Linkwitz @ 12/24 dB
- Butterworth @ 6/12/18/24 dB
- Crossover frequency 68 steps @ 20 ÷ 20k Hz
- Phase control 0° / 180°
- Bass Boost N.1 Adjustable Parametric Pole
- Analog Input Equalizer
- (20 ÷ 20k Hz) Automatic De-Equalization
- Output Equalizer N.9 Parametrics Equalizers: ±12 dB;10 pole;
- 20 ÷ 20k Hz
- Time Alignment Distance 0 ÷ 510 cm / 0 ÷ 200.8 inches
- Time Alignment Delay 0 ÷ 15 ms
- Time Alignment Step 0.08 ms; 2.8 cm / 1.1 inch
- Time Alignment Fine SET 0.02 ms; 0.7 cm / 0.27 inch
- Preset (Drive Preset) Rotary switch for 7 installation Presets
- Acoustic Preset N.2 DSP Memory, DRC selectable
CONTROL CONNECTIONS
- From / To Personal Computer 1 x Micro USB
- To Audison DRC AB / MP 1 x AC Link
- Optical select Optical select wire control +12 V enable
- Master enable Master enable wire control +12 V enable
GENERAL REQUIREMENTS
- PC connections Micro USB 1.1 / 2.0 / 3.0 Compatible
- Software/ PC requirements Microsoft Windows (32/64 bit): Vista,
- Windows 7, Windows 8, Windows 10
- Video resolution with screen
- resize min. 1024 x 600
- Ambient operating temperature
- range 0 °C to 55 °C (32 °F to 131 °F)
- SIZE
- Max size W x H x D (mm/inch) 238 x 49.5 x 155 / 9.37 x 1.95 x 6.1
- Weight (kg/lbs) 1.98 / 4.36
