Description

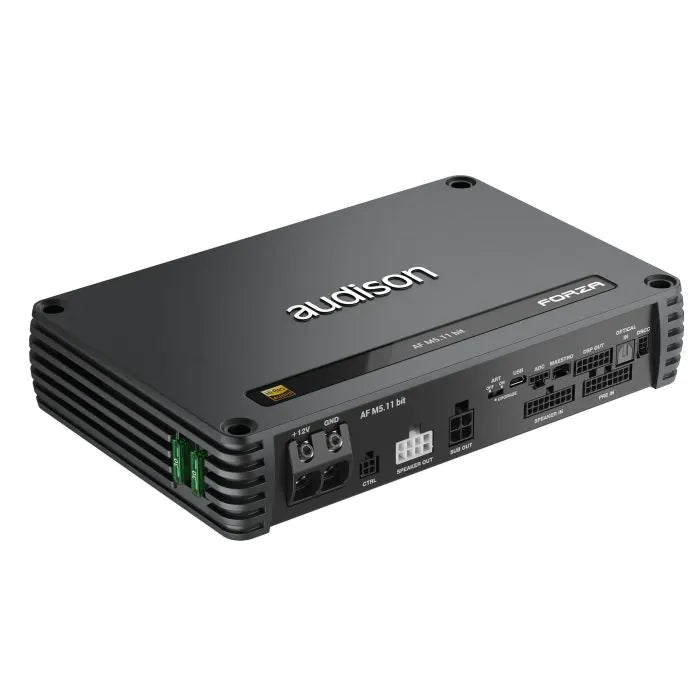

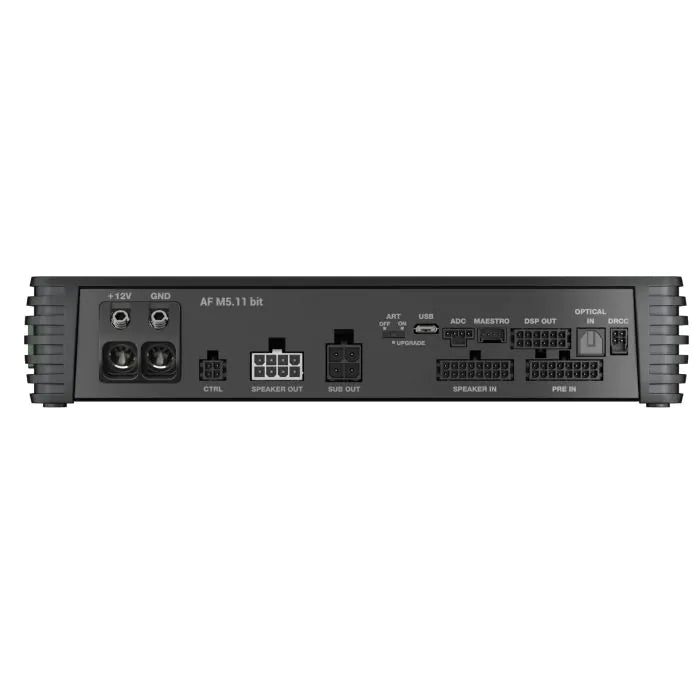

xAF M5.11 bit DSP Amplifier
1200 W | 11 CH DSP + 4 x 150 W @ 2 ohm + 1 x 600 W @ 2 ohm | D-class Fully Bridgeable
AF M5.11 bit boasts five high-fidelity amplified channels 100W x 4 + 400W @4Ω*, 150WP x 4 + 600W @2Ω* with the audiophile sound of the latest generation Audison D-Class technology. Higher switching frequencies, steeper filtering, and higher-tolerance components deliver sound above and beyond the expectation of Class D – in an amazingly compact package! This is combined with native DSP working at 24 bit/96 kHz, extending the audio band up to 40 kHz and earning the coveted High-Resolution certification. Bridging channel pairs results in 200W x 2 + 400W @4Ω*, guaranteeing flexible and powerful performance. Support for the Audison B-CON’s Absolute Volume function guarantees maximum bit depth, even with wireless connections! Output Continuous Power (RMS) @14.4 VDC, 1% THD, all channels driven.
Technical Specification
POWER SUPPLY
Nominal power supply voltage / fuse: 11 - 15 VDC / 2 x 30A
Pulse operating voltage: 6.5 - 17.5 VDC
Idling current: 1.5 A
Standby current draw: 1.5 mA
Consumption @ 14.4 VDC, Minimum load impedance (Max Musical Power): 53.4 A
Remote IN: 4 -15 VDC (1 mA)
Remote OUT: 6.5 -15 VDC (150 mA)
ART – Automatic Remote Turn on/off from Speaker-In 1.5V DC
Efficiency @ rated power (RMS) @14.4 VDC, 1% THD,4Ω, All Channels: 80.5%
AMPLIFIER STAGE
Distortion – THD+N @ 1 KHz, 4Ω, 70% Rated Power: 0.02%
Damping factor @ 100 kHz , 4Ω, 2 VRMS SUB Channel): 140
Damping factor @ 1 kHz , 4Ω, 2 VRMS: 140
Bandwidth @ -3 dB: 10 Hz - 42 kHz
S/N ratio (A weighted @ 1 V Input, Rated Power) Master Input: 98 dBA
S/N ratio (A weighted @ Rated Power) Optical Input: 105 dBA
Minimum load impedance:
5Ch: 2Ω
3Ch: 4Ω + 4Ω + 2Ω
Output Continuous Power (RMS) @14.4 VDC, 1% THD:
• 5 Ch @ 4Ω:
100 W x 4 + 400 W x 1
• 5 Ch @ 2Ω: 150 W x 4 + 600 W x 1
• 3 Ch (Bridge 1/2; 3/4) @ 4Ω: 300 W x 2 + 400 W x 1
• 3 Ch (Bridge 1/2; 3/4) @ 4Ω / 2Ω: 300 W x 2 + 600 W x 1
CEA SPECIFICATIONS
Output power @ 4Ω, 1% THD+N, 14.4 V: 85 W x 4 + 340 W x 1
SN ratio (ref. 1 W output): 78 dB
INPUTS / OUTPUTS
Pre-In (8 Ch): 0.6 - 6 VRMS (15 kΩ Imp.)
Speaker-In (8 Ch + additional 4 Ch with optional F4IN card):
2.2 - 22 VRMS (5 Ω Imp.)
Digital IN:
1 x Optical S/PDIF; Max 192 kHz / 24 bit + 1 x Optical/Coaxial S/PDIF with optional F2O card
DSP Preout (2 Ch): 5V RMS
DIGITAL SIGNAL PROCESSOR
Audio DSP and converters:
Analog Devices ADAU1467 automotive qualified audio processor.
Processing @ 96 kHz.Analog Devices 3 x ADAU1978 (4ch) and ADAU1966A (16ch) A/D and D/A converters (24 bit/192 kHz) providing very high level performance
Filter type:
Full / High-Pass / Low-Pass / Band-Pass
Filter mode and slope:
Linkwitz-Riley @ 12/24/36/48 dB/Oct.
Butterworth @ 6/12/18/24/30/36/42/48 dB/Oct.
Bessel @ 6/12/18/24/30/36/42/48 dB/Oct.
Chebyshev @ 6/12/18/24/30/36/42/48 dB/Oct.
QLP @ 6 dB/Oct.
Crossover frequency: 20 Hz - 20 kHz
Phase control: 0° / 180°, All-Pass filters
Analog Input Equalizer (20 Hz ÷ 20 kHz):
12 Biquad + Delay
Output Equalizer:
Parametric/Graphic Biquad: 15 poles, 20 Hz - 20 kHz
Input and Output Real Time Audio Monitor: RTA
Time Alignment Distance:
0 - 510 cm / 0 - 200.8 inches
Time Alignment Delay: 0 - 15 ms
CONTROL CONNECTIONS
Audison DRCC port:
Input for DRCC remote control (Optional)
Audison ADC port:
Manage other Audison devices that support this standard
Control 1 wire:
Customisable functions (+ 12 V activated)
Control 2 wire:
Customisable functions (+ 12 V activated)
GENERAL REQUIREMENTS
PC connections:
Micro USB 1.1 / 2.0 / 3.0 Compatible
Software/ PC requirements:
Windows 10, Windows 11 (min. res. 1024 x 768
Ambient operating temperature range:
0 °C to 55 °C (32 °F to 131 °F)
SIZE / WEIGHT

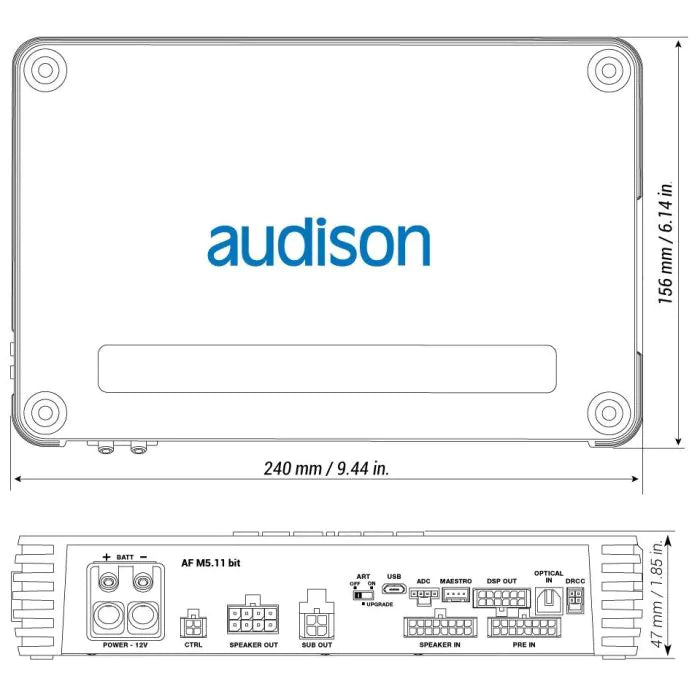

Max size W x H x D (mm/inch):
240 x 47 x 156 / 9.44 x 1.85 x 6.14
Weight (kg/lb):
2.04 / 4.49
