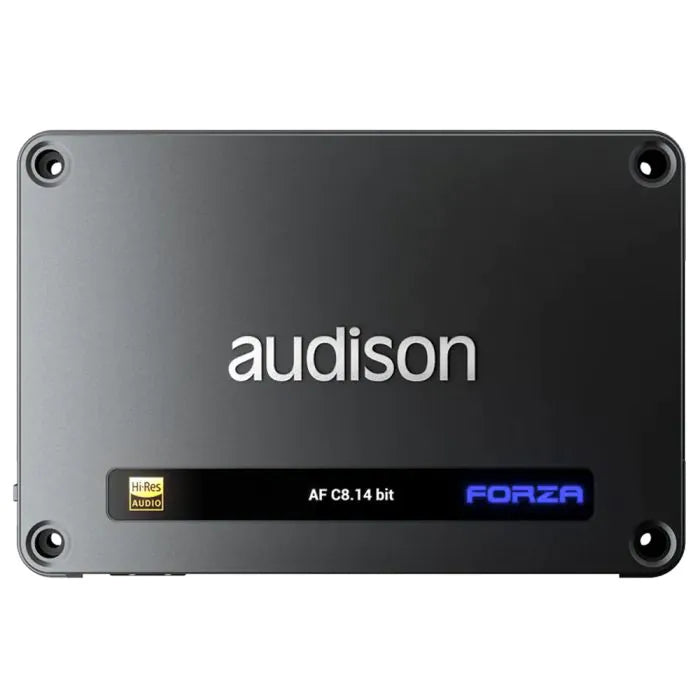

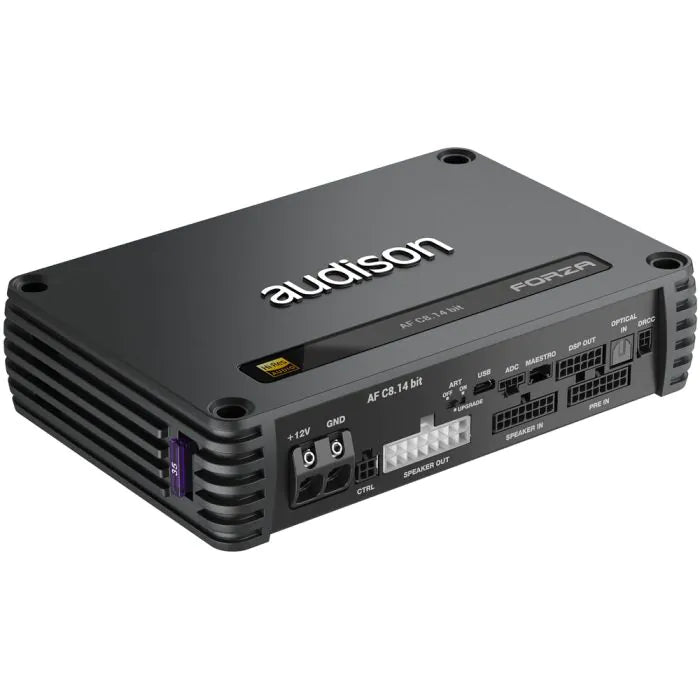

xFORZA AF C8.14 bit
AF C8.14 bit boasts eight high-fidelity amplified channels 65W x 8 @4Ω*, 100W x 8 @2Ω*, with the audiophile sound of the latest generation Audison D-Class technology. Higher switching frequencies, steeper filtering, and higher-tolerance components deliver sound above and beyond the expectation of Class D – in an amazingly compact package!
Heading
This is combined with native DSP working at 24 bit/96 kHz, extending the audio band up to 40 kHz and earning the coveted High-Resolution certification. Bridging channel pairs results in 200W x 4 @4Ω*, guaranteeing flexible and powerful performance. Support for the Audison B-CON’s Absolute Volume function guarantees maximum bit depth, even with wireless connections!
Heading
Text
AMPLIFIER TECH DATA
- Channels 8
- Class D-Class
- Power supply voltage / fuse 11 ÷ 15 VDC / 1 x 35A
- Operating power supply voltage 6.5 ÷ 17.5 VDC
- Idling current 1.3 A
- Standby Current Draw 1.5 mA
- Consumption @ 14.4 VDC, 2Ω, Max Musical Power 34 A
- Remote IN 4 ÷15 VDC (1 mA)
- Remote OUT 6.5 ÷15 VDC (150 mA)
- ART - Automatic Remote Turn on/ off from OUTPUT BTL speakers 1.5 VDC
- Efficiency Rated Power 81%
AMPLIFIER STAGE
- Distortion - THD @ 1 kHz, 4Ω, 70% Rated Power 0.05%
- Bandwidth @ -1.5 dB 10 Hz ÷ 42 kHz
- Damping factor @ 1 kHz, 4Ω, 2 VRMS 85
- S/N ratio (A weighted @ 1 V Input) Master Input 98.5 dBA
- S/N ratio (A weighted @ 1 V Input) Optical Input 105
- Total Power RMS 800 W
- Minimum load impedance 2Ω
- Output Continuous Power
- (RMS) @14.4 VDC, 1% THD
- 8 Ch @ 4Ω: 65 W x 8
- 8 Ch @ 2Ω: 100 W x 8
- 4Ch (Bridge 1/2; 3/4; 5/6; 7/8) @ 4Ω: 200 W x 4
- Adjustable Crossover
CEA SPECIFICATIONS
- Output power @ 4Ω, 1% THD+N, 14.4 V 55 W x 8
- SN ratio (ref. 1W output) 80 dB
INPUTS / OUTPUTS
- Pre-In Inputs 0.6 ÷ 6 VRMS (15 kΩ Imp.)
- Digital Input
- Pre Outputs 2
- Hi Level Inputs 8
- Low Level Inputs 8
- Speaker-In Inputs 2.2 ÷ 22 VRMS (5 Ω Imp.)
- Digital IN 1 x Optical S/PDIF; Max 192 kHz / 24 bit + 1 x Optical/Coaxial S/PDIF with optional F2O card
- Input Optical IN 1 x Optical S/PDIF; Max 192 kHz / 24 bit + 1 x Optical/Coaxial S/PDIF with optional F2O card
DIGITAL SIGNAL PROCESSOR
- Audio DSP Converter
- Analog Devices ADAU1467 automotive qualified audio processor processing @ 96 kHz.
- Analog Devices 3 x ADAU1978 (4ch) and ADAU1966A (16ch) A/D and D/A converters (24 bit/192 kHz) providing very high level performance.
- Filter type Full / High-Pass / Low-Pass / Band-Pass
- Filter mode and slope
- Linkwitz-Riley @ 12/24/36/48 dB/Oct.
- Butterworth @ 6/12/18/24/30/36/42/48 dB/Oct.
- Bessel @ 6/12/18/24/30/36/42/48 dB/Oct.
- Chebyshev @ 6/12/18/24/30/36/42/48 dB/Oct.
- QLP @ 6 dB/Oct.
- Crossover frequency 20 Hz ÷ 20 kHz
- Phase control 0° / 180°, All-Pass filters
- Analog Input Equalizer (20 ÷ 20k Hz) 12 Biquad + Delay
- Output Equalizer Parametric/Graphic Biquad: 15 poles, 20 Hz ÷ 20 kHz
- Time Alignment Distance 0 ÷ 510 cm / 0 ÷ 200.8 inches
- Time Alignment Delay 0 ÷ 15 ms
- Input Output Real Time Audio Monitor RTA

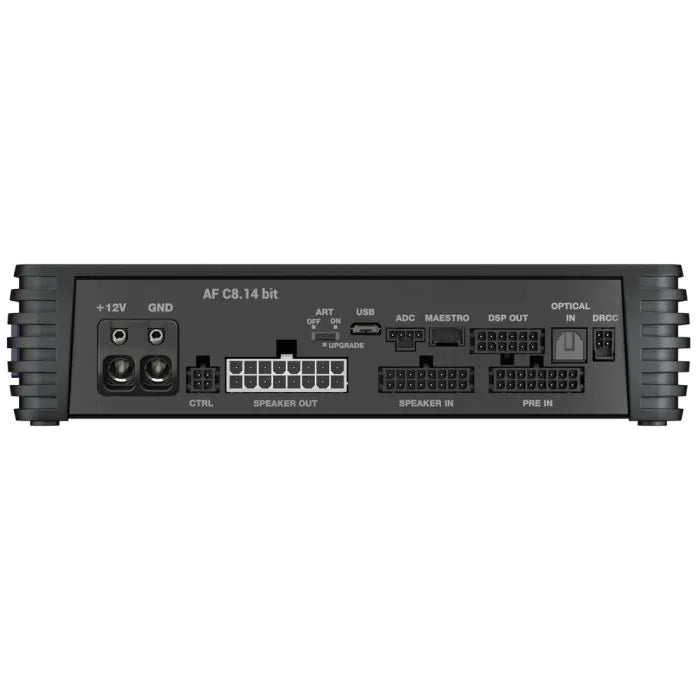

CONTROL CONNECTIONS
- DRC Port Input for DRC AC remote control (Optional)
- ADC Port Manage other Audison devices that support this standard
- 1 Wire Customizable functions (+ 12 V activated)
- 2 Wire Customizable functions (+ 12 V activated)
GENERAL REQUIREMENTS
- PC connections Micro USB 1.1 / 2.0 / 3.0 Compatible
- Software/PC requirements Windows 10, Windows 11
- Video Resolution with screen resize (min. res. 1024 x 768)
- Ambient operating temperature range 0 °C to 55 °C (32 °F to 131 °F)
DIMENSIONS
- Dimension A 200 mm
- Dimension B 134 mm
- Dimension C 47 mm
