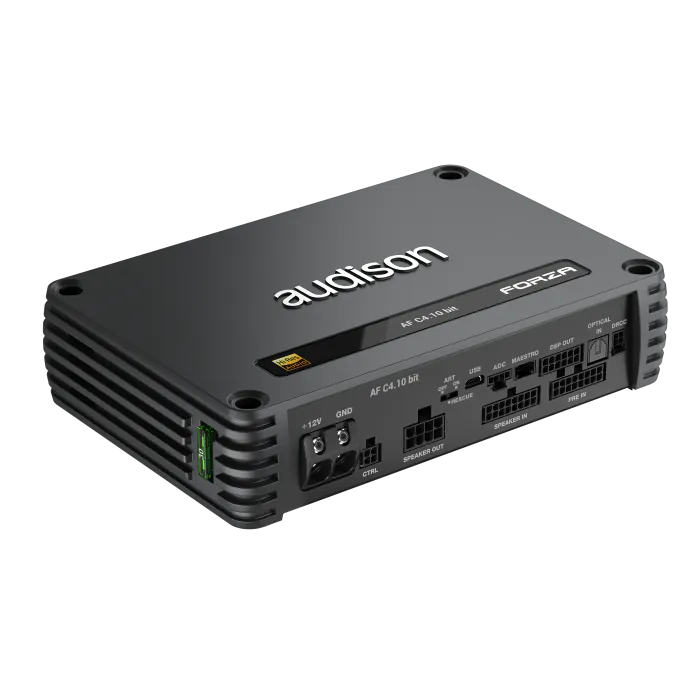

Audison Forza AF C4.10 bit - 10 CH DSP D-Class Fully Bridgeable Car Amplifier 600W

AF C4.10 bit boasts four high-fidelity amplified channels 90W x 4 @4Ω*, 150W x 4 @2Ω*, with the audiophile sound of the latest generation Audison D-Class technology. Higher switching frequencies, steeper filtering, and higher-tolerance components deliver sound above and beyond the expectation of Class D – in an amazingly compact package!

This is combined with native DSP working at 24 bit/96 kHz, extending the audio band up to 40 kHz and earning the coveted High-Resolution certification.

Bridging channel pairs results in 300 x 2 @4Ω, guaranteeing flexible and powerful performance. Support for the Audison B-Con’s Absolute Volume function guarantees maximum bit depth, even with wireless connections!

*Output Continuous Power (RMS) @14.4 VDC, 1% THD, all channels driven.

AMPLIFIER TECH DATA

• Channels 4
• D-Class
• Power supply voltage / fuse 11 ÷ 15 VDC / 1 x 30A
• Operating power supply voltage 6.5 ÷ 17.5 VDC
• Idling current 1 A
• Standby Current Draw 1 mA
• Consumption @ 14.4 VDC, 2Ω, Max Musical Power 29 A
• Remote IN 4 ÷15 VDC (1 mA)
• Remote OUT 6.5 ÷15 VDC (150 mA)
• ART - Automatic Remote Turn on/ off from OUTPUT BTL speakers 1.5 VDC
• AST - Automatic Signal Turn on/off (Selectable) 1.5 VDC
• Efficiency Rated Power 81%

AMPLIFIER STAGE

• Distortion - THD @ 1 kHz, 4Ω, 70% Rated Power 0.03%
• Bandwidth @ -1.5 dB 10 Hz ÷ 42 kHz
• Damping factor @ 1 kHz, 4Ω, 2 VRMS 95
• S/N ratio (A weighted @ 1 V Input) Master Input 98 dBA
• S/N ratio (A weighted @ 1 V Input) Optical Input 105
• Total Power RMS 600 W
• Minimum load impedance 2Ω
• Output Continuous Power (RMS) @14.4 VDC, 1% THD
• 4 Ch @ 4Ω: 90 W x 4
• 4 Ch @ 2Ω: 150 W x 4
• 2 Ch (Bridge 1/2; 3/4) @ 4Ω: 300 W x 2
• Adjustable Crossover

CEA SPECIFICATIONS

• Output power @ 4Ω, 1% THD+N, 14.4 V 90 W x 4
• SN ratio (ref. 1W output) 80 dB

INPUTS / OUTPUTS

• Pre-In Inputs 0.6 ÷ 6 VRMS (15 kΩ Imp.)
• Digital Input
• Pre Outputs 6
• Hi Level Inputs 8
• Low Level Inputs 8
• Speaker-In Inputs 2.2 ÷ 22 VRMS (5 Ω Imp.)
• Digital IN 1 x Optical S/PDIF; Max 192 kHz / 24 bit + 1 x Optical/Coaxial S/PDIF with optional F2O card

DIGITAL SIGNAL PROCESSOR

• Audio DSP Converter
• Analog Devices ADAU1467 automotive qualified audio processor.
• Processing @ 96 kHz.Analog Devices 3 x ADAU1978 (4ch) and ADAU1966A (16ch) A/D and D/A converters (24 bit/192 kHz) providing very high level performance
• Filter type Full / High-Pass / Low-Pass / Band-Pass
• Filter mode and slope Linkwitz-Riley @ 12/24/36/48 dB/Oct.
• Butterworth @ 6/12/18/24/30/36/42/48 dB/Oct.
• Bessel @ 6/12/18/24/30/36/42/48 dB/Oct.
• Chebyshev @ 6/12/18/24/30/36/42/48 dB/Oct. QLP @ 6 dB/Oct.
• Crossover frequency 20 Hz ÷ 20 kHz
• Phase control 0° / 180°, All-Pass filters
• Analog Input Equalizer (20 ÷ 20k Hz) 12 Biquad + Delay
• Output Equalizer Parametric/Graphic Biquad: 15 poles, 20 Hz ÷ 20 kHz
• Time Alignment Distance 0 ÷ 510 cm / 0 ÷ 200.8 inches
• Time Alignment Delay 0 ÷ 15 ms
• Input Output Real Time Audio Monitor RTA

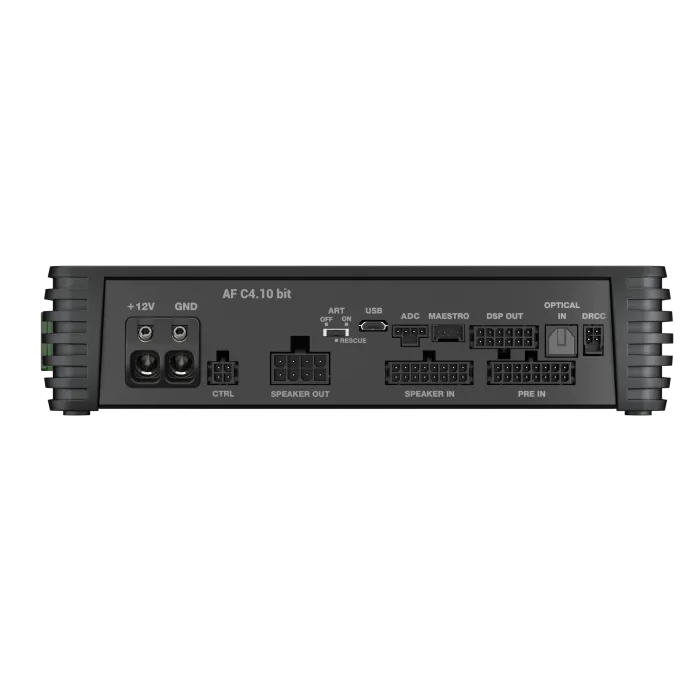

CONTROL CONNECTIONS

• DRC Port Input for DRC AC remote control (Optional)
• ADC Port Manage other Audison devices that support this standard
• 1 Wire Customizable functions (+ 12 V activated)
• 2 Wire Customizable functions (+ 12 V activated)

GENERAL REQUIREMENTS

• PC connections Micro USB 1.1 / 2.0 / 3.0 Compatible
• Software/PC requirements Windows 10, Windows 11
• Video Resolution with screen resize (min. res. 1024 x 768)
• Ambient operating temperature range 0 °C to 55 °C (32 °F to 131 °F)
• Weight 1.38 kg

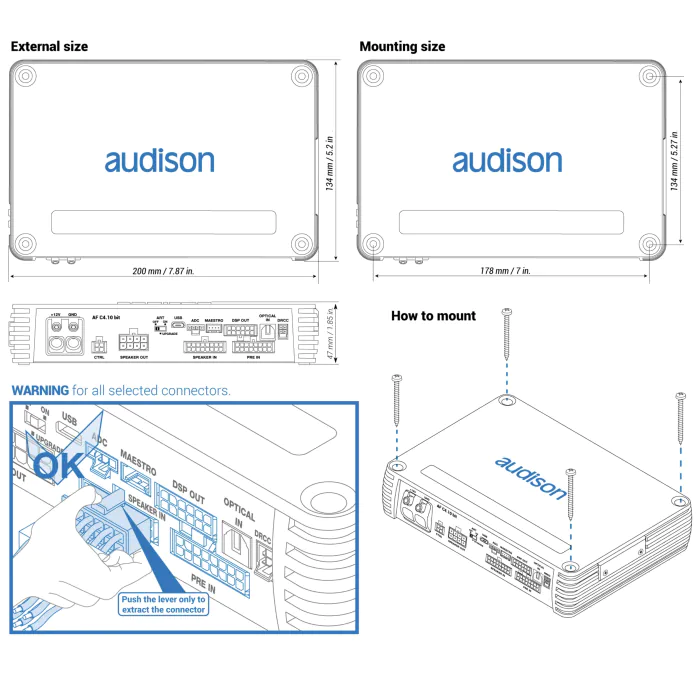

DIMENSIONS

• Dimension A 200 mm
• Dimension B 134 mm
• Dimension C 47 mm
