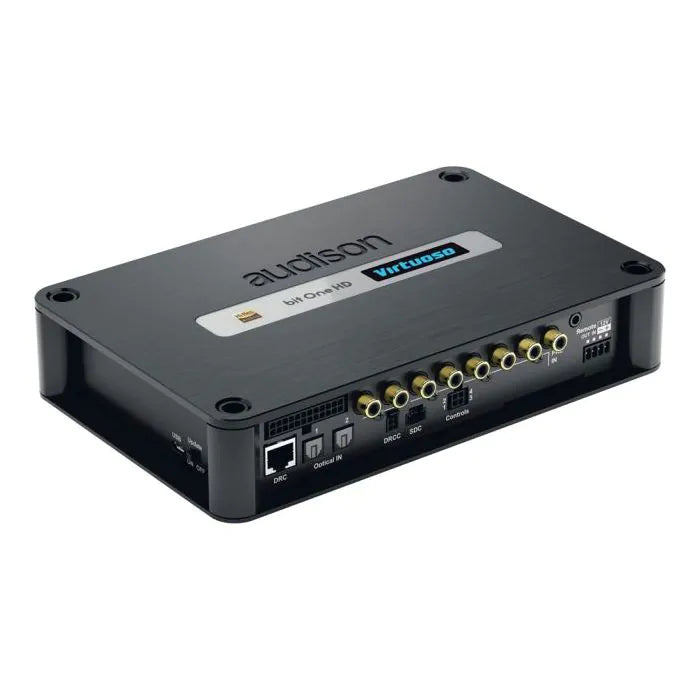

xbit One HD Virtuoso - High Definition Signal Processor
AUDIO PERFORMANCE
Distortion THD @ 1 kHz, 1 VRMS Output: 0.004 %
Bandwidth @ -3 dB: 10 Hz - 44 kHz
S/N ratio @ A weighted, 4 V Output, 2 V MASTER inputs: 104 dBA
S/N ratio @ A weighted, 4 V Output, 2 V AUX input: 105 dBA
S/N ratio @ A weighted, 4 V Output, OPTICAL IN1/IN2 input: 110 dBA
Channel Separation @ 1 kHz: 80 dBA
INPUTS
Low level (Pre) Ch1 - Ch6; AUX L/R
High Level (Speaker In) Ch1 - Ch12
Digital 2 x Optical: S/PDIF Max 192 kHz/24 bit
Input sensitivity PRE IN / Master: 1.3 - 9 VRMS
Input sensitivity Speaker IN / Master: 5 - 32 VRMS
Input sensitivity AUX: 0.7 - 5 VRMS
Input impedance Speaker In / AUX / Pre In: 15 K ohms (Pre IN / AUX) 5 ohms (Speaker IN)
OUTPUTS
Low level (Pre): Ch1 - Ch13 (IIR mode), Ch1 ? Ch 9 (FIR mode)
Max Output Level 0.1% THD: 4 V
Digital AD Link 1: Ch1 - Ch8 (IIR / FIR mode)
Digital AD Link 2: Ch9 - Ch13 (IIR mode); Ch9 only (FIR mode)
CONNECTION
From / To Personal Computer: 1 x micro USB
To Audison Amplifiers: 2 x (AC Link / AD LINK) control bus
Digital AD Link 1: Ch1 - Ch8 (IIR / FIR mode)
To Audison DRC MP: 1 x AC Link
CROSSOVER
Filter type: Full / High-Pass / Low-Pass / Band-Pass
Filter mode and slope Linkwitz: @ 12 / 24 / 36 / 48 dB
Butterworth: @ 6 / 12 / 18 / 24 / 30 / 36 /42 / 48 dB
Bessel: @ 6 / 12 / 18 / 24 / 30 / 36 dB
FIR: @ 6 / 12 / 18 / 24 / 30 / 36 / 42 / 48 dB
Crossover Frequency Lo-Pass: 0 - 44k Hz (1 Hz step)
Hi-Pass: 0 - 20k Hz (1 Hz step)
Phase control: 0 / 180 degrees
EQUALIZER (10 Hz - 20 kHz)
High Level Inputs (Speaker In): Automatic De-Equalisation, Delay Compensation, All Pass Compensation, Polarity check
AUX Input: Parametric Equalizer: +12 dB - -15 dB; 10 poles FIR type
OPTICAL IN1/IN 2 Inputs Parametric Equalizer: +12 dB - -15 dB; 10 poles FIR type
OUTPUTS IIR mode: N.13 Parametric Equalizers: +12 dB - -15 dB; 13 poles
FIR mode: N.13 Parametric Equalizers: +12 dB - -15 dB; 9 poles FIR type + 3 poles IIR type
MAIN EQ Parametric Equalizer: +12 dB - -15 dB; 5 poles FIR type + 1 pole IIR type Dynamic Equalisation
Dynamic Equalisation: Self-adjusting System between low and high listening levels
Bass Boost: Adjustable parametric pole (-12 dB; 10 - 500 Hz)
TIME ALIGNMENT
Distance: 1.4 - 756 cm / 0.6 - 297.7 inches
Delay 0 - 22 ms
Step 0.04 ms, 1.4 cm, 0.6 inch
GENERAL REQUIREMENTS
PC connections: USB 1.1 / 2.0 / 3.0 Compatible
Software/PC requirements Microsoft Windows (32/64 bit): XP, Vista, Windows 7, Windows 8, Windows 10
Video Resolution with screen resize min.: 800 x 600
Ambient operating temperature range: 0 C to 55 C (32F to 131F)
SIZE
W (Width) x H (Height) x D (Depth) mm/inch 148 x 43.6 x 233 / 5.82" x 1. 7" x 9.17"
Weight kg/lb 1.775 / 3.9
