Description

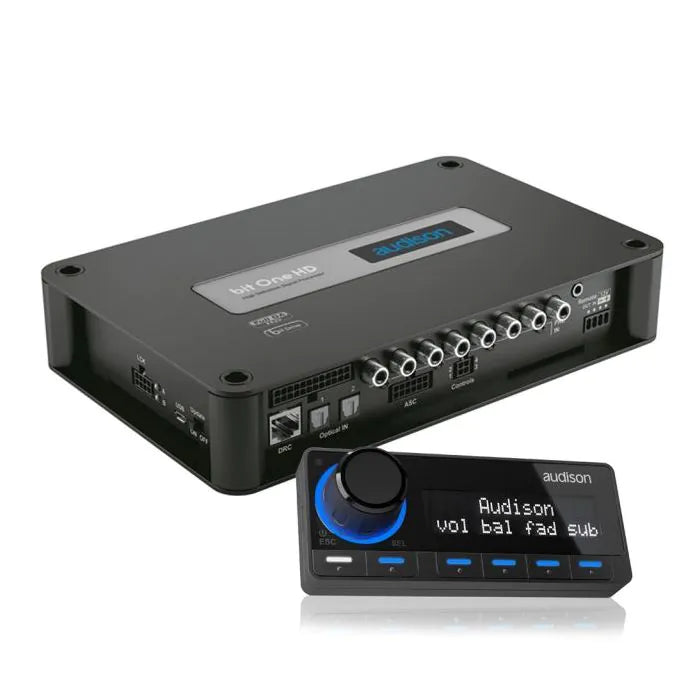

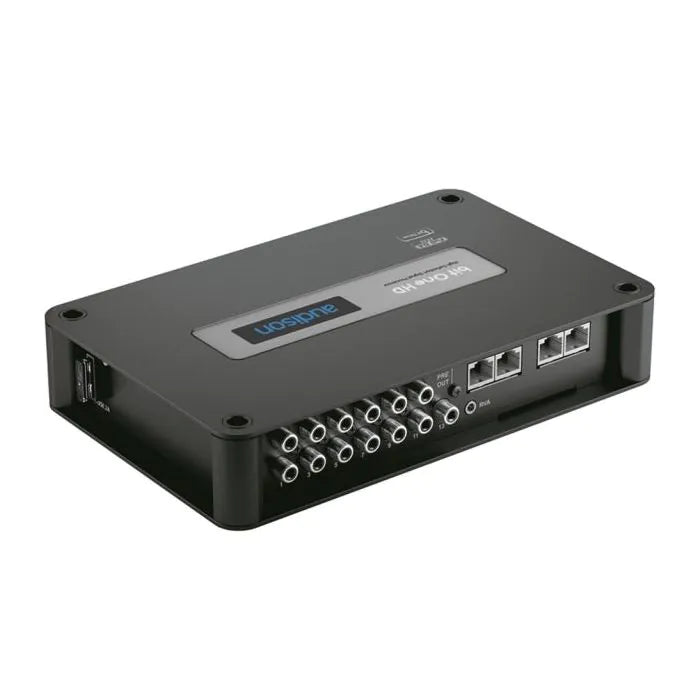

xbit One processor capable of processing 24bit 6kHz HD audio.
Eisa award winning product for 2016/17, this sophisticated sound processor is ideal for integrating multi-channel OEM systems and handles up to 13 channels. Features flexible, sophisticated filtering, equalisation and time alignment options previously unavailable to designers of high end HD audio systems.
A first of its kind and the perfect for full DA HD music systems.
- Voltage 11-15 VDC
- Operating power supply voltage 7.5 - 14.4VDC
- Idling current 0.75 A
- Switched off without DRC MP 2 mA
- Switched off with DRC MP 5 mA
- Remote IN voltage 6.5 - 15 VDC (1mA)
- Remote OUT voltage 10 - 15 VDC (130 mA)
- ART (Automatic Remote Turn ON) 4 - 7 VDC
- Fuse 2 A
- Distortion - THD @ 1 kHz, 1 VRMS Output 0.004 %
- Bandwidth @ -3 dB 4.5 Hz - 32k Hz
- S/N ratio @ A weighted
- Master Input 96 dBA
- AUX Input 95 dBA
- OPTICAL IN1 / IN2 Inputs 105 dBA
- Channel Separation @ 1 kHz 77 dBA
- Input sensitivity Pre Master 0.7 - 6.5 V RMS
- Input sensitivity Speaker Master 2 - 16 V RMS
- Input sensitivity AUX Master 0.3 - 5 V RMS
- Input impedance Pre In / Speaker In / AUX 15 k ohm
- Max Output Level (RMS) @ 0.1% THD 4 V
- Low level (Pre) Ch1-Ch6, AUX L/R
- High Level (Speaker In) Ch1-Ch12
- Digital 2 x Optical (S/PDIF; Max 192 kHz/24 bit)
- Low level (Pre) Ch1-Ch13
- Digital AD Link 1 Ch1-Ch8
- Digital AD Link 2 Ch9-Ch13
- Type: 12/24/36/48dB Linkwitz
- 6/12/18/24/30/36/42/48dB Butterworth
- Mode: Full / Hi Pass /LowPass /BandPass
- SIZE
- DxLxH (mm/inches): 225 x 150 x 32,3
- 8.85” x 5.90” x 1.27”
- Weight (kg/lb): 1.345 / 2.965
