Audison AVK6 - 16.5cm 6.5" VOCE Component Car Speakers 250W

The prestigious Eisa Award “European In-Car Speaker System 2010-2011” was bestowed to the AV K6 and AV K5 kits, which gather and comprise the most advanced technologies developed for the Audison components, at the service of music.
The whole R&D laboratory’s experience was poured into the design of these precious components, to create a synergy that can offer the highest quality sound in terms of bandwidth, dynamics of the musical message, naturalness and richness of details. The new reference for their own category.

Specifications:

• Component 2-way System
• Size mm (inch)  Size AV 6.5 Woofer 165 (6”1/2) / mm (inch) AV 1.1 Tweeter 28 (1”1/8)
• Power Handling Peak 250W, continuous 125W
• Impedance 4Ω
• Frequency Response Hz 50 ÷ 22k
• Sensitivity dB/SPL 91
• Crossover included Lo/Hi-Pass 2.5 kHz @ 12/12 dB/Oct.
• Component adjustment Tweeter +2; 0; -2 dB
• Magnet size D x d x h (inch) - Woofer mm 90 x 40 x 15 (3” 9/16 x 1” 9/16 x 9/16”)
• Magnet size D x h (inch) - Tweeter mm 28 x 3 (1” 1/8 x 1/8”)
• Weight of one component kg (lb): Woofer 1,2 (2,7) Tweeter 0,07 (0,16)
• Voice Coil Ø mm (inch) Woofer 30 (1”3/16)  Tweeter 28 (1”1/8)

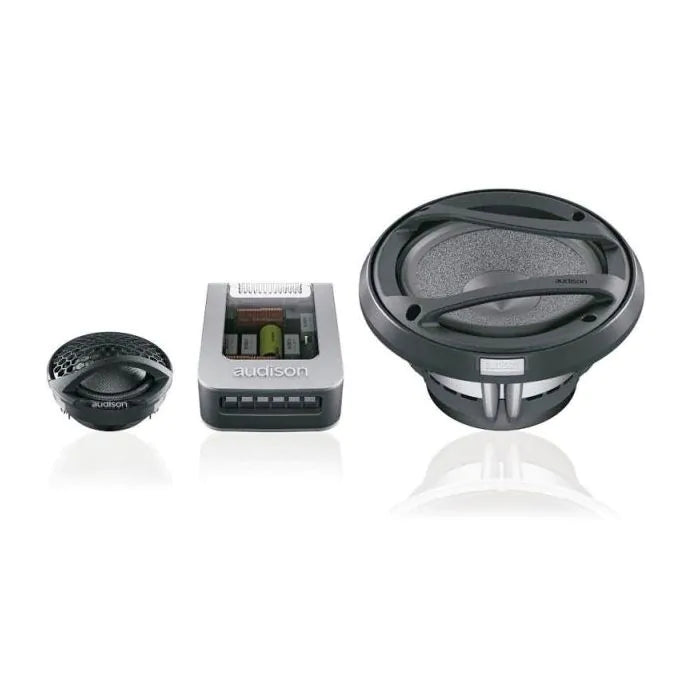

• Kit includes 2 x 6.5" woofers, 2 x tweeters, 2 x crossovers

TWEETER

1 Tetolon® dome, a combination of silk and cotton with proprietary damping treatment, provides low mass and
resonance-free response up to ultrasonic frequencies.
2 CCAW (Copper Clad Aluminium Wire) voice coil wound on double layer, extremely lightweight and compact, resulting in a very high efficiency and a crisp, dynamic sound.
3 The annular geometry of the Rear Damping Chamber, together with the proprietary damping material, extends
the frequency response to lower limits and reduces harmonic distortion.
4 High flux density Neodymium REN® magnet, for very high efficiency and detailed sound.

WOOFER

1 The profile of the aerodynamic basket’s spokes along with the “open-air” design ensure drastic reduction of back-wave reflections.
2 The exclusive Butyl rubber “Triple Wave” surround profile provides full linearity as well as reliable performance under extreme conditions.
3 Extremely lightweight and compact, the CCAW (Copper Clad Aluminium Wire) voice coils wound on double layer provide very high efficiency and neat, dynamic sound.
4 Cotton-fibre pressed paper cone with “Light Damping” treatment.
5 The Radial Venting System ensures high thermal capability, power handling and reliability.
