Description

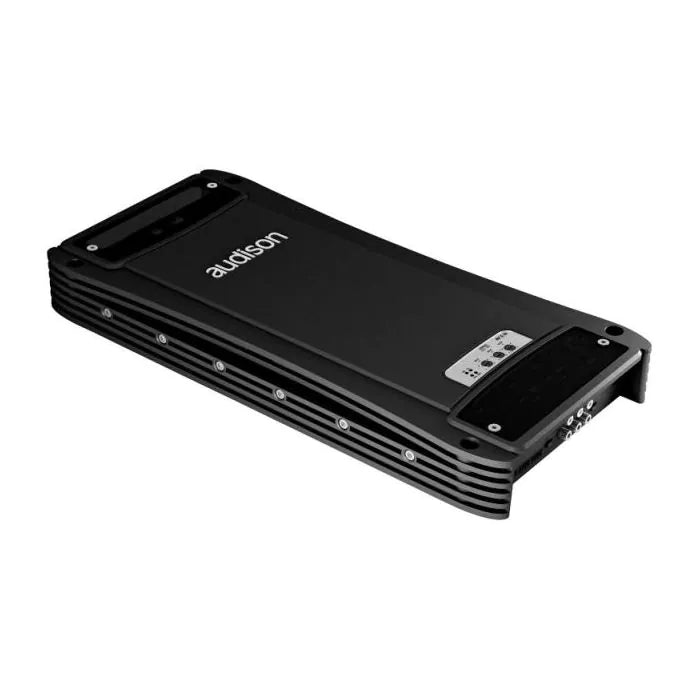

xAV 5.1k HD is the first Car Audio amplifiers featuring digital inputs only, providing the ability to connect directly to the digital outputs of a digital signal processor (DSP). Through this connection, made via the Audison AD Link available on the Audison processors (bit One HD, bit One, bit Ten D), a Full DA HD audio chain can be created. Thanks to this chain, the high resolution (96kHz/24 bit) digital audio signal coming from the head unit, via the processor, can be obtained up to just the Digital/Analog converter of the amplifier’s audio chain, ensuring maximum reduction of any signal deterioration.
The Audison AC Link can also be connected to control the amplifier as well as the AC Link and AD Link outputs, to expand the audio system with other Audison Voce amplifiers. These features make AV 5.1k HD the most advanced amplifier available in the market, perfect to appreciate the quality of Hi-Res audio files.
OUTPUT POWER (RMS) A + B + C Ch @ 14.4 VDC, THD 1%:
- 5 Ch: 75 W x 2 (4Ω) + 140 W x 2 (4Ω) + 600 W x 1 (4Ω)
- 5 Ch: 75 W x 2 (4Ω) + 140 W x 2 (4Ω) + 1000 W x 1 (2Ω)
- 5 Ch: 75 W x 2 (4Ω) + 250 W x 2 (2Ω) + 1000 W x 1 (2Ω)
Hi-Res audio
- According to the definition of HiRes audio provided by JAS (Japan Audio Society - jas-audio.or.jp), AV5.1k HD exceeds the 24 bit / 96 kHz digital to analog conversion processing requirement, providing an astonishing 24 bit / 192 kHz
FULL DA HD
- Pure digital signal transfer with a resolution up to 24 bit / 96 kHz
POWER SUPPLY
- Power supply voltage: 11 ÷ 15 VDC
- Idling current: 3 A
- Idling current when off: 0.02 mA
- Consumption @ 14.4 VDC (Max Musical Power): 110 A
AMPLIFIER STAGE
- Distortion - THD (1k Hz @ 4Ω ) A, B Ch: 0.05 %
- Distortion - THD (100 Hz @ 4Ω), C (sub) Ch: 0.3 %
- Bandwidth (-3 dB) A, B Ch: 4 ÷ 60k Hz
- Bandwidth (-3 dB) C (sub) Ch: 7 ÷ 350 Hz
- S/N ratio (A weighted @ 1V) A, B Ch: 100 dB
- S/N ratio (A weighted @ 1V) C (sub) Ch: 87 dB
- Damping factor (1k Hz @ 4Ω) A, B Ch: 100
- Damping factor (100 Hz @ 4Ω) C (sub) Ch: 80
- Input sensitivity: 0.3 ÷ 5 V RMS
- Input impedance: 15k Ω
- Speaker-In sensitivity: 1.4 ÷ 24 V RMS
- Speaker-In impedance: 5k Ω
- Minimum load impedance A / B / C Ch: 4Ω / 2Ω / 2Ω
- NOMINAL POWER (RMS) A + B + C Ch @ 12 VDC,
- THD 0,3%, 4Ω: 50 W x 2 + 120 W x 2 + 500 W x 1
- OUTPUT POWER (RMS) A + B + C Ch @ 14.4 VDC, THD 1%:
- 5 Ch: 75 W x 2 (4Ω) + 140 W x 2 (4Ω) + 600 W x 1 (4Ω)
- 5 Ch: 75 W x 2 (4Ω) + 140 W x 2 (4Ω) + 1000 W x 1 (2Ω)
- 5 Ch: 75 W x 2 (4Ω) + 250 W x 2 (2Ω) + 1000 W x 1 (2Ω)
CEA SPECIFICATIONS
- Output power @ 4Ω, 1% THD+N, 14.4 V:
- 75 W x 2 + 140 W x 2 + 600 W x 1
- SN ratio (ref. 1W output):
- 75 W Channels: 80 dBA
- 140 W Channels: 80 dBA
- 600 W Channels: 78 dBA

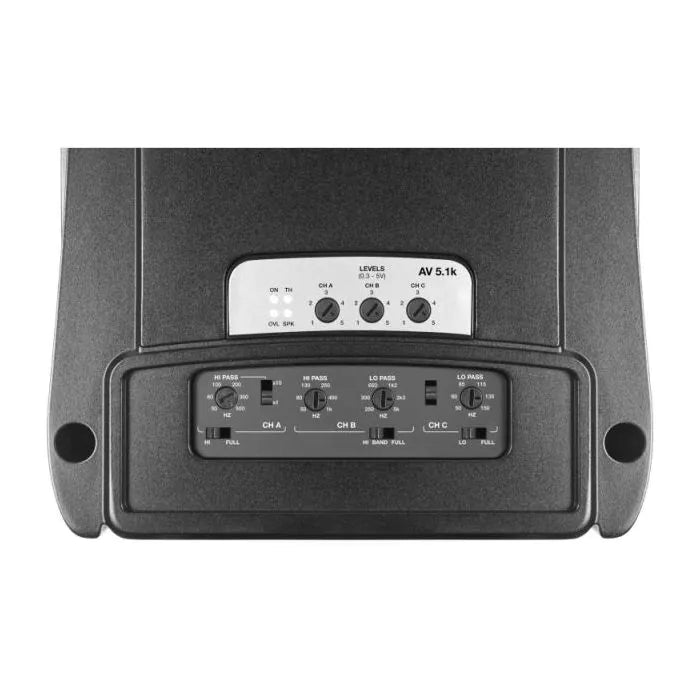

SIGNALS INPUTS / FILTERS
- Inputs: Pre IN / Speakers IN
- Outputs: Pre OUT Full Range
- A Ch Filters (Full / Hi-Pass): 50 ÷ 5k Hz (2 range) @ 12 dB/Oct.
- B Ch Filters (Full / Hi-Pass / Band-Pass): 50 ÷ 1k Hz (Hi) / 250 ÷ 5k (Lo) @ 12 dB/Oct.
- C Ch Filters (Full / Lo-Pass): 50 ÷ 150 Hz @ 24 dB/Oct.
OTHER FUNCTIONS
- Remote IN: 7 ÷ 15 VDC - 1mA
- Remote OUT: 12 VDC - 50mA
- Fuse (Strip type): 100 A
- Remote SUB volume adj.: (-50 ÷ 6) dB
- Speakers IN Turn-on (ART): Selectable
SIZE / WEIGHT
- Max size (mm/inches):
- 220 x 470 x 58 / 8,66” x 18,50” x 2,28”
- Weight (kg/lb): 7.2 / 15.87
