Description
xAUDIOPHILE SOUND YOU EXPECT FROM AUDISON

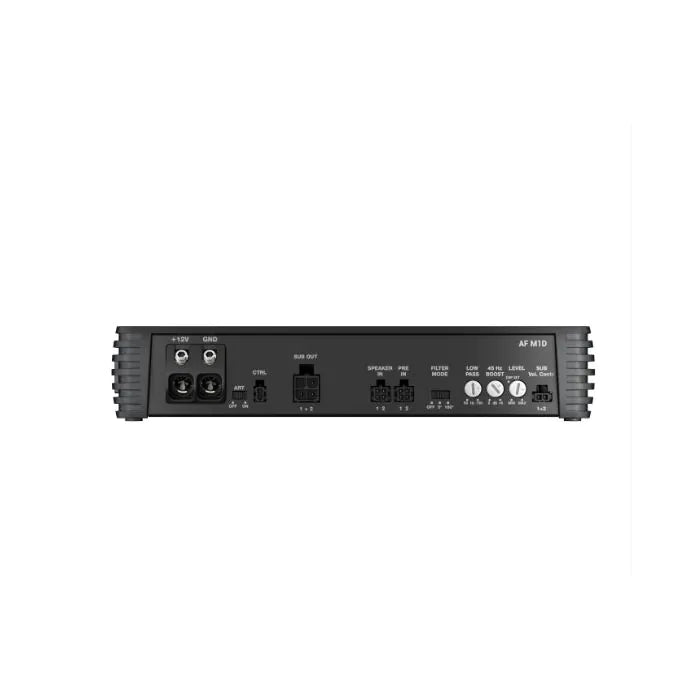

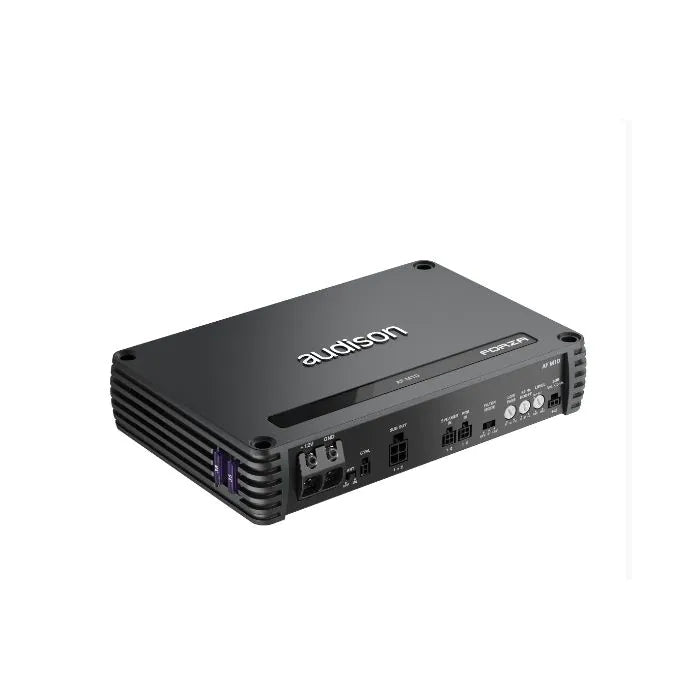

AF M1D boasts one high-fidelity amplified channel 600W @4Ω*, 1000W @2Ω*, and 1200W @1Ω* with the audiophile sound of the latest generation Audison D-Class technology. Higher switching frequencies, steeper filtering, and higher-tolerance components deliver sound above and beyond the expectation of Class D – in an amazingly compact package!
The optional VCR-S2 subwoofer volume control
provides the ability to adapt the subwoofer level (-20 / + 6 dB) to any personal preference and favorite music genre. VCR S2 features a bulletproof Molex connector.
Heading
Text
FEATURES
- Channels - 1
- Class - D-Class
- Hi Level Input -
- Low Level Input
- Digital Input - No
- Power supply voltage / fuse - 11 ÷ 15 VDC
- Operating power supply voltage - 6.5 ÷ 17.5 VDC
- Idling current - 1.3 A
- Idling current when off - 0.005 mA
- Consumption @ 14.4 VDC, 2Ω, Max Musical Power - 65 A
- Remote OUT - 6.5 ÷15 VDC (150 mA)
- Remote IN - 4 ÷15 VDC (1 mA)
- ART - Automatic Remote Turn on/off from OUTPUT BTL speakers (Selectable) - 1.5 VDC
AMPLIFIER STAGE
- Distortion - THD @ 100 Hz, 4Ω, 70% Rated Power - 0.03%
- Bandwidth A - (-3 dB, 2 VRMS, 4 Ω): 10 Hz ÷ 500 Hz
- S/N ratio A - (A weighted @ 1 V): 105 dBA
- Damping factor A - (100 Hz, 4Ω, 2 VRMS): 125
- Input sensitivity Pre-In - 0.6 ÷ 6 VRMS
- Input sensitivity Speaker-In - 2.2 ÷ 22 VRMS
- Total Power RMS - 1000 W
- Minimum load impedance - 1 Ω
- Output Power (RMS) @14.4 VDC, 1% THD
- 1Ch @ 4Ω: 600 W
- 1Ch @ 2Ω: 1000 W
- 1Ch @ 1Ω: 1200 W
- Adjustable Crossover
CEA SPECIFICATIONS
- Output power @ 4Ω, 1% THD+N, 14.4 V - 600 W
- SN ratio (ref. 1W output) - 81 dBA
INPUTS
- Input Type - Pre-In / Speaker-In
- Filter Pass A - Full / Low-Pass 50 ÷ 150 Hz @ 24 dB/Oct.
- Inputs/Outputs Phase - (0 ÷ 180 ) deg
- Inputs/Outputs Bass Boost - 45Hz (adjustable) - (0 ÷ 6) dB
- Remote Sub Volume - ±12 dB
WEIGHT
- Weight - 1.95 kg
DIMENSIONS
- 240 mm x 47 mm x 156 mm
