Description
xSpike Series Subwoofers feature a 3-layer voice coil former to handle some serious power. That means you can turn up the volume and still enjoy heart-pounding bass that’s free from distortion. You won’t believe the sound produced by the fiber matrix paper cone with mica coating – it’s like having a concert in your vehicle! Each Spike subwoofer comes with a protective grille to keep it safe from damage, so you can enjoy your journey with peace of mind.
Features
- High Excursion Design for Ultra-Low Bass
- Fiber Matrix Paper Cone with Mica Coating
- 3-Layer High Temp Voice Coil Former
- Dual Damping System for Linear Bass Reproduction
- Dual Dust Cap System for Enclosure Compression Control
- Efficient Heavy-Duty Motor Design

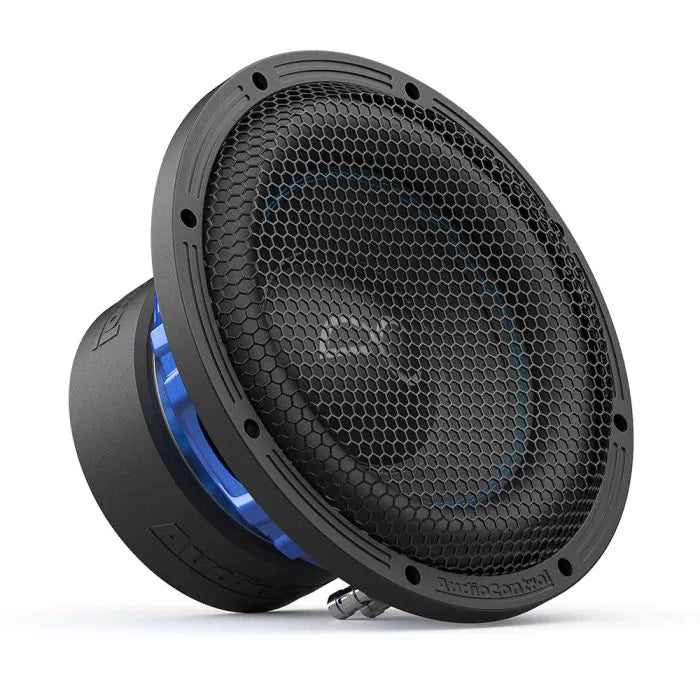

- Removable Subwoofer Grille Included
Specifications
Thiele/small parameters
- Nominal Impedance (Z) 2 ohms
- DC Resistance (Re) ]] 1.6 ohms
- Resonance Frequency (Fs) 37.3460 Hz
- Piston Area (Sd) 0.0491 m2
- Force Factor (BL) 11.0117 T.m
- Mechanical Q Factor (Qms) 7.6824
- Electrical Q Factor (Qes) 0.7362
- Total Q Factor (Qts) 0.6718
- Sensitivity 1W/M (SPL) 84.6196
- Mechanical Comp (Cms) 0.0764 mm/N
- Moving Mass (Mms) 237.7651 g
- Linear Excursion (Xmax) . 14 mm
- Volume Acoustic Comp (Vas) 25.7006 Ltr/ 0.9076 cu ft
- Reference Efficiency (NO.) 0.1011% RMS
- Power (Pe) 500 Watts
- Frequency Response 20-200 Hz
- Voice Coil Diameter 2.5 in/63.5 mm
- Displacement 0.0885 cu ft/ 2.506 Lt
In the box:
- SPK-12S2, Manual, Warranty
Dimensions:
- Overall Dimensions: 12.76in/ 324mm
- Cut Out Diameter: 11.125 in/ 282mm
- Mounting Depth: 6.14 in/ 156 mm
- Mounting Height (w/o Grille): 0.68in / 17.3mm
- Mounting Height (w/ Grille): 1.437in / 36.5mm
- Motor Diameter (w/ Cover): 6.41in / 163mm
