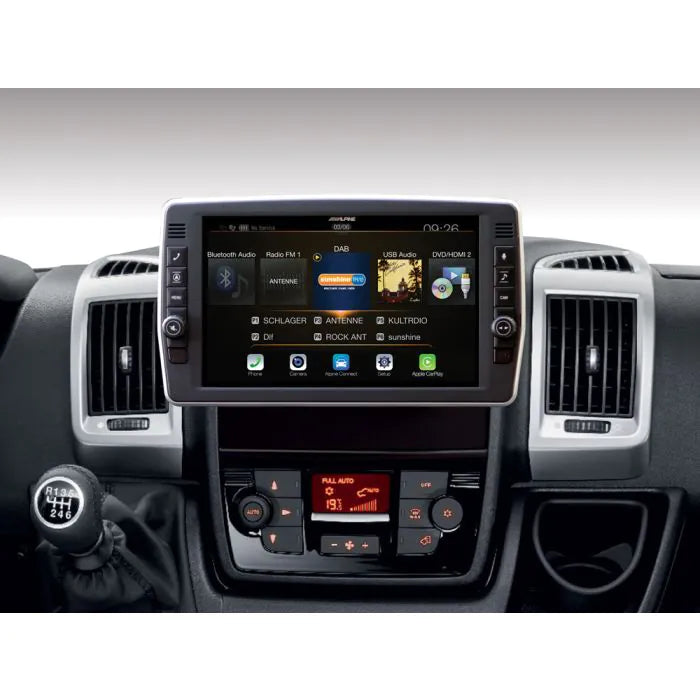

Alpine X903D-DU2 - 9" Swivel Display Touch Screen GPS Bluetooth Carplay/Android Auto Stereo

SPECIFICATIONS

Screen

• Screen Size: 9 inch Capacitive WVGA with swivel function (left / right)
• LCD Type: Transparent Type TN LCD
• Number of Picture Elements: 1,152,000 pixels (800 x 3 x 480)
• Max Power Output Ratings
• Max Power Output: 4 x 50 W

FM Tuner

• Tuning Range: 87.5 - 108.0 MHz
• Alternate Channel Selectivity: 80 dB
• Signal-to-Noise Ratio: 65 dB

MW Tuner

• Tuning Range: 531 - 1,602 kHz

LW Tuner

• Tuning Range: 153 - 281 kHz

USB

• USB Requirements: USB 2.0
• Max. Power Consumption: 1,500 mA (CDP Support)
• USB Class: Mass Storage Class, Play From Device
• File System: FAT 16/32
• MP3 Decoding: MPEG-1/2 AUDIO Layer-3
• WMA Decoding: Windows Media™ Audio
• AAC Decoding: ACC-LC format ′′.m4a′′ file
• Flac Decoding
• USB Video playback (AVI/MP4/MKV file with H.264 Video and MP3/AAC Audio)
• Number of Channels: 2-Channel (Stereo)

BLUETOOTH®

• BLUETOOTH® Version: Bluetooth V3.0+EDR
• Output Power: +4 dBm Max. (Power class 2)
• HFP: HFP (Hands Free Profile)
• PBAP (Phone Book Access Profile)
• HSP (Head Set Profile)
• A2DP: A2DP (Advanced Audio Distribution Profile)
• HDMI Section
• Input Format 480p/VGA
• Output Format 480p

General

• Power Requirement: 14.4 V. DC (11-16V allowable)
• Pre Output Voltage (Before Clipping): 4 V / 10k ohms
• Maximum Mounting Angle: 30°

Dimensions

• X903D-DU2: Fits for Fiat Ducato III (250), CITROËN Jumper II (250)  and Peugeot Boxer II (250)
• Chassis Size (W x H x D) mm: 178 x 50 x 164 mm

The Caravan and Camper Software considers following restrictions and limitations by calculating the route and also gives warnings whilst driving without calculated  route in 40 countries*:General through traffic restrictions for trucks (i.e. environmental zones)

• Through traffic restrictions for all categories of dangerous goods
• (i.e. explosives, flammables)
• Turn and U-Turn restrictions for trucks
• Restrictions for trailers
• Limitations of length
• Limitations of width
• Limitations of height
• Limitations of weight
• Height and width limitations of tunnels and bridge pass throughs
• Maximum allowed weight of bridges
• * Andorra, Austria, Belgium, Bulgaria, Croatia, Czech Republic, Denmark, Estonia, Finland, France, Germany, Gibraltar, Greece, Hungary, Iceland, Ireland, Italy,
• Kazakhstan, Kosovo, Latvia, Liechtenstein, Lithuania, Luxembourg, Monaco, Netherlands, Norway, Poland, Portugal, Romania, Russia, San Marino, Serbia, Slovakia,
• Slovenia, Spain, Sweden, Switzerland, Turkey, Ukraine, United Kingdom

Compatible Cars

• Fiat Ducato III (250) 06/2006 – 2010
• Fiat Ducato III Facelift (250) 2011 – 2014
• Fiat Ducato III (290) 2014 – 2021
• Citroën Jumper II (250) 06/2006 →
• Peugeot Boxer II (250) 06/2006 →
• Opel Movano III (TypC) 10/2021 →
• For cars with a 1 DIN radio or radio preparation.
• Cable Harness with ISO / Mini-ISO connector necessary.
• Additional KIT-DU-OEM required (sold separately) for vehicles with VP1, VP2, 7-inch Navi radio and/or with 52-pin connector
