Description
xHi-Res Audio DSP Amplifier

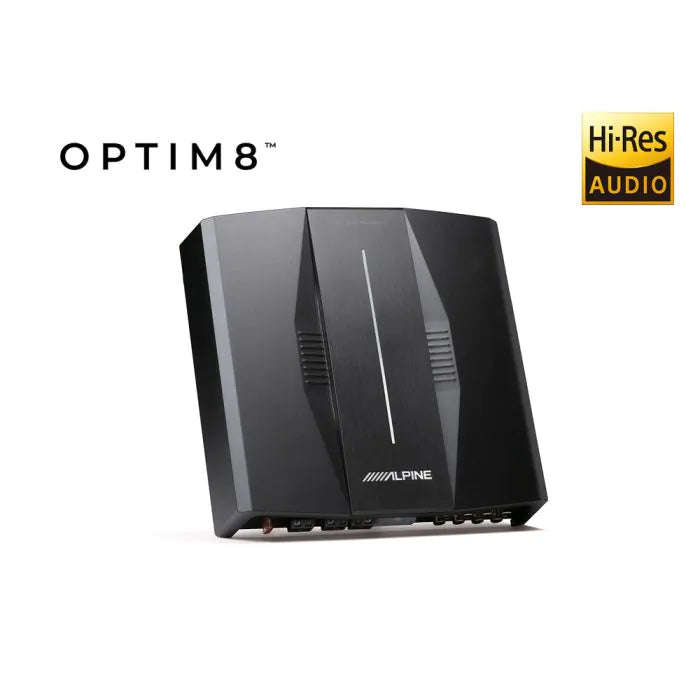

With introduction of the Alpine OPTIM8, we have eliminated the pain and confusion that usually goes along with trying to tune your system's sound using a digital signal processor or DSP/amplifier by making an amplifier that tunes itself. The 8-channel PXE-C80-88 DSP amplifier features automatic sound tuning and High-Definition performance so you'll experience exceptional fidelity, clarity, balance, and impact in your music without having to spend hours fiddling with controls and testing devices.
Professional Sound Tuning Software
Matrix mixing allows for summing and input/output signal management. Fully adjustable high-pass, low-pass, and band-pass filters, plus 31-band equalizers on every channel match the sound to your speakers and smooth out any hot spots or dips in the response due to your vehicle's interior. The delay feature lets you center the stereo image for your listening position. After initial setup using your PC device, all adjustments can be made automatically using the PXE-C80-88's control app on your iPhone using its built-in mic, or with your PC using a separate measurement microphone, like the Alpine KTX-CSP1. PC users can make all the sound adjustments manually to create a more personalized soundscape.
Alpine OPTIM8: A Fresh Approach to Car Audio Tuning
The groundbreaking Alpine OPTIM8 is the ultimate all-in-one solution designed to effortlessly optimize and amplify any sound system with remarkable precision. The powerful DSP amplifier features Eilex PRISM™ technology, which presents a fresh approach to perfecting car audio. It measures frequency response using the Acoustic Power Volume Density (APVD) method, simultaneously correcting time and phase alignment errors in speaker systems. The technology aims to ensure that the output sound is as close as possible to the original source, offering remarkable musicality and intelligibility. This happens automatically and takes the user no longer than 5 minutes.
Features
- 8 Channel DSP Amplifier
- Hi-Res Audio Playback (96kHz/24Bit)
- Intuitive Real-time Sound Set-Up with 5 Minute Vehicle Self-Tuning
- Manual & Automatic Sound Tuning with PC App Control
- Automatic Sound Tuning with iPhone App (must be iPhone 10 or newer)
- Anti-EQ for OEM System (Eliminates Factory EQ Curve)
- Auto-EQ with APVD Collection which Quickly Creates a Flat Vehicle Response
- Compatible with the KTX-CSP1 PC Mic Tuning Kit (sold separately)
Specifications
- Power Output (@4Ω 14.4V 1% THD): CH1-6: 35W, CH7-8: 130W
- Power Output (@2Ω 14.4V 1% THD): CH1-6: 70W, CH7-8: 260W
- RCA Output (@10kΩ 14.4V 0.1% THD): CH1-8: 4Vpp
General
- Up to 8 speaker outputs with independent adjustable output level
- THD+N (High level: 2Vrms into 4Ω): ≤0.1%
- THD+N (RCA: 2Vrms into 10kΩ): ≤0.06%
- S/N Ratio (High level: 40k-AES17+A-weighted): ≥80dB
- S/N Ratio (RCA: 40k-AES17+A-weighted): ≥95dB
- Frequency Response: 20Hz-40kHz
- Input Voltage (High level): 26Vpp
- Input Voltage (RCA): 11Vpp
- Output Voltage (High level): CH1-6: 40Vpp, CH7-8: 70Vpp
- Output Voltage (RCA): 4Vpp
- Input Impedance (High level/RCA): >50kΩ
- System Sampling Rate: 192kHz/32bit
- Operating Voltage: 9~16V
- Operating Temperature: -20°C~+60°C
- Back Up Current (12.6V): ≤3mA
- REM Start Input: High level (H1-/H1+), ACC optional
- REM Start Output: 12V (0.2A)
- Dimensions: Width 220.5mm / Depth 225mm / Height 54mm
- Weight: 2.4kg
