xAre you satisfied with your car stereo’s sound quality?
Anybody with a daily commute of 45 minutes one way spends about 300 hours per year in the car – simply to get to work and back home. Add any other drive and you easily get to over 500 hours per year. While we drive, we all listen to music to keep us entertained. In fact, for most people the car is the #1 location to enjoy music. So why not to invest in a proper sound system that lets you really enjoy your tunes, instead of simply listening to something in the background?! The Alpine PDP-E802DSP is a very versatile, affordable solution to bring amazing sound quality and dynamic into your vehicle.
Extensive sound tuning options
With the Alpine DSP amp, you get a professional sound studio out of the box: a 240-band Parametric EQ (30-bands per channel) lets you adjust the sound in great detail. You also get 8-channel digital time correction and an 8-channel digital crossover for perfect channel setup. Free analog routing allows you for example, to summarize several channels to create a center channel.

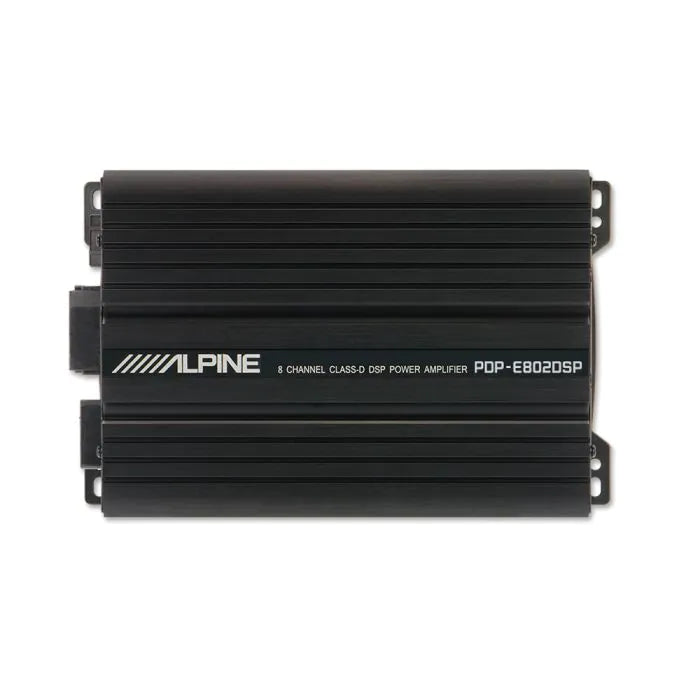

PDP-E802DSP
The PDP-E802DSP is the second generation of Alpine’s 8-Channel Digital DSP amplifier. This amazing all-in-one solution allows sound upgrading for virtually any vehicle with its incredible versatility and connectivity options. Featuring 6 input channels (both pre-amp and speaker level), as well as up to 8 fully configurable output channels allow for a very wide range of system applications and flexibility. Tune your sound with a professional 240-band Parametric EQ, 8 channel digital time correction, as well as a 8 channel digital crossover.
GENERAL
- 6CH analog input for highly flexible system integration
- RCA (Low Level) (10kΩ): 0.5 to 4V (rms)
- Speaker Line (High Level) (22Ω): 2 to 18V (rms)
- 1 digital TOSLINK/SPDIF input
- Up to 8 speaker outputs with high power rating
- 110dB signal-to-noise ratio (digital input)
- Channel separation > 75dB
- USB Device input for DSP setup by PC
- Wireless connection with separate module (amp setup) for PC only, or wireless audio streaming (smart phone or PC))
- Class-D amplifier with fully digital audio path
- ADCs by Burr Brown
- Remote app for iOS and Android with basic control functions (Master level, Sub level, Preset recall, source selection)
- Pre-amp output (copy from channel 8, for external subwoofer amp)
AMP
- Full digital audio path
- High output power capability
- Total power 700 Watt RMS into 4Ω
- 100 Watt per channel into 4Ω
- 120 Watt per channel into 2Ω
- 200 Watt into 2Ω (two paralleled channels)
- Advanced diagnostics for each output channels (short circuit, overheat, clipping)
- Start-Stop Engine compatible
- Load Capability: ≥2Ω
- Paralleled output supported
DSP
- Analog Devices DSP (ADAU1452)
- Up to 8 speaker outputs with independent adjustable output level
- Independent or linkable setups for all output channels
- Delay on each channel up to 13.53ms, 0.01msec steps
- 30-band Graphic Equalizer per channel with configurable frequency, Q (from 1 up to 15) and Gain (-30dB /+10dB)
- Digital X-Over for each channel (HP, LP, BP) 6/12/18/24dB/30dB, type of filter (Butterworth, Bessel, Chebyshev, Linkwitz-Riley) selectable
- Phase Inversion (0°,180°)
- Master Volume (0 to 42dB)
- Sub control (0 to 15dB)
- Possibility to save/load up to 6 presets on DSP
- External Preset toggling (Preset #6)
- Settings can be secured by certificates
- Free adjustable analog routing (example: channel mixing for center channel or 3-way input signal)
- EQ ON/OFF possible (for each channel)
- Delay grouping for easier TCR adjustment (up to 4 groups possible)
- TCR ON/OFF for each channel possible
- TCR help calculation for beginners
- Overview page for all settings
- Live monitor (for battery voltage and amp temperature)
- Turn ON by signal, DC bias or wire
- Alpine RUX-KNOB2 ready (master volume or sub level)
- Additional gain on digital input (+6, +9dB). For matching analog/digital source levels.
