Alpine iLX-705DM - 7” Digital Media Bluetooh Apple CarPlay/Android Auto

Specifications:

• 4x 50 Watts Class-D High Power Amplifier
• 7-inch Capacitive Touch-Screen WXGA Display (1280 x 720p)
• Display angle adjustable after installation
• 3 PreOuts (4 V, Front / Rear / Subwoofer)
• 1 A/V AUX Input (3.5 mm micro jack)
• 1 HDMI input / 1 HDMI output
• 2 USB Ports (1x USB data port / 1x USB charging)
• Steering Wheel Remote Control Ready
• Vehicle Display Interface Ready (UART connection)
• Remote Control Ready
• 2x Camera Connection (Camera Direct connector) Note: does not support KCX-C250MC camera switch box
• Camera Distance Guides (adjustable)
• Live Contrast Adjustment
• Menu Language: 24 Languages
• Auto Dimmer
• Anti-theft security code
• Engine Start-Stop unaffected

Screen

• Screen Size: 7-inch Capacitive WXGA
• Number of Picture Elements: 2,764,800 pixels (1280 x 3 x 720)
• Illumination System: White LED Backlighting
• Effective Number of Picture Elements: 99.99%
• Colour System: NTSC, PAL
• Max Power Output Ratings
• Max Power Output: 4x 50 W

Radio / DAB Tuner

• FM Tuning Range: 87.5 - 108.0 MHz
• AM Tuning Range: 531 - 1,602 kHz
• DAB band III: 174 – 240 MHz
• Alternate Channel Selectivity: 80 dB
• Signal-to-Noise Ratio: 65 dB
• DAB audio format: DAB/MPEG 2, DAB+/AAC, DMB Profile 1/BSAC/DMB profile 2/AAC
• WiFi
• Reception Frequency: IEEE 802.11 B/g/n (2.4 GHz)
• Channels: 1 – 13 ch (2.4 GHz)
• Security Protocols: WPA3/WPA2-PSK (TKIP, AES)

USB

• USB Requirements: USB 2.0
• USB 1: data port / 2,400 mA (Mass Storage Class)
• USB 2: charging port / 1,500 mA (CDP support)
• USB Class: Mass Storage Class, Play From Device
• File System: FAT16 / FAT32 / exFAT
• FLAC, MP3, WMA, AAC, WAV, APE Decoding
• Video Playback: MP4, MOV, FLV, MKV compatible
• Supported Video Coding: MPEG-4/H.264 (MPEG-4/AVC)/MPEG-1/MPEG-2
• Number of Channels: 2-Channel (Stereo)
• Frequency Response: 5 - 40 kHz ±1 dB *Frequency Response may differ depending on the encoder software/bit rate
• Total Harmonic Distortion (at 1 kHz): 0.005%
• DynamicRange(at 1kHz): 95 dB
• Signal-to-Noise Ratio: 95 dB
• GPS / Glonass
• GPS / Glonass compatible navigation antenna included
• GPS frequency: 1575.42 +/- 1.023 MHz
• Reception sensitivity (search): - 136 dB max

BLUETOOTH®

• BLUETOOTH® Version: Bluetooth V4.2
• Output Power: +4 dBm Max. (Power class 2)
• HFP (Hands Free Profile)
• OPP (Object Push Profile)
• PBAP (Phone Book Access Profile)
• HSP (Head Set Profile)
• A2DP (Advanced Audio Distribution Profile)
• AVRCP (Audio/Video Remote Control Profile)
• SPP (Serial Port Profile)
• Supports LDAC Audio Codec

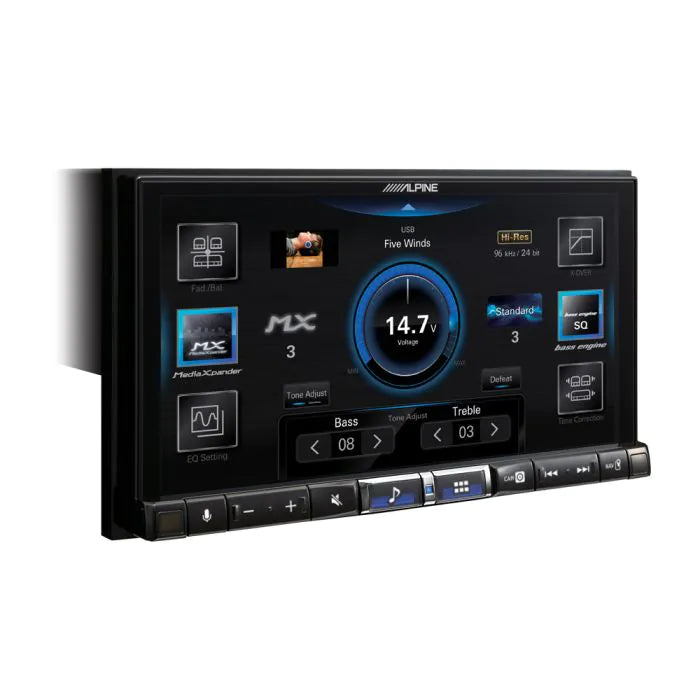

Sound Tuning

• Subwoofer Level Adjustment: 0 to +15
• Subwoofer Phase Setting: 0° or 180°
• BASS ENGINE SQ: 5 Modes, Level 0 to +6
• For detailed sound setting bands and frequencies please see the owner’s manual PDF below in the SUPPORT section
• HDMI Section
• Input Format 720p / 480p / VGA

General

• Power Requirement: 14.4 V. DC (11-16V allowable)
• Pre Output Voltage (Before Clipping): 4 V / 10k ohms

Dimensions

• Weight: 1.4 kg
• Chassis Size (W x H x D) mm: 178 x 50 x 150 mm
• Display Size (W x H x D) mm: 171 x 96 x 18 mm
