Description

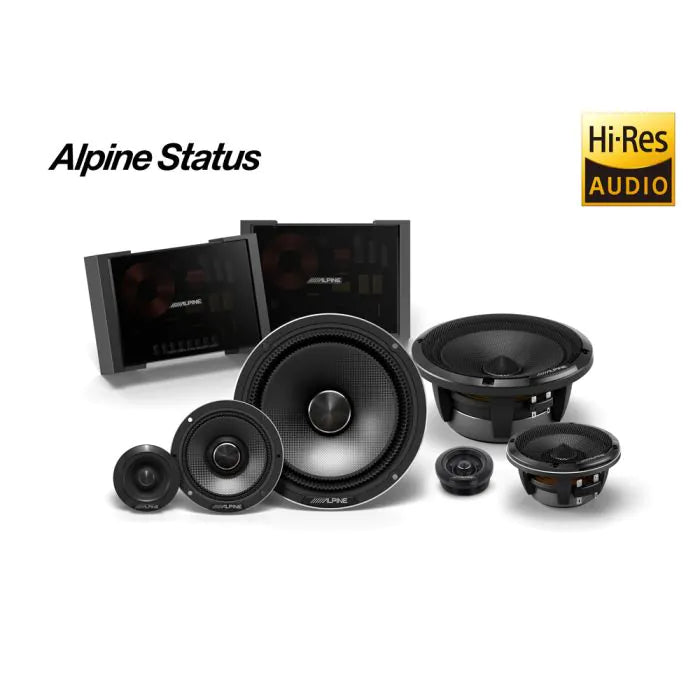

xSlim-Fit 3-Way Speaker System
Audio certified speakers deliver highest audiophile sound quality up to 40kHz in your vehicle. The 3-way system consists of 170mm door woofers, 96mm mid-range speakers and 40mm Slim-Fit tweeters. They also include high-end X-over networks in the set.
Slim-Fit Tweeter
The included 40mm Hi-Res Audio slim-fit tweeters sound simply amazing and play up to 40kHz. They are significantly smaller than the HDZ-653 tweeters, with the focus on easy installability. They also include an integrated wave-guide, tuned-back chamber and a powerful neodymium magnet.
Hi-Res Audio Made Accessible
The Alpine Status system features many technologies, components and materials of the AlpineF#1Status system to achieve ultra high-precision music reproduction - at an affordable price tag. It is designed to play music tracks at 192kHz / 24bit format, which are widely accessible in many online stores and streaming platforms. High-Res Audio playback of 192kHz / 24bit allows Alpine Status to create a heightened listening experience in the vehicle that emulates the feeling of an intimate recording studio session.
Features
- Hi-Res Audio certified 3-Way speaker system
- AlpineF#1Status speaker trickle-down technology
- Maximum Peak Power: 300 Watts
- Maximum RMS Power: 100 Watts
- Woofer diameter: 170mm (177mm with attached grill)
- Mid-range diameter: 96mm
- Tweeter diameter (slim-fit): 40mm (58mm with housing)
- Aluminum die-cast baskets
- Backed carbon fiber cones
- Double-gathered edge
- High-end X-Over networks
- Included speaker grills
- Integrated Wave Guide on all speakers
Specifications
- Impedance 4Ω
- Sensitivity 88dB SPL (2.83 V @ 1 m)
- Frequency Response: 55Hz – 40kHz
- Mounting depth: woofer 67mm / mid-range 39mm
- Cutout diameter: woofer 142mm / mid-range 79mm
- Recommended amplification: up to 100W RMS per channel
- Ferrite magnet (woofer)
- Neodymium magnet (mid-range speaker and tweeter)
Thiele & Small Parameters Midrange Speaker:
- Re: 3.67 Ohm
- fs: 165 Hz
- Mms: 4.140 g
- Rms: 1.228 kg/s
- Cms: 0.225 mm/N
- BI: 4.110 N/A
- Qms: 3,495
- Qes: 0,932
- Qts: 0,736
- Vas: 0.4711 l
- Sd: 38.48 cm2
Thiele & Small Parameters Door Woofer:
- Re: 3.58 Ohm
- fs: 62 Hz
- Mms: 18.341 g
- Rms: 1.436 kg/s
- Cms: 0.359 mm/N
- BI: 6.407 N/A
- Qms: 4,979
- Qes: 0,624
- Qts: 0,554
- Vas: 8.9526 l
- Sd: 132.73 cm2
