Description
xSource Input Options
You can chose from many source inputs: connect your original radio’s speaker lines to the 4-channel high-level inputs to enjoy all original audio sources of your vehicle. There is also a 2-channel RCA input, 3 USB ports (supporting up to 192kHz / 24bit) and of course Bluetooth Audio streaming (supporting up to 96kHz / 24bit).
Bluetooth Audio Streaming
Wireless Bluetooth connection to your smartphone or Bluetooth-enabled digital audio player is also possible, thanks to the built-in high-end LDAC and aptX HD standards. You can stream music up to 96kHz / 24bit quality. Additional supported Bluetooth Audio Codecs are SBC, AAC and aptX.
Hi-Res Audio Made Accessible

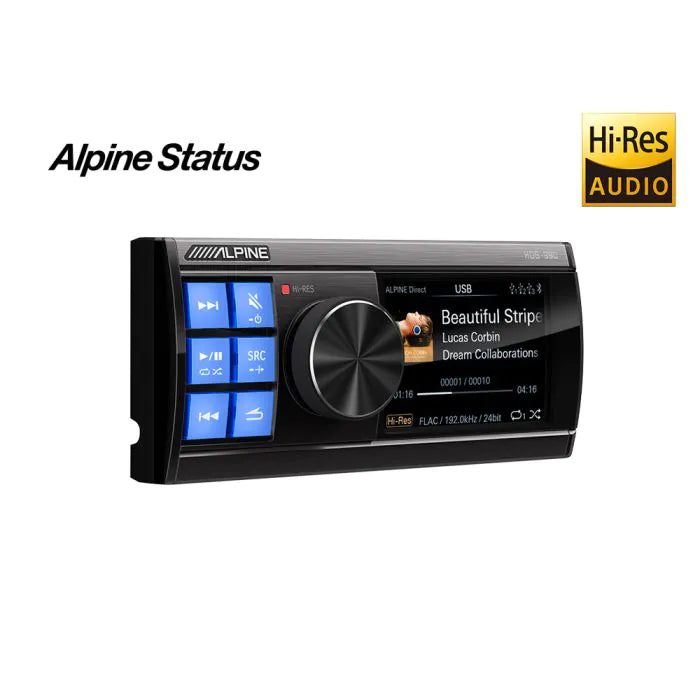

The Alpine Status system features many technologies, components and materials of the Alpine F1Status system to achieve ultra high-precision music reproduction - at an affordable price tag. It is designed to play music tracks at 192kHz / 24bit format, which are widely accessible in many online stores and streaming platforms. High-Res Audio playback of 192kHz / 24bit allows Alpine Status to create a heightened listening experience in the vehicle that emulates the feeling of an intimate recording studio session.
Features
- Hi-Res Audio Media Player (192kHz / 24bit max sampling rate with down-sampling)
- External control unit with hide-away 1DIN media-box
- Color display
- 3 USB Ports (1 front / 2 back ports) for audio playback
- Bluetooth Audio Streaming (LDAC, aptX HD)
- 4x 50Watts built-In amplifier
- 6-channel 31-band Parametric EQ
- 3-way digital X-Over
- Digital Time Correction
- MP3, WMA, AAC, MP4, WAV, FLAC, APE and DSD playback
- 4-channel high-level inputs
- 2-channel AUX inputs (RCA)
- 4-channel high-level outputs (4x 50 Watts)
- 6-channel RCA outputs
- Optical TOSLINK output
- Coaxial output
- Rotary encoder
- Blue button illumination
Specifications
- Performance
- Power Output (rated 4Ω, 14,4V, 10%THD): 25W RMS x4
- THD+N (RCA 1W into 4Ω): ≤ 0.03%
- S/N (RCA A-wt): ≥ 98dB
- Input Voltage: high level 32Vpp, RCA 8Vpp
- Output Voltage: high level 28Vpp, RCA 12Vpp
- Frequency response (1W into 4Ω): 20Hz – 40kHz (+/-1.5dB)
General
- System sampling rate: 192kHz / 32bit
- Operating voltage: 9 – 16V
- Standby power consumption ≤ 0.1W
- REM start input: high level (FL+/FL-), ACC optional
- REM start output: 12V (0.2A)
- Weight: 0,77kg
- Dimensions (main unit): width 178mm, depth 144mm, height 50mm
- Dimensions (controller without installation frame): width 122mm, depth 12mm, height 54mm
Music Player
- Interface: USB 2.0
- Storage capacity: maximum support 2TB
- File system: FAT16/32, NTFS, exFAT
- Maximum number of songs: 10.000
- MP3 Decoding: MPEG Audio Layer-3, sampling frequencies: 48kHz, 44.1kHz, 32kHz, 24kHz, 22.05kHz, 16kHz, 12kHz, 11.025kHz, 8kHz. Bit rate: 8-320kbps
- WMA Decoding: Windows Media Audio, Sampling frequencies: 48kHz, 44.1kHz, 32kHz, 22.05kHz, 16kHz, 11.025kHz, 8kHz. Bit rate: 12-192kbps (stereo), 0-128kbps (mono)
- AAC Decoding: “.M4A” file in ACC-LC format, sampling frequencies: 48kHz, 44.1kHz, 32kHz, 24kHz, 22.05kHz, 16kHz, 12kHz, 11.025kHz, 8kHz. Bit rate: 8-320kbps
- MP4 Decoding: MPEG Audio Layer-4, sampling frequencies: 48kHz, 44.1kHz, 32kHz, 24kHz, 22.05kHz, 16kHz, 12kHz, 11.025kHz, 8kHz. Bit rate: 8-500kbps
- WAV Decoding: Wave sound file, sampling frequencies: 192kHz, 176.4kHz, 96kHz, 88.2kHz, 48kHz, 44.1kHz, 32kHz, 24kHz, 22.05kHz, 16kHz. Bit rate: 8bit, 16bit, 24bit
- FLAC Decoding: Free Lossless Audio Codec, sampling frequencies: 192kHz, 176.4kHz, 96kHz, 88.2kHz, 48kHz, 44.1kHz, 32kHz, 24kHz, 22.05kHz, 16kHz, 12kHz, 11.025kHz,
- 8kHz. Quantization bits: 8bit, 16bit, 24bit
- APE Decoding: Monkey’s Audio, sampling frequencies: 192kHz, 176.4kHz, 96kHz, 88.2kHz, 48kHz, 44.1kHz, 32kHz, 24kHz, 22.05kHz, 16kHz, 12kHz, 11.025kHz, 8kHz.
- Quantization bits: 16bit, 24bit
- DSD Decoding: Direct Stream Digital (DSD64, DSD128, DSD256), sampling frequencies: DSD64 2.8224MHz, DSD128 5.6448MHz, DSD256 11.290MHz
- Bluetooth Supported Audio Formats: SBC / AAC / LDAC
