Description

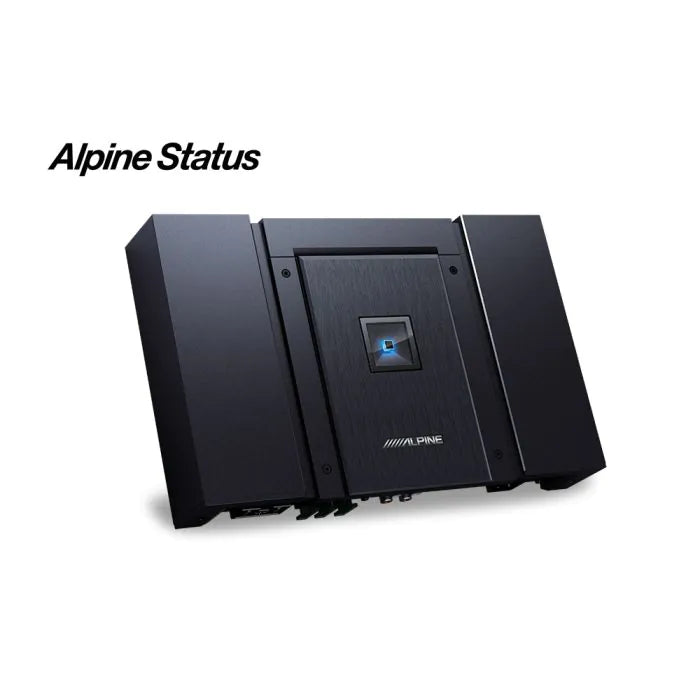

xClass-D Mono Power Amplifier
The HDA-M80 Mono Power Amplifier features a Class-D amplification circuit with Sierra-H technology (see below for more details on Sierra-H). It features an RMS power output of 1x 500 Watts @ 4Ohm or 1x 800 Watts @ 2Ohm and a frequency response of 8Hz to 400Hz (-3dB).
Sierra-H Circuit
After the original analog sound wave is converted to a digital signal and amplified, the Sierra-H circuit compares and corrects the amplified signal with the original waveform twice, to reproduce a highly accurate signal without any gaps.
Hi-Res Audio Made Accessible
The Alpine Status system features many technologies, components and materials of the AlpineF#1Status system to achieve ultra high-precision music reproduction - at an affordable price tag. It is designed to play music tracks at 192kHz / 24bit format, which are widely accessible in many online stores and streaming platforms. High-Res Audio playback of 192kHz / 24bit allows Alpine Status to create a heightened listening experience in the vehicle that emulates the feeling of an intimate recording studio session.
Features
General
- Channel Design: Mono
- Class-D amplification circuit
- Power supply and speaker channel connectors
- Copper-plated chassis
- Top control panel (below top cover)
- Black circuit board
- Non-Shutdown design
- Thermal Protection
- One-sided terminal
- Blue power LED
- Compatible with RUX-KNOB2 bass controller
Specifications
- RMS Power Ratings
- Per Channel into 2 Ohms, 14.4V: 1 x 800W
- Per Channel into 4 Ohms, 14.4V: 1 x 500W
- Sound Tuning
- Subsonic Filter (Subwoofer): 8-40 Hz (-24dB/oct)
- Crossover: Variable LPF: 50-400Hz (-24dB/oct )
- Equalizer (Bass EQ): 0-12dB (fc=50Hz)
General
- Input Sensitivity (RCA Input): Hi: 0.4V - 10V / Low: 0.1V - 4.0V
- Frequency Response (+0/ -3dB: 1W into 4 Ohms): 8Hz – 400Hz
- THD+N (10W into 4 ohms): ≤0.02%
- Damping Factor (@ 10 W into 4 Ohms at 100 Hz): >1500
- Preamp Output (CH-1/2 Input Pass-through, Buffered): 4V max
- Weight: 3.7kg
- Dimensions:
- Width 291 mm
- Height 53.5 mm
- Depth 189.5 mm
